Flow vision FS10 Montage- Und Einstellanleitung Seite 8

Strömungswächter
Inhaltsverzeichnis

Werbung

Sensoradapter TP-... / Sensor adapter TP-...:
Exakte Positionierung des Sensors ist sichergestellt (Arretierungsstift/-Nut)
Correct position of the sensor is ensured (retention pin/locking slot)
Kugelhahn BV-... / Ball valve BV-...:
Exakte Positionierung des Sensors ist sichergestellt (Arretierungsstift/-Nut)
Correct position of the sensor is ensured (retention pin/locking slot)
Anschweißset 05
Anschluss nach DIN ISO 6149
Welding set 05
to DIN ISO 6149
Exakte Positionierung des Sensors ist sichergestellt
(Arretierungsstift/-Nut)
Correct position of the sensor is ensured
(retention pin/locking slot)
8
Downloaded from
www.Manualslib.com
Strömungswächter | FS10
Stecker M12 x 1
plug-in connector M12 x 1
Überwurfmutter G3/4"
cap nut G3/4"
Dichtung: O-Ring 15,3 x 2,2 mm in Anlehnung an DIN ISO 6149
sealing: O-ring 15.3 x 2.2 mm/.602 x .0866 in. following DIN ISO 6149
Stecker M12 x 1
plug-in connector M12 x 1
Überwurfmutter G3/4"
cap nut G3/4"
Dichtung: O-Ring 15,3 x 2,2 mm in Anlehnung an DIN ISO 6149
sealing: O-ring 15.3 x 2.2 mm/.602 x .0866 in. following DIN ISO 6149
Überwurfmutter G3/4"
cap nut G3/4"
Dichtung: O-Ring 15,3 x 2,2 mm in Anlehnung an DIN ISO 6149
sealing: O-ring 15.3 x 2.2 mm/.602 x .0866 in. following DIN ISO 6149
manuals search engine

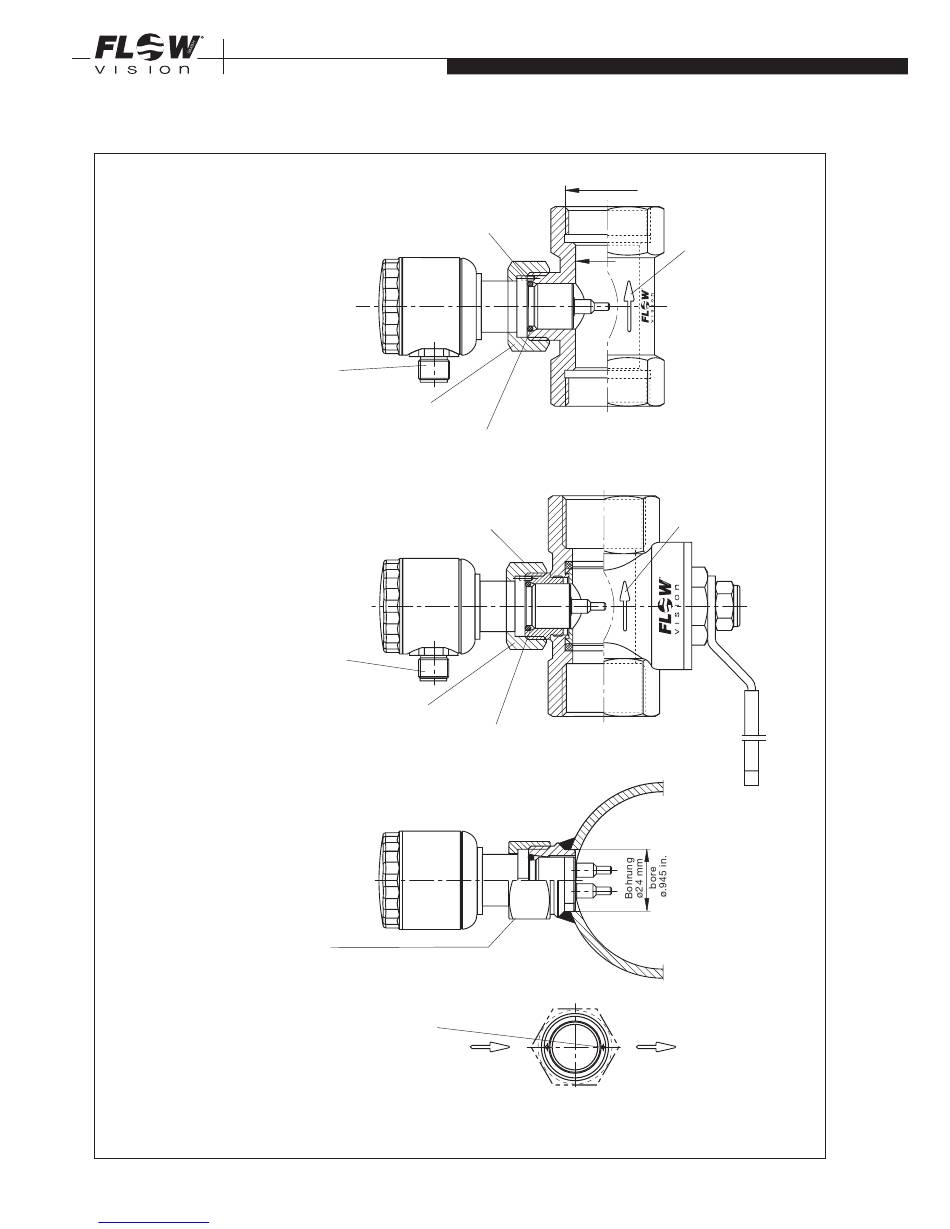

MONTIEREN | INSTALLATION
G
ød
Strömungsrichtung
flow direction
Strömungsrichtung
flow direction
Strömungsrichtung
flow direction
Fig. 5
