Check Voltage - Tietzsch MultiSafe TT 1 Bedienungsanleitung

This is a shortened manual. The entire operating instructions must be followed in all respects.

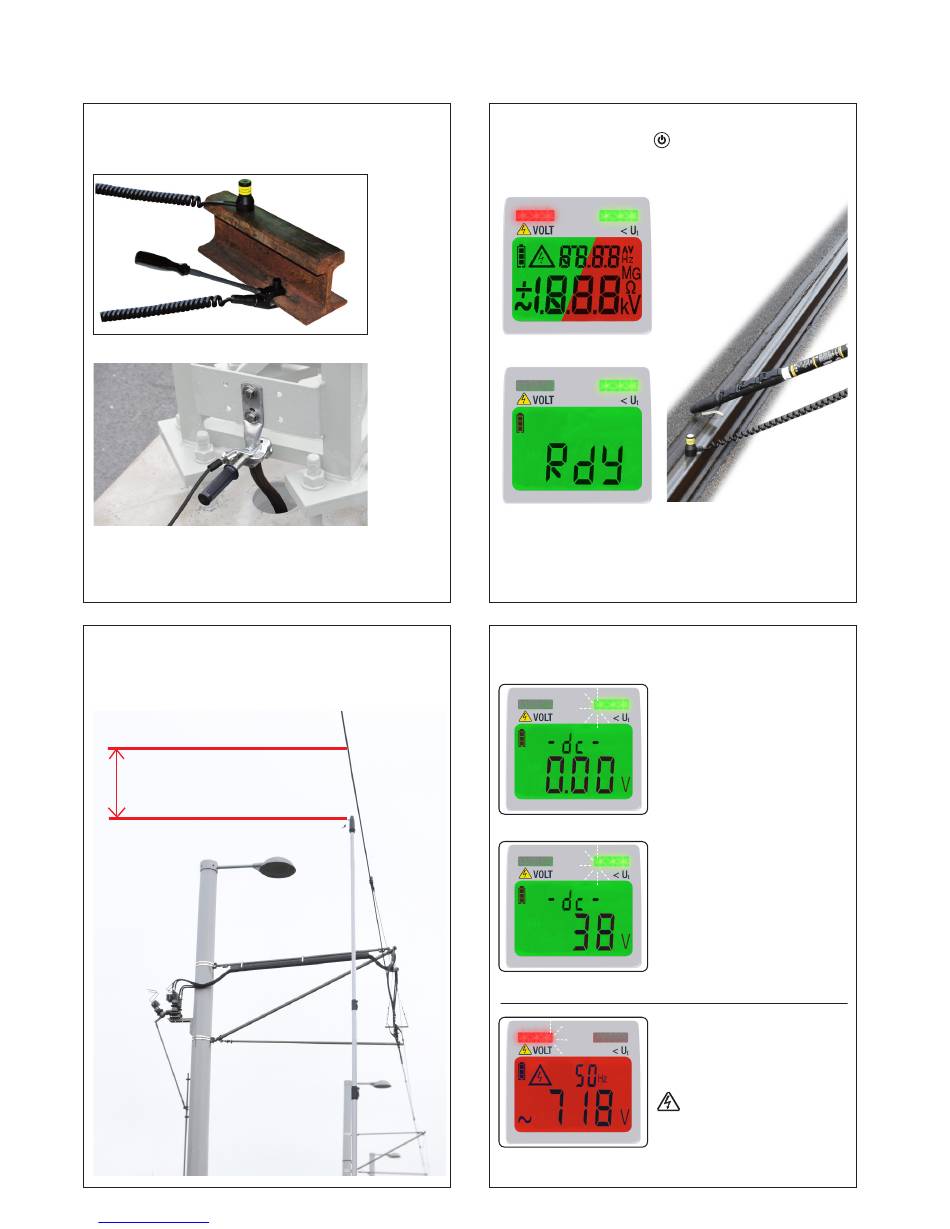

1
Establish contact with the earth
Contact grounded rail with magnet
or rail clamp.
alternative:
Firmly connect universal clamp to earth potential.
3
Extend the telescope and contact
Extend to about ~ 1 m under test height.
Only touch below the limiting disc and hook
the electrode into the overhead line.
1 m
Downloaded from www.Manualslib.com
Quick start Guide for TT 1
manuals search engine
2
Perform self-test
Hold the button , all LCD characters are
displayed and the lights and LEDs change
between red and green.
Contact test electrode to grounded rail.
If „RDY" is displayed, the device is ready for use.
4

Check voltage

No voltage:
Green LED lights up
Display illumination green / off
Display 000V
Interference voltage < U t :
Green LED lights up
Display illumination green
Display voltage value
Operating voltage ≥ U t :
Red LED lights up
Display illumination red
Indication for voltage + Hz
the illuminated display,
acoustic signal appears
Symbol appears on
