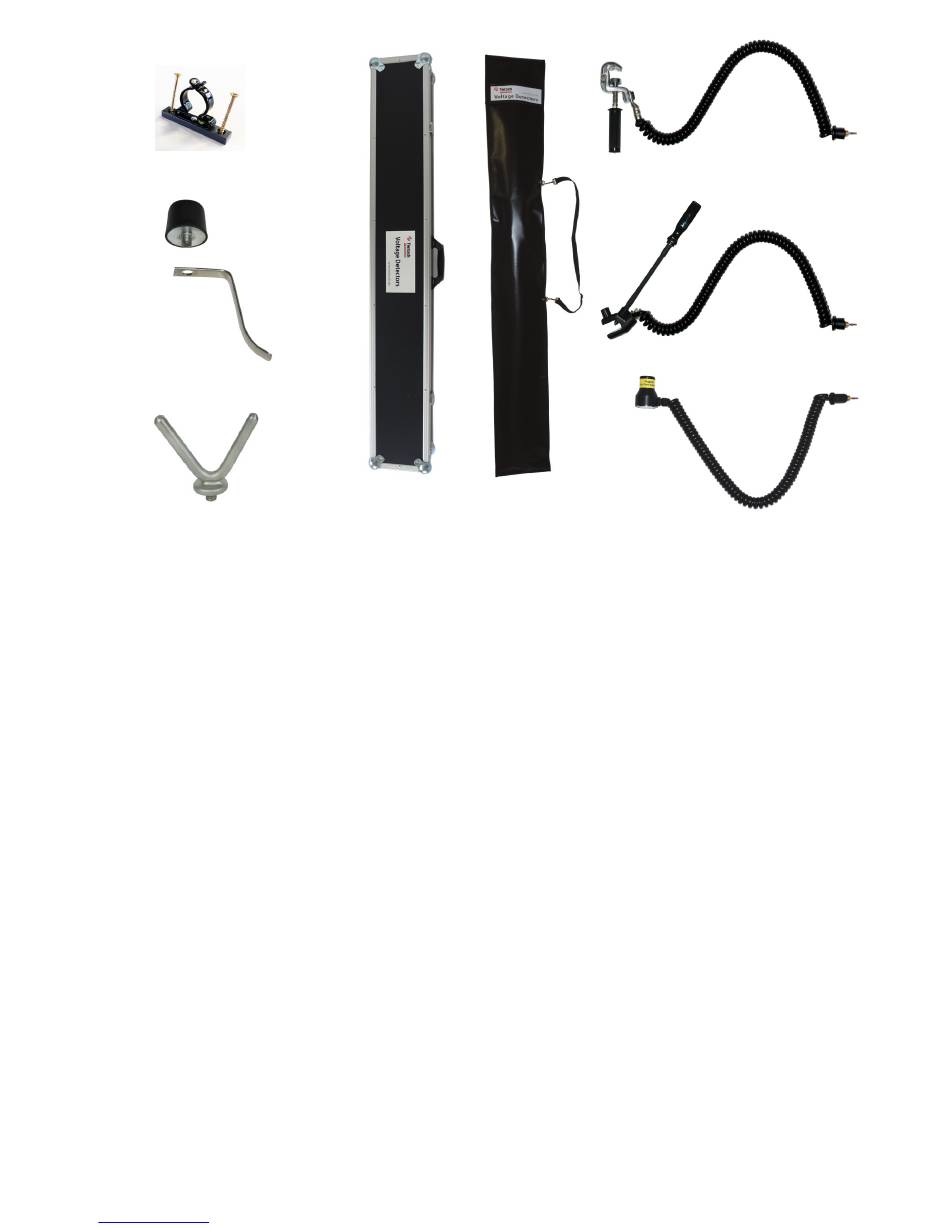

10. Accessories
Spring clip for wall holder
art. 63041 HS36-WAND
Testelectrode TT1 art. 63051
and bumper art. 63031
Testelectrode art. 89325 ELEK-Y-L
11. Technical data
Nominal voltage range:
Frequency:
Input resistance:
Measurement current:
Display:
Limit U t:
Indicator group:
On-time:
Self-test:
Surge voltage strength:
Construction:
Operating temperature:
Power supply:
Protection category:
Design:
Standards
Dimensions / weight
Downloaded from
www.Manualslib.com
Solid box
for size M / L
50 ... 1000 V AC/ 1500 V DC
0 ... 500 Hz
310 kΩ, therefrom 300 kΩ in the moulded cartridge beneath the test electrode
3.2 mA at 1000 V AC/DC
red LED for voltage > Limit U t
green LED for standby / absent of voltage
360° LED light-stripe red / green
two-line LCD with backlight green / red for indication of voltage,
frequency, type of voltage, and battery condition
acoustic signal at > Limit U t
The value of the response voltage U t (display change red/green) is labelled on the name plate
I (optical) and III (acoustic)
15 minutes
function, protective resistors and ground contact
>100 kV (test report available)
for indoor and outdoor installations
–15°C ... + 55°
6 x AA 1,5 V - IEC LR6 alkali-manganese or FR6 Lithium battery
IP 65, device can be used in moist environments
• two-pole voltage tester with fixed connection to ground
• 4 or 6-part GRP-telescopic tube with integrated PUR spiral line,
top tube made of epoxy, insulating strength > 42 kV
• moulded resistor decade approx. 300 kΩ
• display part made of impact-proof, dust proof plastic casing IP 65
with unbreakable display cover
• 1.8 m spiral cable PUR with contact clamp or contact magnet for grounding
at rails or on fixed ball points
Display/function and test engineering in accordance with EN/IEC 61243-3 and 61243-2
Extension and telescopic tube in accordance with EN/IEC 61010-1
Surge voltage strength in accordance with EN/IEC 60071
Size S:
1300 x 120 x 110 mm
Size M:
1610 x 120 x 110 mm
Size L:
1610 x 120 x 110 mm
Size XL: 2100 x 120 x 110 mm
manuals search engine
Replacement cable with universal clamp
art. 89394 TT-LEI-UK
Bag with bolt and
shoulder belt for size
S / M / L / XL
extension length 5,2 m
extension length 5,2 m
extension length 7,2 m
extension length 9,2 m
22
Replacement cable with rail foot clamp
art. 89393 TT-LEI-SK
Replacement cable with magnet
art. 89392 TT-LEI-MA
4,1 kg MA - 5,1 kg UK
3,5 kg MA - 4,3 kg UK
4,5 kg MA - 5,3 kg UK
5,5 kg MA - 6,3 kg UK
