Installation VAV-Universal Retrofit-Set
VRD3-RE2-SET
VAV-Universal Retrofit-Set für den Ersatz von bestehenden
VAV-Geräten diverser Hersteller.
• VRD3-RE2-SET für Luftgeschwindigkeiten bis 12 m/s.
Hinweis
Nur für runde VAV-Boxen geeignet.
Allgemeine Informationen
Anwendung
Das VAV-Universal Retrofit-Set ermöglicht ein effizientes Austauschen
von VAV- und CAV-Geräten diverser Hersteller. Jede Verpackung
beinhaltet alle notwendigen Bestandteile, die für den Umbau benötigt
werden.

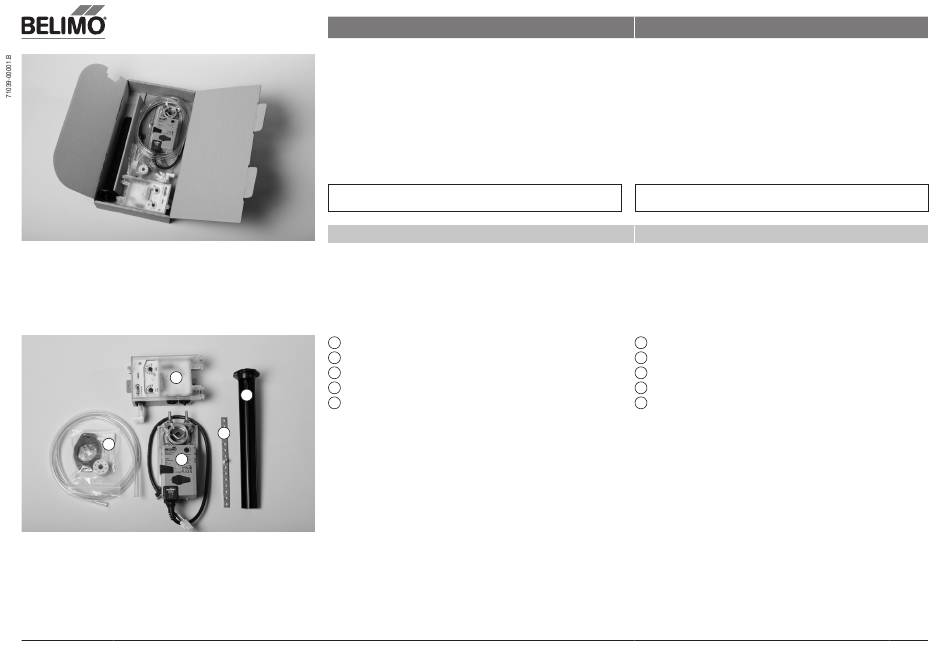

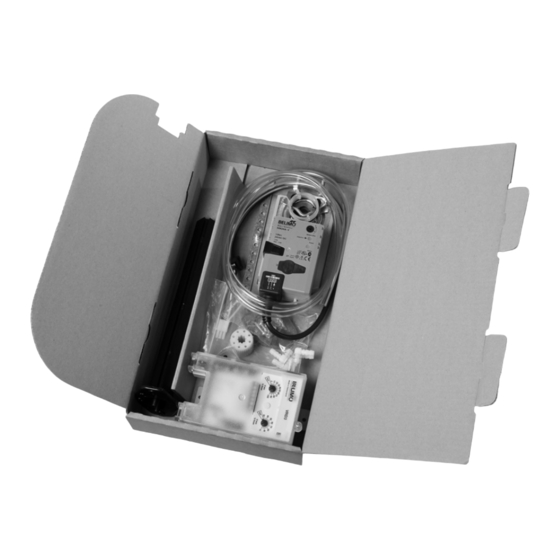

Packungsinhalt
1
VAV-Regler VRD3-RE2
2
Klappenantrieb NM24A-V-RE2
3
Wirkdruckaufnehmer ZPD-RE2
4
Verdrehsicherung
3
5
Formschlusseinsatz 8 x 8 mm
Installationsanleitung
4
Diese Installationsanleitung beschreibt die Anwendung des
VAV-Universal Retrofit-Sets VRD3-RE2-SET. Für detaillierte
Beschreibung verweisen wir auf die separaten Produktedokumentation
des VRD3 und NM24A-V, siehe www.belimo.eu ¦ Dokumentation ¦ Raum-
und Systemanwendungen.
Belimo Automation AG kann zu jeder Zeit, ohne Vorankündigung,
Änderungen und Verbesserungen vornehmen. Aktuelle
Bedienungsanleitung siehe www.belimo.eu
de • Änderungen vorbehalten
de
Installation VAV-Universal Retrofit-Set
VRD3-RE2-SET
VAV-Universal Retrofit Set for utilisation of existing VAV devices
made by various manufacturers.
• VRD3-RE2-SET for air velocity up to 12 m/s.
Note
Suitable for round VAV boxes only.
General Information
Application
The VAV-Universal Retrofit Set makes possible an efficient replacement
of VAV and CAV devices made by various manufacturers. Each package
contains all of the component parts required for making the conversion.
Package contents
1
VAV controller VRD3-RE2
2
Damper actuator NM24A-V-RE2
3
Pick-up device ZPD-RE2
4
Anti-rotation stud
5
Form-fit insert 8 x 8 mm
Installation instructions
These installation instructions describe the application of the VAV-
Universal Retrofit Set VRD3-RE2-SET. For a detailed description, we
draw your attention to the separate product documentation of the VRD3
and NM24A-V, see www.belimo.eu ¦ Documentation ¦ Room and System
Solutions.
Belimo Automation AG can at any time implement changes and
improvements without prior notification. For the current edition of the
operating instructions, see www.belimo.eu
en • Subject to changes
