Data and CE marking

2.5

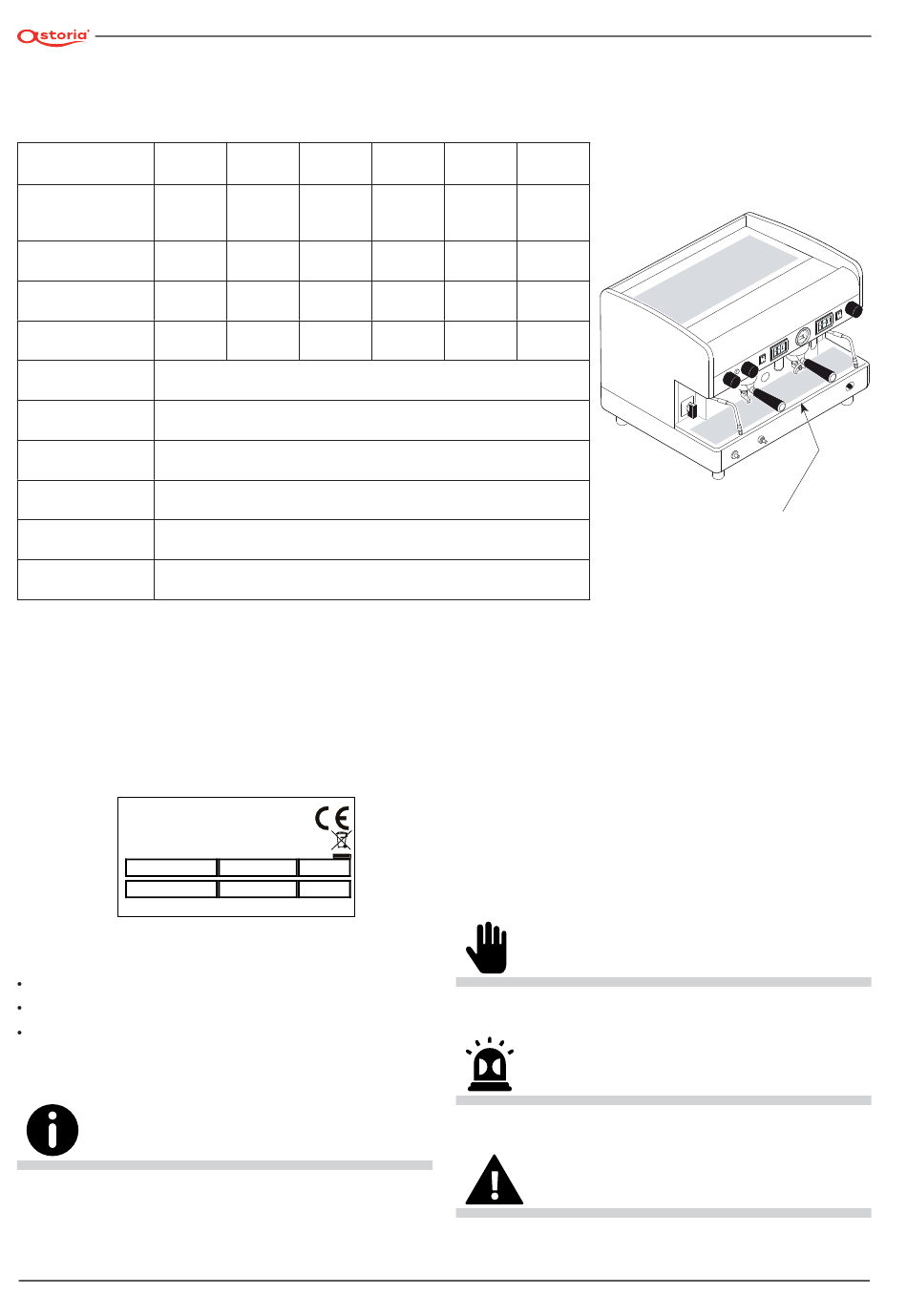

The technical data of the machine is shown in the
following table:
TECHNICAL DATA TABLE JUN
120
Voltage (V) 230-400
240
Frequency (Hz) 50/60
Max power (kW) 2.4 kW
Boiler (l) 5
Safety valve
calibration (bar)
Boiler operating
pressure
Feed water pressure
Coffee dispensing
pressure
Operation mode
temperature
Sound pressure level
According to the Directive 2006/42/EC, the machine is
marked with the CE marking, by which the manufacturer
declares, under its own responsibility, that the machine
is safe for people and things.
The CE nameplate is affixed to the base of the frame
under the drain pan on which the identification data is
reported. Below is an example of the nameplate:
MARCHIO COMMERCIALE
CMA MACCHINE PER CAFFÈ S.r.l.
Via C. Bardini,1 SUSEGANA (TV) - ITALY
Tel. +39.0438.6615 Fax +39.0438.60657
S/N:
V
For any communication with the Manufacturer, al-
ways note the following information:
S/N - machine serial number;
Mod. - machine model
Y - year of manufacture;
The data of the appliance can be seen also on the
label located on the package of the machine.
It is forbidden to remove or damage the nameplate. If it needs
replacing urgently, always exclusively contact the Manufacturer.
32 160
of
1GR COMPACT
120 120
230-400 230-400 230-400
240 240
50/60 50/60 50/60
2.4/3.1/3.3 3.1 3.1/3.9/4.2
6/8 7 10.5/14
1.9 bar
0.8 - 1.4 bar
1,5 - 5 bar MAX
8 - 9 bar
5 - 40°C 95° MAX R.U.
< 70 dB
Y
Mod.
Hz
W
MADE IN ITALY
2GR 3GR 4GR
120
230-400 230-400
240 240
240
50/60 50/60
5.6/6.0 6.6/7.1
17/21 23
3.

STORAGE

The machine is stored by the Manufacturer or the
Distributor.
4.

INSTALLATION

The installation of the machine must be performed
only by the Manufacturer's Qualified Technicians.
During the installation the Qualified Technicians needs to renewal
operations of the water contained in the hydraulic circuits.
The base of the machine support must be perfectly level and
without irregularities.
The electric system must be equipped with a suitable differential
circuit breaker (30 mA).
The CE tag is affixed on the
base of the frame under the
drain pan
