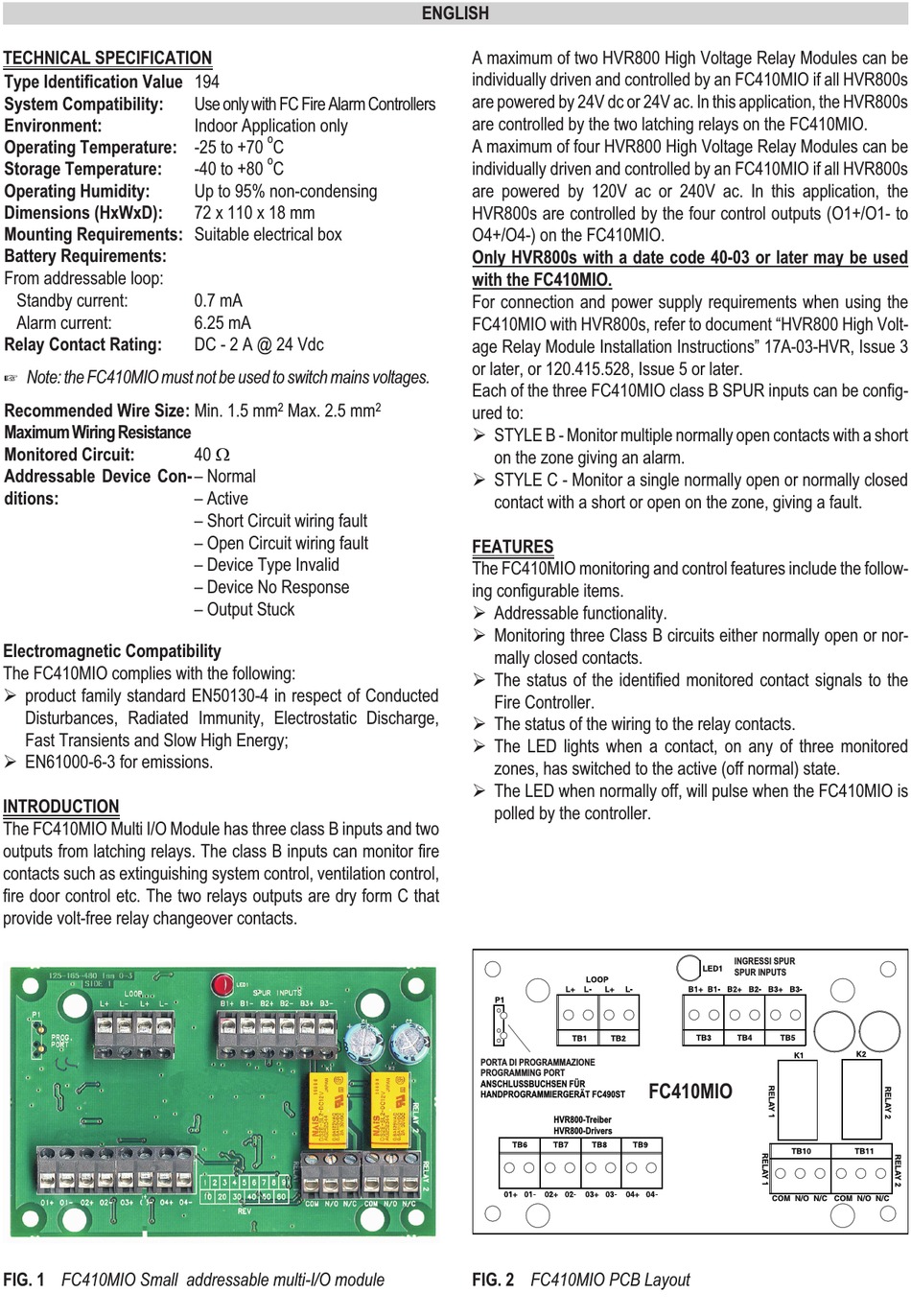

TECHNICAL SPECIFICATION

Type Identification Value 194
System Compatibility:
Environment:
Operating Temperature: -25 to +70
Storage Temperature:
Operating Humidity:
Dimensions (HxWxD):
Mounting Requirements: Suitable electrical box
Battery Requirements:
From addressable loop:
Standby current:
Alarm current:
Relay Contact Rating:
+ Note: the FC410MIO must not be used to switch mains voltages.
Recommended Wire Size: Min. 1.5 mm
Maximum Wiring Resistance
Monitored Circuit:
Addressable Device Con-
ditions:
Electromagnetic Compatibility
The FC410MIO complies with the following:
Ø product family standard EN50130-4 in respect of Conducted
Disturbances, Radiated Immunity, Electrostatic Discharge,
Fast Transients and Slow High Energy;
Ø EN61000-6-3 for emissions.
INTRODUCTION
The FC410MIO Multi I/O Module has three class B inputs and two
outputs from latching relays. The class B inputs can monitor fire
contacts such as extinguishing system control, ventilation control,
fire door control etc. The two relays outputs are dry form C that
provide volt-free relay changeover contacts.
FIG. 1 FC410MIO Small addressable multi-I/O module
Use only with FC Fire Alarm Controllers
Indoor Application only
o
C
o
-40 to +80 C
Up to 95% non-condensing
72 x 110 x 18 mm
0.7 mA
6.25 mA
DC - 2 A @ 24 Vdc
2 Max. 2.5 mm
W
40
– Normal
– Active
– Short Circuit wiring fault
– Open Circuit wiring fault
– Device Type Invalid
– Device No Response
– Output Stuck
ENGLISH
A maximum of two HVR800 High Voltage Relay Modules can be
individually driven and controlled by an FC410MIO if all HVR800s
are powered by 24V dc or 24V ac. In this application, the HVR800s
are controlled by the two latching relays on the FC410MIO.
A maximum of four HVR800 High Voltage Relay Modules can be
individually driven and controlled by an FC410MIO if all HVR800s
are powered by 120V ac or 240V ac. In this application, the
HVR800s are controlled by the four control outputs (O1+/O1- to
O4+/O4-) on the FC410MIO.
Only HVR800s with a date code 40-03 or later may be used
with the FC410MIO.
For connection and power supply requirements when using the
FC410MIO with HVR800s, refer to document "HVR800 High Volt-
age Relay Module Installation Instructions" 17A-03-HVR, Issue 3
or later, or 120.415.528, Issue 5 or later.
Each of the three FC410MIO class B SPUR inputs can be config-
2
ured to:
Ø STYLE B - Monitor multiple normally open contacts with a short
on the zone giving an alarm.
Ø STYLE C - Monitor a single normally open or normally closed
contact with a short or open on the zone, giving a fault.
FEATURES
The FC410MIO monitoring and control features include the follow-
ing configurable items.
Ø Addressable functionality.
Ø Monitoring three Class B circuits either normally open or nor-
mally closed contacts.
Ø The status of the identified monitored contact signals to the
Fire Controller.
Ø The status of the wiring to the relay contacts.
Ø The LED lights when a contact, on any of three monitored
zones, has switched to the active (off normal) state.
Ø The LED when normally off, will pulse when the FC410MIO is
polled by the controller.
PORTA DI PROGRAMMAZIONE
PROGRAMMING PORT
ANSCHLUSSBUCHSEN FÜR
HANDPROGRAMMIERGERÄT FC490ST
FIG. 2 FC410MIO PCB Layout
FC410MIO
HVR800-Treiber
HVR800-Drivers
INGRESSI SPUR
SPUR INPUTS
