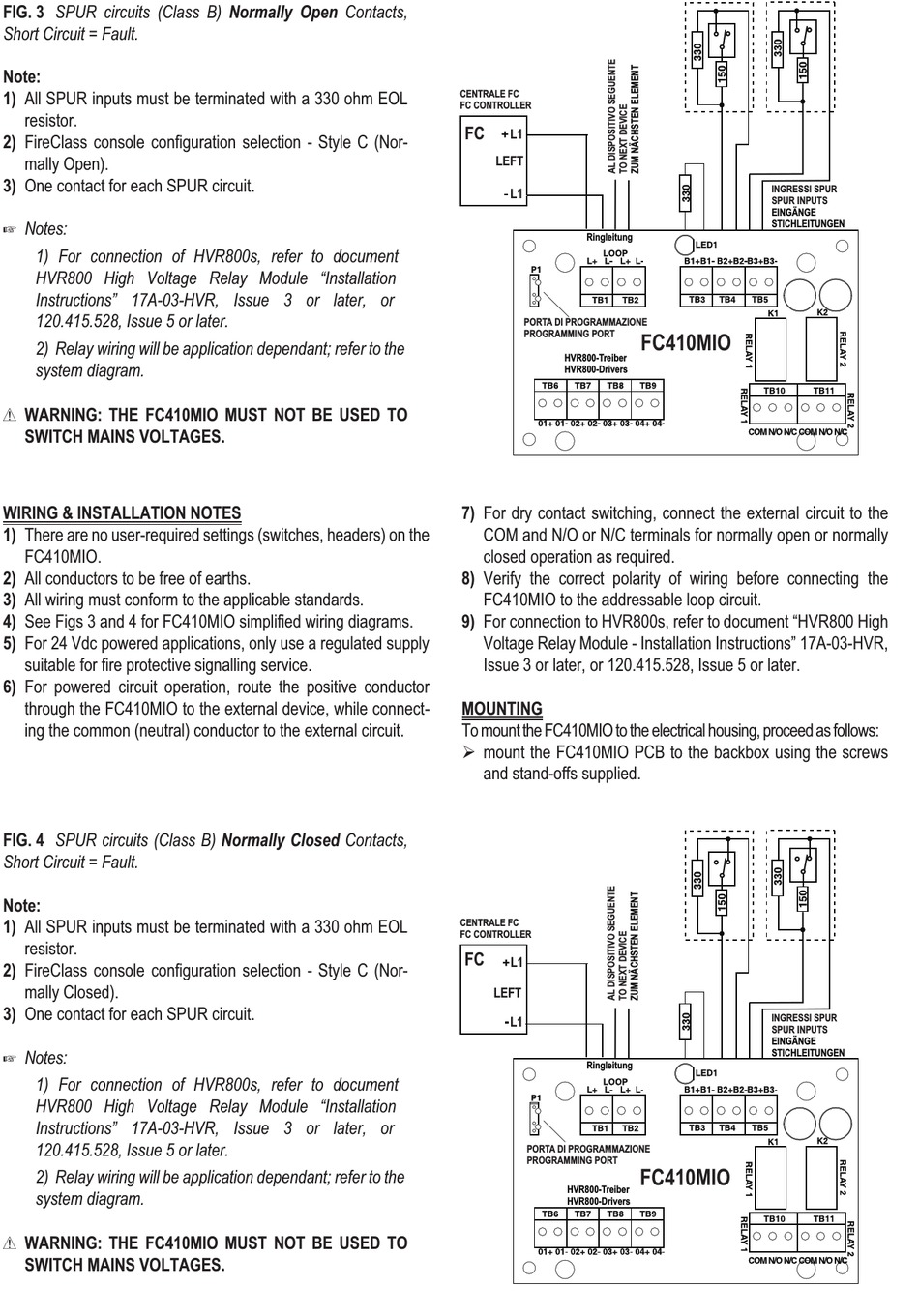

FIG. 3 SPUR circuits (Class B) Normally Open Contacts,
Short Circuit = Fault.
Note:
1) All SPUR inputs must be terminated with a 330 ohm EOL
resistor.
2) FireClass console configuration selection - Style C (Nor-
mally Open).
3) One contact for each SPUR circuit.
+ Notes:
1) For connection of HVR800s, refer to document
HVR800 High Voltage Relay Module "Installation
Instructions" 17A-03-HVR, Issue 3 or later, or
120.415.528, Issue 5 or later.
2) Relay wiring will be application dependant; refer to the
system diagram.
! WARNING: THE FC410MIO MUST NOT BE USED TO
SWITCH MAINS VOLTAGES.
WIRING & INSTALLATION NOTES
1) There are no user-required settings (switches, headers) on the
FC410MIO.
2) All conductors to be free of earths.
3) All wiring must conform to the applicable standards.
4) See Figs 3 and 4 for FC410MIO simplified wiring diagrams.
5) For 24 Vdc powered applications, only use a regulated supply
suitable for fire protective signalling service.
6) For powered circuit operation, route the positive conductor
through the FC410MIO to the external device, while connect-
ing the common (neutral) conductor to the external circuit.
FIG. 4 SPUR circuits (Class B) Normally Closed Contacts,
Short Circuit = Fault.
Note:
1) All SPUR inputs must be terminated with a 330 ohm EOL
resistor.
2) FireClass console configuration selection - Style C (Nor-
mally Closed).
3) One contact for each SPUR circuit.
+ Notes:
1) For connection of HVR800s, refer to document
HVR800 High Voltage Relay Module "Installation
Instructions" 17A-03-HVR, Issue 3 or later, or
120.415.528, Issue 5 or later.
2) Relay wiring will be application dependant; refer to the
system diagram.
! WARNING: THE FC410MIO MUST NOT BE USED TO
SWITCH MAINS VOLTAGES.
CENTRALE FC
FC CONTROLLER
FC
L1
LEFT
L1
Ringleitung
PORTA DI PROGRAMMAZIONE
PROGRAMMING PORT
HVR800-Treiber
HVR800-Drivers
7) For dry contact switching, connect the external circuit to the
COM and N/O or N/C terminals for normally open or normally
closed operation as required.
8) Verify the correct polarity of wiring before connecting the
FC410MIO to the addressable loop circuit.
9) For connection to HVR800s, refer to document "HVR800 High
Voltage Relay Module - Installation Instructions" 17A-03-HVR,
Issue 3 or later, or 120.415.528, Issue 5 or later.
MOUNTING
To mount the FC410MIO to the electrical housing, proceed as follows:
Ø mount the FC410MIO PCB to the backbox using the screws
and stand-offs supplied.
CENTRALE FC
FC CONTROLLER
FC
L1
LEFT
L1
Ringleitung
PORTA DI PROGRAMMAZIONE
PROGRAMMING PORT
HVR800-Treiber
HVR800-Drivers
INGRESSI SPUR
SPUR INPUTS
EINGÄNGE
STICHLEITUNGEN
FC410MIO
INGRESSI SPUR
SPUR INPUTS
EINGÄNGE
STICHLEITUNGEN
FC410MIO
