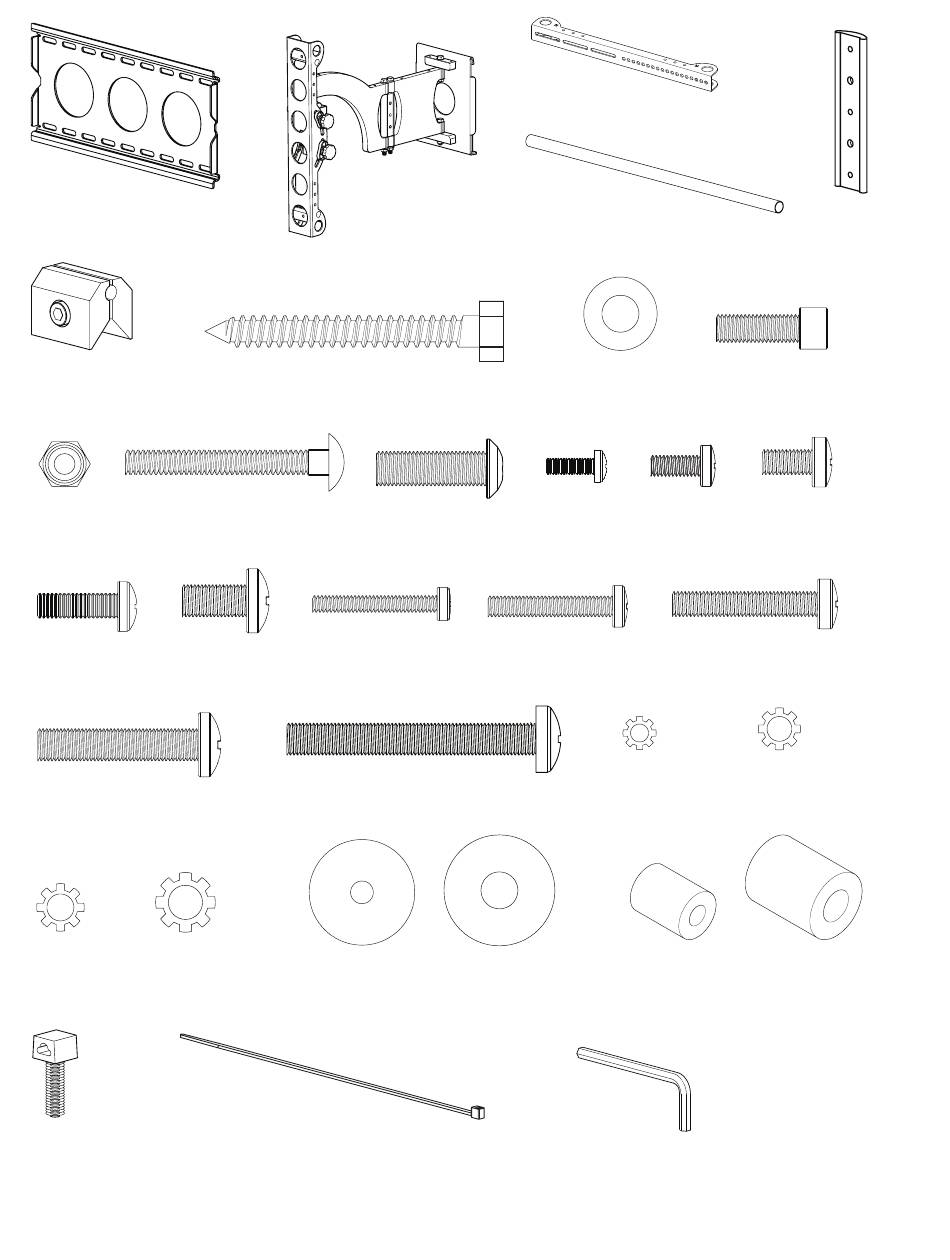

Sanus Systems VMAA26 Montageanleitung Seite 7

[03] x 2
[01] x 1 [04] x 2 [05] x 1
[02] x 1
1/4-20 x 0.75 in.
[06] x 4
[07] x 4 [08] x 4
[09] x 2
M4 x 12mm M6 x 12mm
M5 x 12mm
1/4-20 x 2.0 in.
1/4-20
5/16-18 x 1 in.
[10] x 4 [11] x 4 [12] x 3 [15] x 4
[13] x 4 [14] x 4
M4 x 30mm
M5 x 30mm M6 x 35mm
M6 x 20mm M8 x 16mm
[16] x 4 [18] x 4 [19] x 4 [20] x 4
[17] x 4
M4 M5
M8 x 60mm
M8 x 40mm
[22] x 4 [23] x 4 [24] x 4
[21] x 4
M4 / M5 M6 / M8
M6
M8
M4 / M5 M6 / M8
[26] x 4
[25] x 4 [27] x 8 [30] x 4
[28] x 4 [29] x 4
7/32 in.
[32] x 10 [33] x 1
[31] x 7
6901-170017 <00>
