6.6 Installation with CUBIC6L-CUBIC6LG

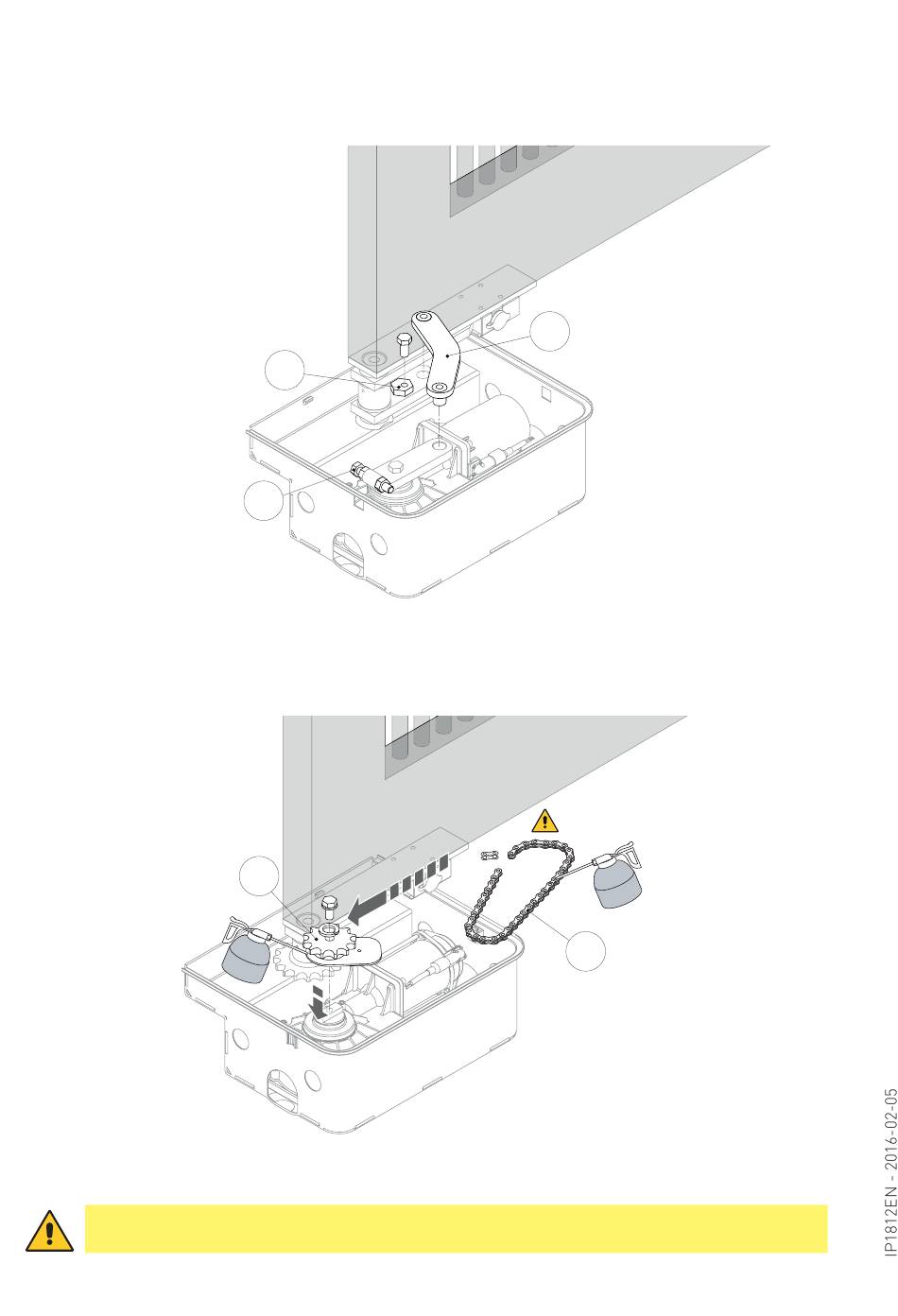

Insert lever [A] on the gearmotor and position the mechanical stop [B] and [C] and adjust it, as
shown in the figure.
NOTE: the figure shows the motor installed on the right door wing.
A
B
C
6.7 Installation with CUBIC6TC
Insert pinion [A] and join the two pinions by means of the chain [B], as shown in the figure.
Lubricate the chain and the lever mechanism as indicated in the figure.
A
B
WARNING: fasten the motor to the foundation case after connecting the chain.
