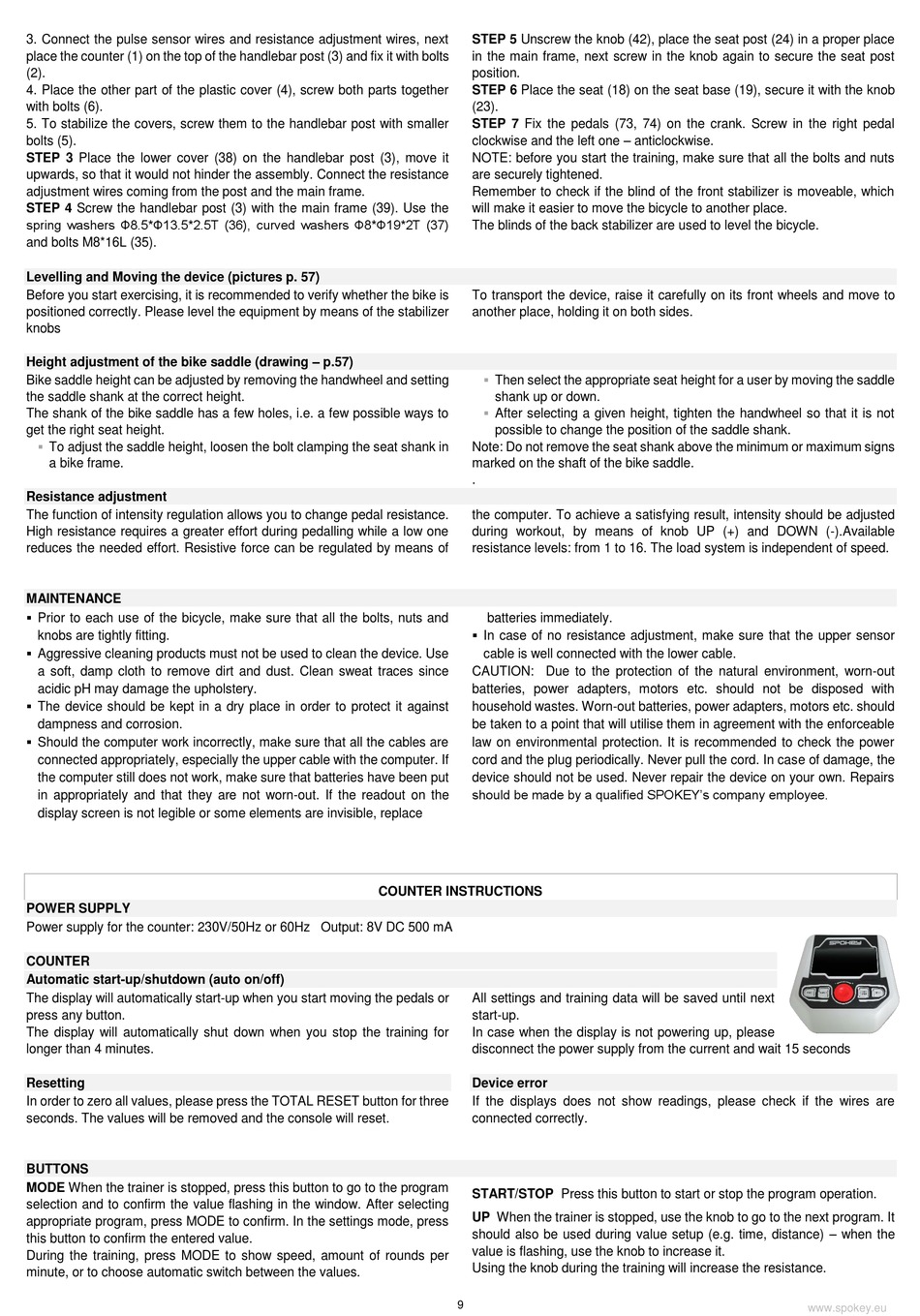

3. Connect the pulse sensor wires and resistance adjustment wires, next
place the counter (1) on the top of the handlebar post (3) and fix it with bolts
(2).
4. Place the other part of the plastic cover (4), screw both parts together
with bolts (6).
5. To stabilize the covers, screw them to the handlebar post with smaller
bolts (5).
STEP 3 Place the lower cover (38) on the handlebar post (3), move it
upwards, so that it would not hinder the assembly. Connect the resistance
adjustment wires coming from the post and the main frame.
STEP 4 Screw the handlebar post (3) with the main frame (39). Use the
spring washers Ф8.5*Ф13.5*2.5T (36), curved washers Ф8*Ф19*2T (37)
and bolts M8*16L (35).
Levelling and Moving the device (pictures p. 57)
Before you start exercising, it is recommended to verify whether the bike is
positioned correctly. Please level the equipment by means of the stabilizer
knobs
Height adjustment of the bike saddle (drawing – p.57)
Bike saddle height can be adjusted by removing the handwheel and setting
the saddle shank at the correct height.
The shank of the bike saddle has a few holes, i.e. a few possible ways to
get the right seat height.

To adjust the saddle height, loosen the bolt clamping the seat shank in
a bike frame.
Resistance adjustment
The function of intensity regulation allows you to change pedal resistance.
High resistance requires a greater effort during pedalling while a low one
reduces the needed effort. Resistive force can be regulated by means of

MAINTENANCE

 Prior to each use of the bicycle, make sure that all the bolts, nuts and
knobs are tightly fitting.
 Aggressive cleaning products must not be used to clean the device. Use
a soft, damp cloth to remove dirt and dust. Clean sweat traces since
acidic pH may damage the upholstery.
 The device should be kept in a dry place in order to protect it against
dampness and corrosion.
 Should the computer work incorrectly, make sure that all the cables are
connected appropriately, especially the upper cable with the computer. If
the computer still does not work, make sure that batteries have been put
in appropriately and that they are not worn-out. If the readout on the
display screen is not legible or some elements are invisible, replace

POWER SUPPLY

Power supply for the counter: 230V/50Hz or 60Hz Output: 8V DC 500 mA
COUNTER
Automatic start-up/shutdown (auto on/off)
The display will automatically start-up when you start moving the pedals or
press any button.
The display will automatically shut down when you stop the training for
longer than 4 minutes.
Resetting
In order to zero all values, please press the TOTAL RESET button for three
seconds. The values will be removed and the console will reset.
BUTTONS
MODE When the trainer is stopped, press this button to go to the program
selection and to confirm the value flashing in the window. After selecting
appropriate program, press MODE to confirm. In the settings mode, press
this button to confirm the entered value.
During the training, press MODE to show speed, amount of rounds per
minute, or to choose automatic switch between the values.
STEP 5 Unscrew the knob (42), place the seat post (24) in a proper place
in the main frame, next screw in the knob again to secure the seat post
position.
STEP 6 Place the seat (18) on the seat base (19), secure it with the knob
(23).
STEP 7 Fix the pedals (73, 74) on the crank. Screw in the right pedal
clockwise and the left one – anticlockwise.
NOTE: before you start the training, make sure that all the bolts and nuts
are securely tightened.
Remember to check if the blind of the front stabilizer is moveable, which
will make it easier to move the bicycle to another place.
The blinds of the back stabilizer are used to level the bicycle.
To transport the device, raise it carefully on its front wheels and move to
another place, holding it on both sides.

Then select the appropriate seat height for a user by moving the saddle
shank up or down.

After selecting a given height, tighten the handwheel so that it is not
possible to change the position of the saddle shank.
Note: Do not remove the seat shank above the minimum or maximum signs
marked on the shaft of the bike saddle.
.
the computer. To achieve a satisfying result, intensity should be adjusted
during workout, by means of knob UP (+) and DOWN (-).Available
resistance levels: from 1 to 16. The load system is independent of speed.
batteries immediately.
 In case of no resistance adjustment, make sure that the upper sensor
cable is well connected with the lower cable.
CAUTION: Due to the protection of the natural environment, worn-out
batteries, power adapters, motors etc. should not be disposed with
household wastes. Worn-out batteries, power adapters, motors etc. should
be taken to a point that will utilise them in agreement with the enforceable
law on environmental protection. It is recommended to check the power
cord and the plug periodically. Never pull the cord. In case of damage, the
device should not be used. Never repair the device on your own. Repairs
should be made by a qualified SPOKEY's company employee.
COUNTER INSTRUCTIONS
All settings and training data will be saved until next
start-up.
In case when the display is not powering up, please
disconnect the power supply from the current and wait 15 seconds
Device error
If the displays does not show readings, please check if the wires are
connected correctly.
START/STOP Press this button to start or stop the program operation.
UP When the trainer is stopped, use the knob to go to the next program. It
should also be used during value setup (e.g. time, distance) – when the
value is flashing, use the knob to increase it.
Using the knob during the training will increase the resistance.
9
