I/O Panel
I/O P
I/O P
anel
anel
1

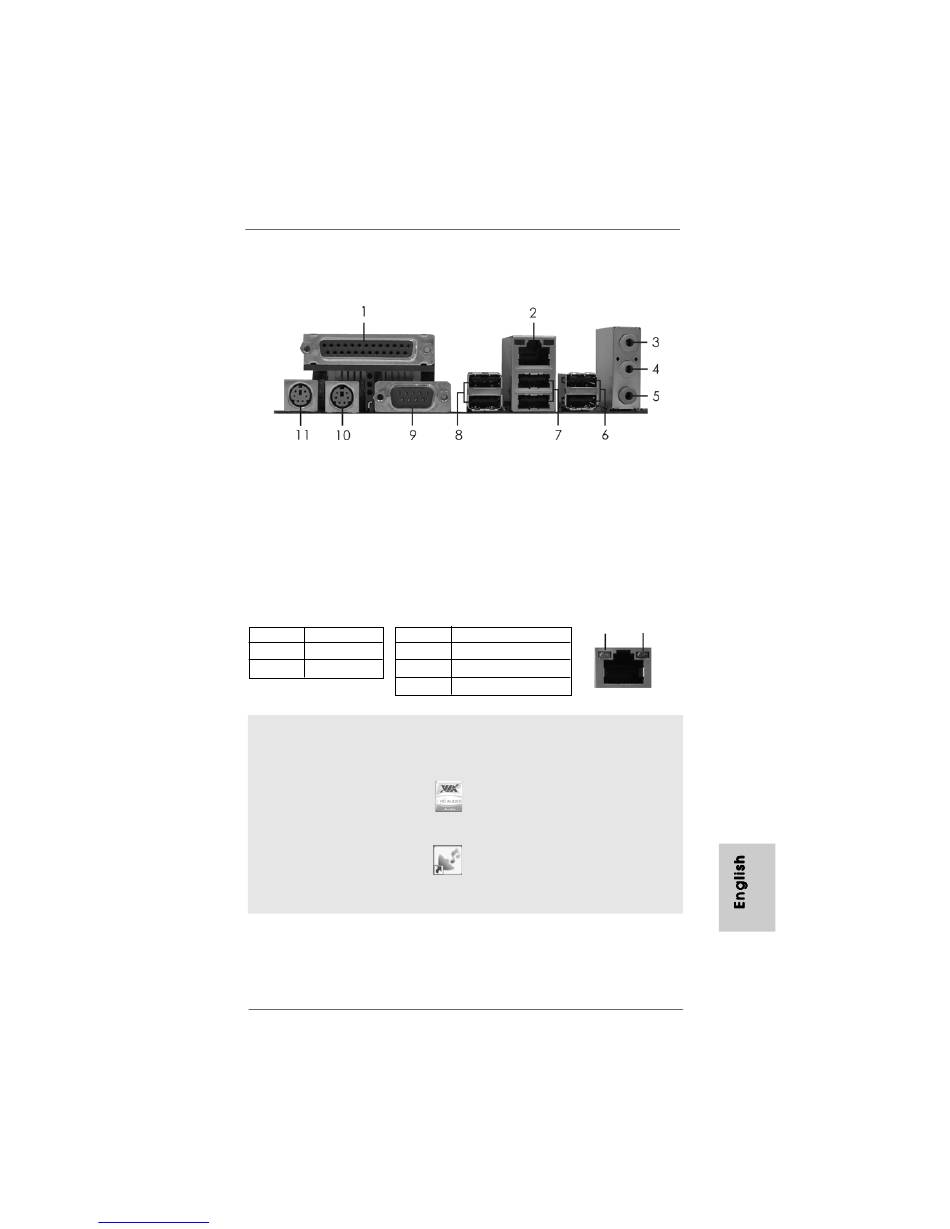

Parallel Port
* 2
LAN RJ-45 Port
3
Line In (Light Blue)
4
Line Out (Lime)
5
Microphone (Pink)
6
USB 2.0 Ports (USB45)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED
Status
Description
Off
No Activity
Blinking
Data Activity
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find "VIA HD Audio Deck" tool on
your system. Please follow below instructions according to the OS you install.
For Windows
®
XP / XP 64-bit OS:
Please click "VIA HD Audio Deck" icon
select "2 Channel" or "4 Channel". Click "Power" to save your change.
®
For Windows
7 / 7 64-bit / Vista
Please click "VIA HD Audio Deck" icon
on the bottom. In "Advanced Options" screen, select "Independent Headphone", and click
"OK" to save your change.
ASRock
manuals search engine
7
USB 2.0 Ports (USB01)
8
USB 2.0 Ports (USB23)
9
Serial Port: COM1
10
PS/2 Keyboard Port (Purple)
11
PS/2 Mouse Port (Green)
SPEED LED
Status
Description
Off
10Mbps connection
Orange
100Mbps connection
Green
1Gbps connection
, and click "Speaker". Then you are allowed to
TM
TM
/ Vista
64-bit OS:
, and click "Advanced Options" on the left side
M3A UCC
Motherboard
ACT/LINK
SPEED
LED
LED
LAN Port
