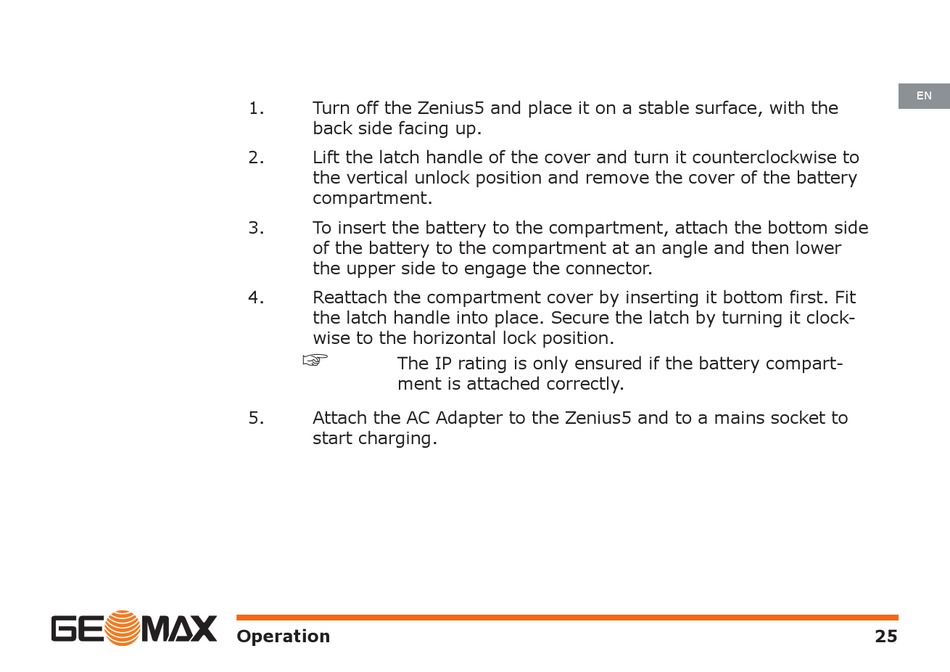

1. Turn off the Zenius5 and place it on a stable surface, with the
back side facing up.
2. Lift the latch handle of the cover and turn it counterclockwise to
the vertical unlock position and remove the cover of the battery
compartment.
3. To insert the battery to the compartment, attach the bottom side
of the battery to the compartment at an angle and then lower
the upper side to engage the connector.
4. Reattach the compartment cover by inserting it bottom first. Fit
the latch handle into place. Secure the latch by turning it clock-
wise to the horizontal lock position.
☞
The IP rating is only ensured if the battery compart-
ment is attached correctly.
5. Attach the AC Adapter to the Zenius5 and to a mains socket to
start charging.
