MOUNTING THE DOMESTIC WATER STATION

The built-in rotary flange for the domestic water station is supplied with bayonet drill holes. The necessary
seals and screws for this domestic water station have already been mounted.
Do not unscrew the screws!
/ Insert the four flange screw heads through the bayonet drill holes on the built-in rotary flange (see
fig. 5 I).
/ Turn the domestic water station in a clockwise direction as far as it will go (see fig. 5 II).
/ Tighten the two screws in the front alternately with an Allen key (see fig. 5 III).
Select the torque (approx. 6 Nm) so that the gasket closes and the domestic water
station is not damaged or strained!
The unit may only be installed by skilled personnel. The chapter 4.1 " INTENDED
USE" must always be observed!
The pipes must be able to safely support the domestic water station. Otherwise mechanical damage or
fractures/bursts can occur in the pipes. This can result in major water damage.
Persons close to the domestic water station are exposed to a health risk due to the large quantities of wa-
ter released.
Therefore, if necessary, the pipes must be additionally fixed or supported.
For convenient operation and maintenance it is absolutely necessary to ensure the given spacings. A space
of at least 250 mm should be maintained above and below the domestic water station. These distances are
necessary to be able to properly carry out the backwashing.
The chapters 6.4 „BACKWASH WATER DISCHARGE OPTIONS" and 7.3 „BACKWASHING" must
always be observed!
I

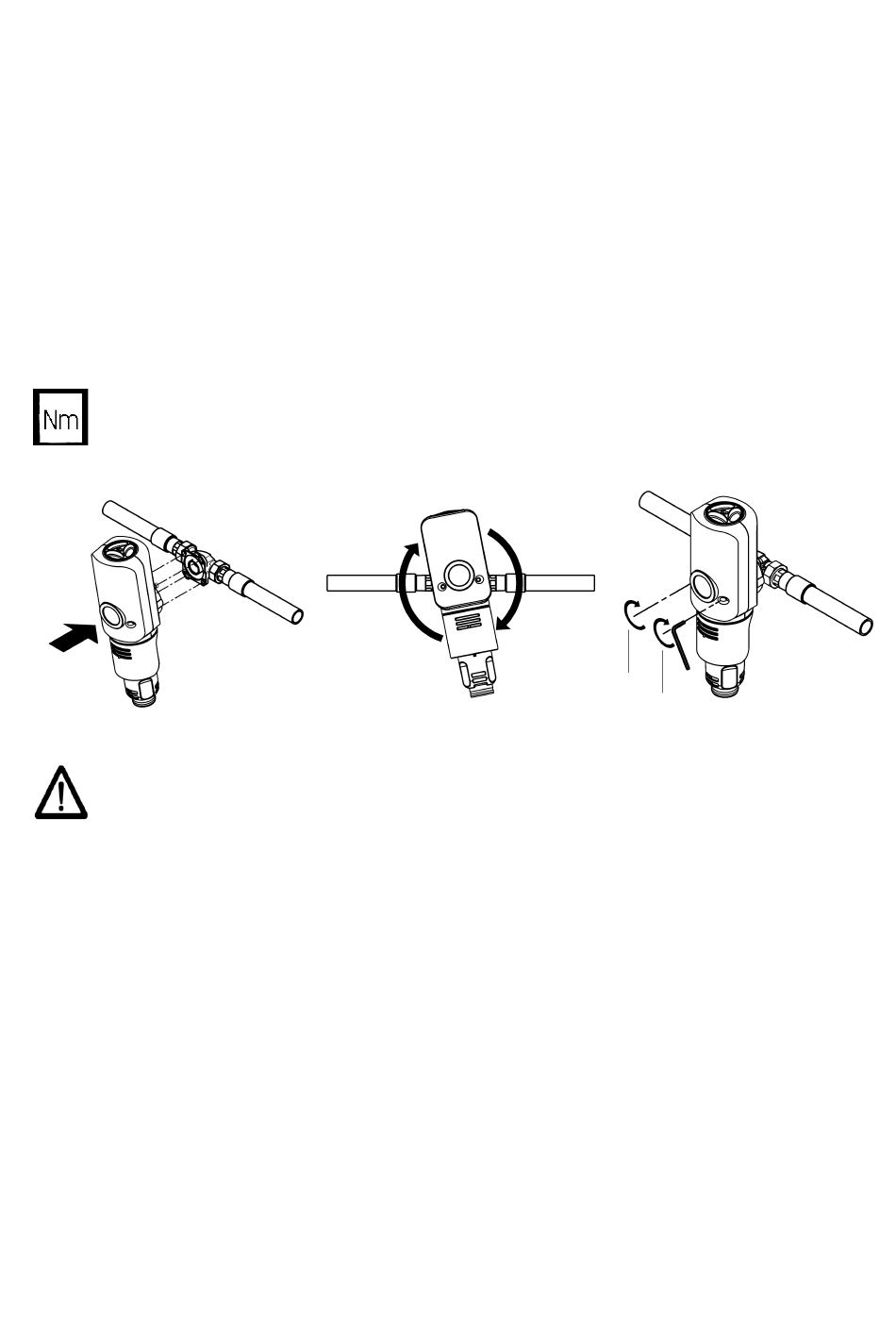

Fig. 5: Installing the domestic water station
