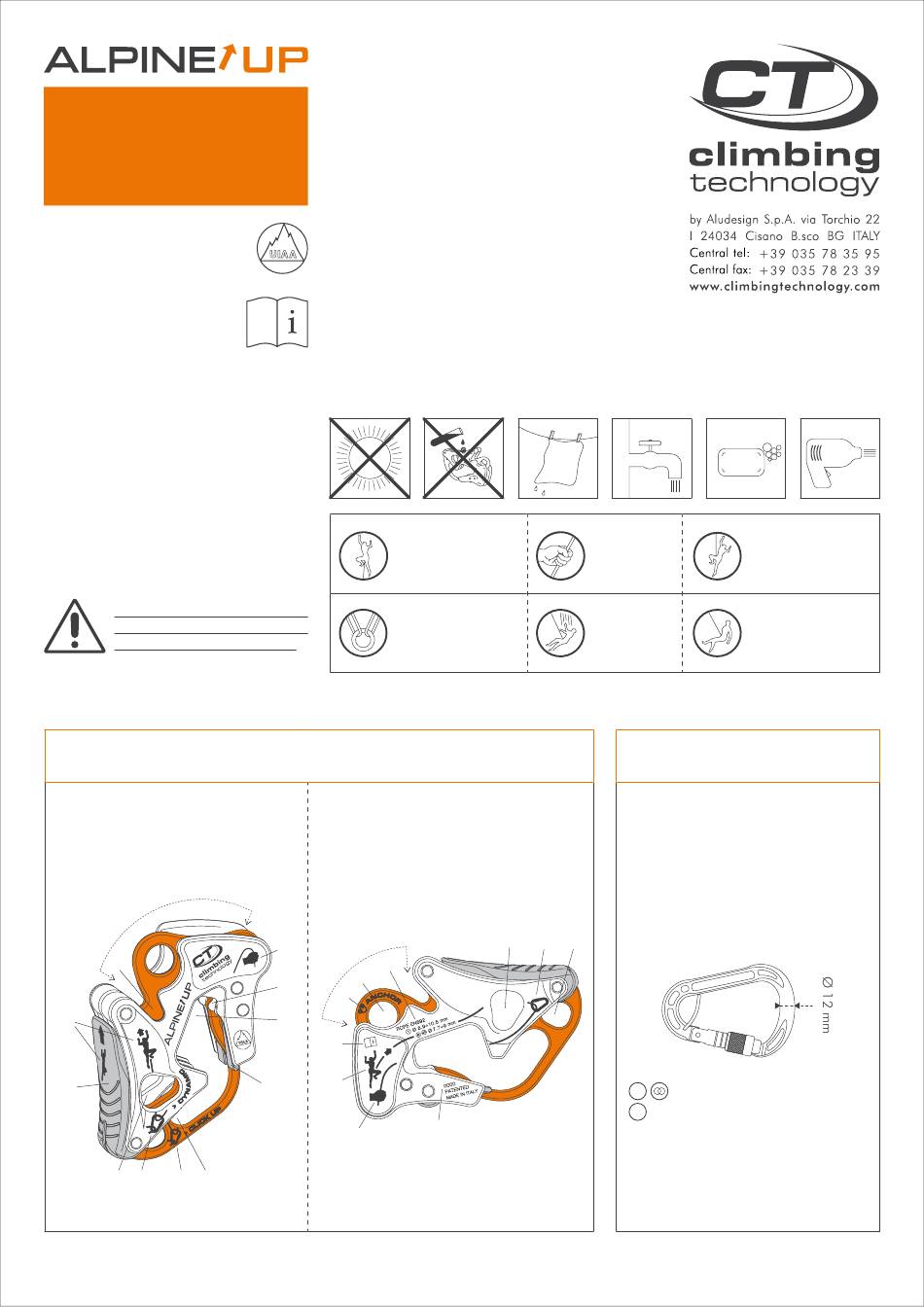

Belay / rappel device
IT
Assicuratore / discensore
Fr
Assureur / Descendeur
DE
Sicherungs / Abseilgerät
ES
Asegurador / Descensor
ref. No. 2D651
175 g
PATENTED
MADE IN ITALY
Activities involving the use of this device are
potentially dangerous. You are responsible for
your own actions and decisions. Before using
it, you must read and understand all user in-
structions and warnings that accompany it
and familiarize yourself with its capabilities
and limitations. We recommend a specific
training for the proper use. Every climber
should understand and accept the risk invol-
ved in climbing.
FAILURE TO RESPECT ANY OF
THESE WARNINGS CAN RESULT
IN SEVERE INJURY OR DEATH!
B | NOMENCLATURE / MARKING
SIDE a
This side presents the indications for
belaying the leader in CLICK UP or
DYNAMIC MODE and for abseiling.
B
A
4
H
G
3
2
F
WEB_IST12-2D651CT rev.2 11-12
leader; primo di
cordata; premier;
Vorstieg; prime.
anchor; ancoraggio;
amarrage; anclaje;
anschlagpunkt.
SIDE B
This side presents the indications for belaying
1 or 2 seconds simultaneously and indepen-
dently.
1
B
6
I
C
5
D
11
10
E
8
9
hand; mano;
main; hand;
mano.
fall; caduta;
chute; sturz;
caida.
G
7
L
- 1 -
H2O
SOAP
second; secondo;
second; segundo;
Nachsteiger.
lowering; calata;
descente; Abstieg;
descenso.
B | COMPATIBILITY
YOU MUST USE: our hot forged light
alloy karabiner Concept SGL with hard
coat anodization. It presents a spring bar
which prevents the possibility of the cross
loading. You must use it, connected to
the belay loop of the harness, during the
use in CLICK UP or DYNAMIC MODE.
During the belaying of 1-2 seconds, you
must use it on the anchor point (I).
FOr USE WITh rOPES EN892
half / twin ropes ø 7.7 ÷ 9 mm
½
single rope ø 8.9 ÷ 10.5 mm.
1
aTTENTION! The term "rope" can mean
one or two strands of rope. When using
half or twin ropes, each strand of rope
must pass through its separate rope slot.
The term "Prusik" is used for indicate any
self-locking knot for climbing.
www.climbingtechnology.com
MAX
30°C
