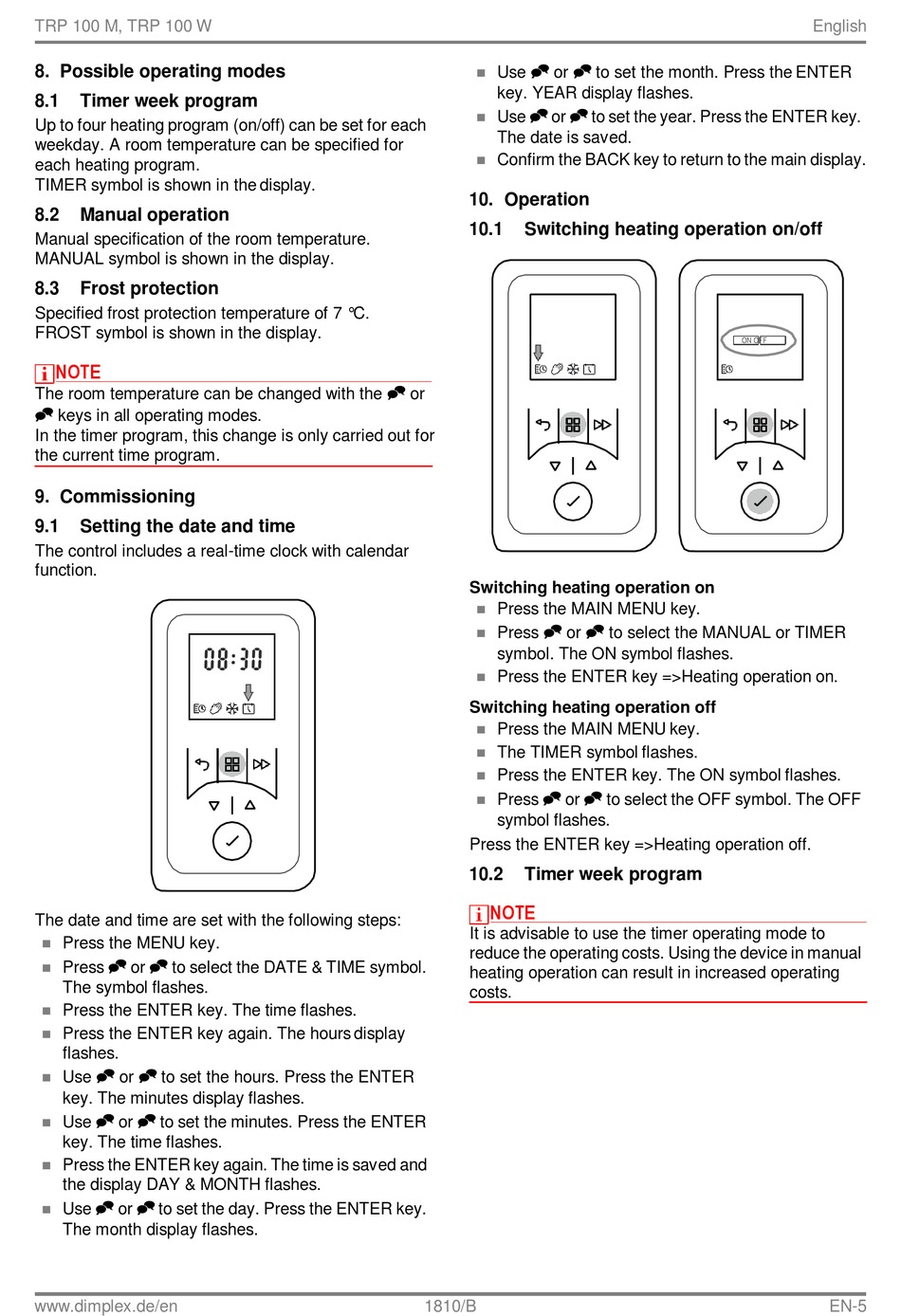

TRP 100 M, TRP 100 W
8. Possible operating modes
8.1 Timer week program
Up to four heating program (on/off) can be set for each
weekday. A room temperature can be specified for
each heating program.
TIMER symbol is shown in the display.
8.2 Manual operation
Manual specification of the room temperature.
MANUAL symbol is shown in the display.
8.3 Frost protection
Specified frost protection temperature of 7 °C.
FROST symbol is shown in the display.
NOTE NOTE
The room temperature can be changed with the

keys in all operating modes.
In the timer program, this change is only carried out for
the current time program.
9. Commissioning
9.1 Setting the date and time
The control includes a real-time clock with calendar
function.
The date and time are set with the following steps:
 Press the MENU key.
 
 Press or to select the DATE & TIME symbol.
The symbol flashes.
 Press the ENTER key. The time flashes.
 Press the ENTER key again. The hours display
flashes.
 
Use or to set the hours. Press the ENTER

key. The minutes display flashes.
 
Use or to set the minutes. Press the ENTER

key. The time flashes.
 Press the ENTER key again. The time is saved and
the display DAY & MONTH flashes.
 
 Use or to set the day. Press the ENTER key.
The month display flashes.
www.dimplex.de/en

 Use or
key. YEAR display flashes.

 Use or
The date is saved.
 Confirm the BACK key to return to the main display.
10. Operation
10.1 Switching heating operation on/off

or
Switching heating operation on
 Press the MAIN MENU key.

 Press
symbol. The ON symbol flashes.
Press the ENTER key =>Heating operation on.

Switching heating operation off
 Press the MAIN MENU key.
The TIMER symbol flashes.

 Press the ENTER key. The ON symbol flashes.

 Press
symbol flashes.
Press the ENTER key =>Heating operation off.
10.2 Timer week program
NOTE
NOTE
It is advisable to use the timer operating mode to
reduce the operating costs. Using the device in manual
heating operation can result in increased operating
costs.
1810/B

to set the month. Press the ENTER

to set the year. Press the ENTER key.

or to select the MANUAL or TIMER

or to select the OFF symbol. The OFF
English
ON OFF
EN-5
