English

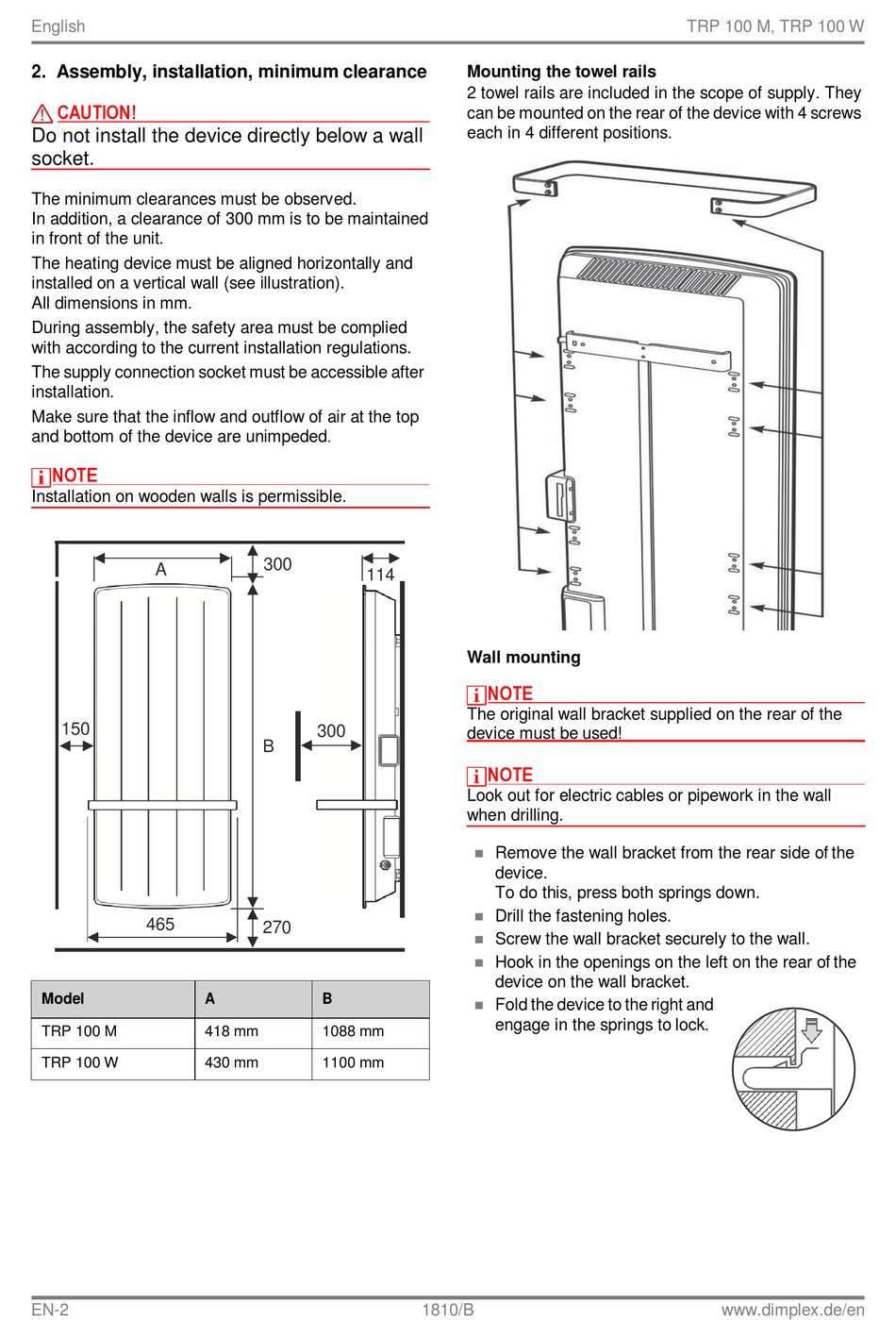

2. Assembly, installation, minimum clearance
CAUTION!
Do not install the device directly below a wall
socket.
The minimum clearances must be observed.
In addition, a clearance of 300 mm is to be maintained
in front of the unit.
The heating device must be aligned horizontally and
installed on a vertical wall (see illustration).
All dimensions in mm.
During assembly, the safety area must be complied
with according to the current installation regulations.
The supply connection socket must be accessible after
installation.
Make sure that the inflow and outflow of air at the top
and bottom of the device are unimpeded
NOTE NOTE
Installation on wooden walls is permissible.
A
150
465
Model
TRP 100 M
TRP 100 W
EN-2
.
300
114
300
B
270
A B
418 mm 1088 mm
430 mm 1100 mm
Mounting the towel rails
2 towel rails are included in the scope of supply. They
can be mounted on the rear of the device with 4 screws
each in 4 different positions.
Wall mounting
NOTE NOTE
The original wall bracket supplied on the rear of the
device must be used!
NOTE NOTE
Look out for electric cables or pipework in the wall
when drilling.
 Remove the wall bracket from the rear side of the
device.
To do this, press both springs down.
 Drill the fastening holes.
 Screw the wall bracket securely to the wall.
 Hook in the openings on the left on the rear of the
device on the wall bracket.
 Fold the device to the right and
engage in the springs to lock.
1810/B
TRP 100 M, TRP 100 W
www.dimplex.de/en
