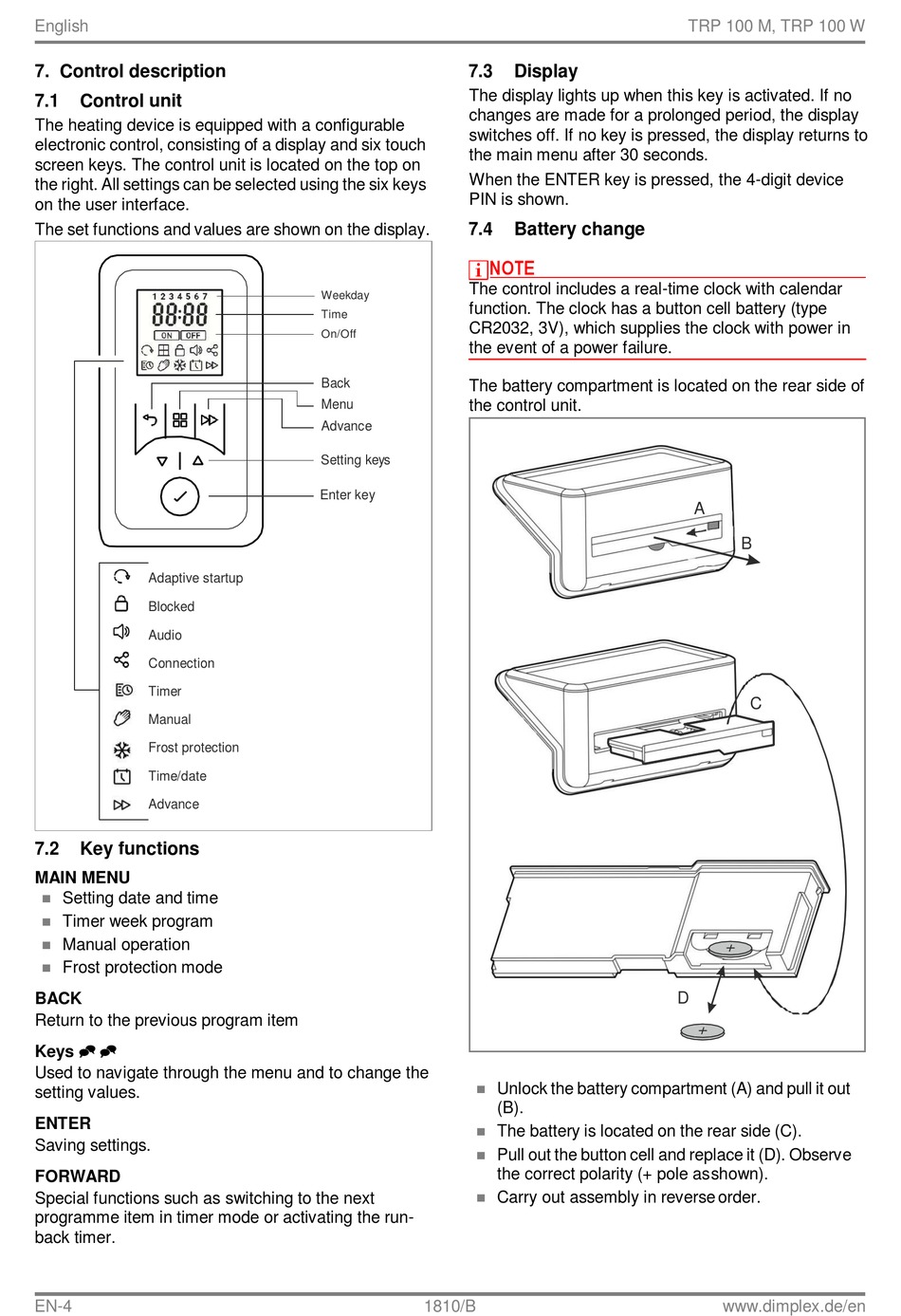

7. Control description
7.1 Control unit
The heating device is equipped with a configurable
electronic control, consisting of a display and six touch
screen keys. The control unit is located on the top on
the right. All settings can be selected using the six keys
on the user interface.
The set functions and values are shown on the display.
Adaptive startup
Blocked
Audio
Connection
Timer
Manual
Frost protection
Time/date
Advance
7.2 Key functions
MAIN MENU
 Setting date and time
 Timer week program
 Manual operation
 Frost protection mode
BACK
Return to the previous program item
Keys  
Used to navigate through the menu and to change the
setting values.
ENTER
Saving settings.
FORWARD
Special functions such as switching to the next
programme item in timer mode or activating the run-
back timer.
EN-4
7.3
The display lights up when this key is activated. If no
changes are made for a prolonged period, the display
switches off. If no key is pressed, the display returns to
the main menu after 30 seconds.
When the ENTER key is pressed, the 4-digit device
PIN is shown.
7.4
NOTE
NOTE
The control includes a real-time clock with calendar
Weekday
function. The clock has a button cell battery (type
Time
CR2032, 3V), which supplies the clock with power in
On/Off
the event of a power failure.
Back
The battery compartment is located on the rear side of
the control unit.
Menu
Advance
Setting keys
Enter key




1810/B
Display
Battery change
Unlock the battery compartment (A) and pull it out
(B).
The battery is located on the rear side (C).
Pull out the button cell and replace it (D). Observe
the correct polarity (+ pole as shown).
Carry out assembly in reverse order.
TRP 100 M, TRP 100 W
A
B
C
D
