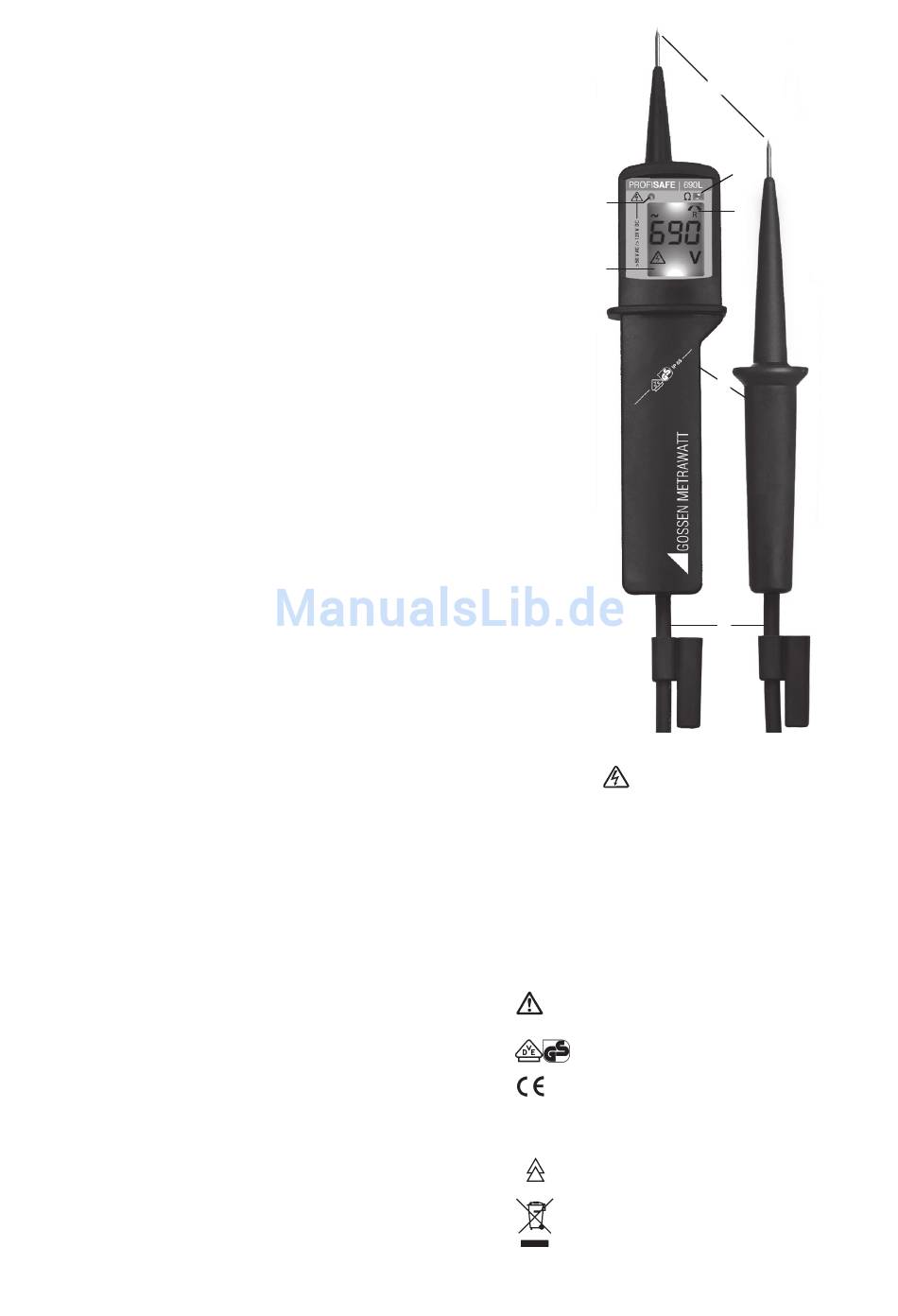

1 Test electrodes
2 Red LED (LV indication)
for voltages ≥ 50 V AC / 120 V DC
3 Green LED „Ω" signalizes continuity
0 ... 1000 kΩ
4 Indication of rotating field arrow left/right
5 Display (LCD)
6 Handgear
7 Connecting line
Symbols on the instrument
Attention! Observe user instructions!
Mark of approval from VDE test authority
Indicates EC conformity
TR
On-time at highest nominal voltage
on
RT
Recovery time after tests with highest nominal voltage
off
Device for live working
This devices may not be disposed with the domestic
waste (WEEE 2012/19/EU).
Please contact www.gmci-service.com in regard to the
return of old devices.
