Installing the OPT/i CU Filter mounting / Duo in the
CU 1400i

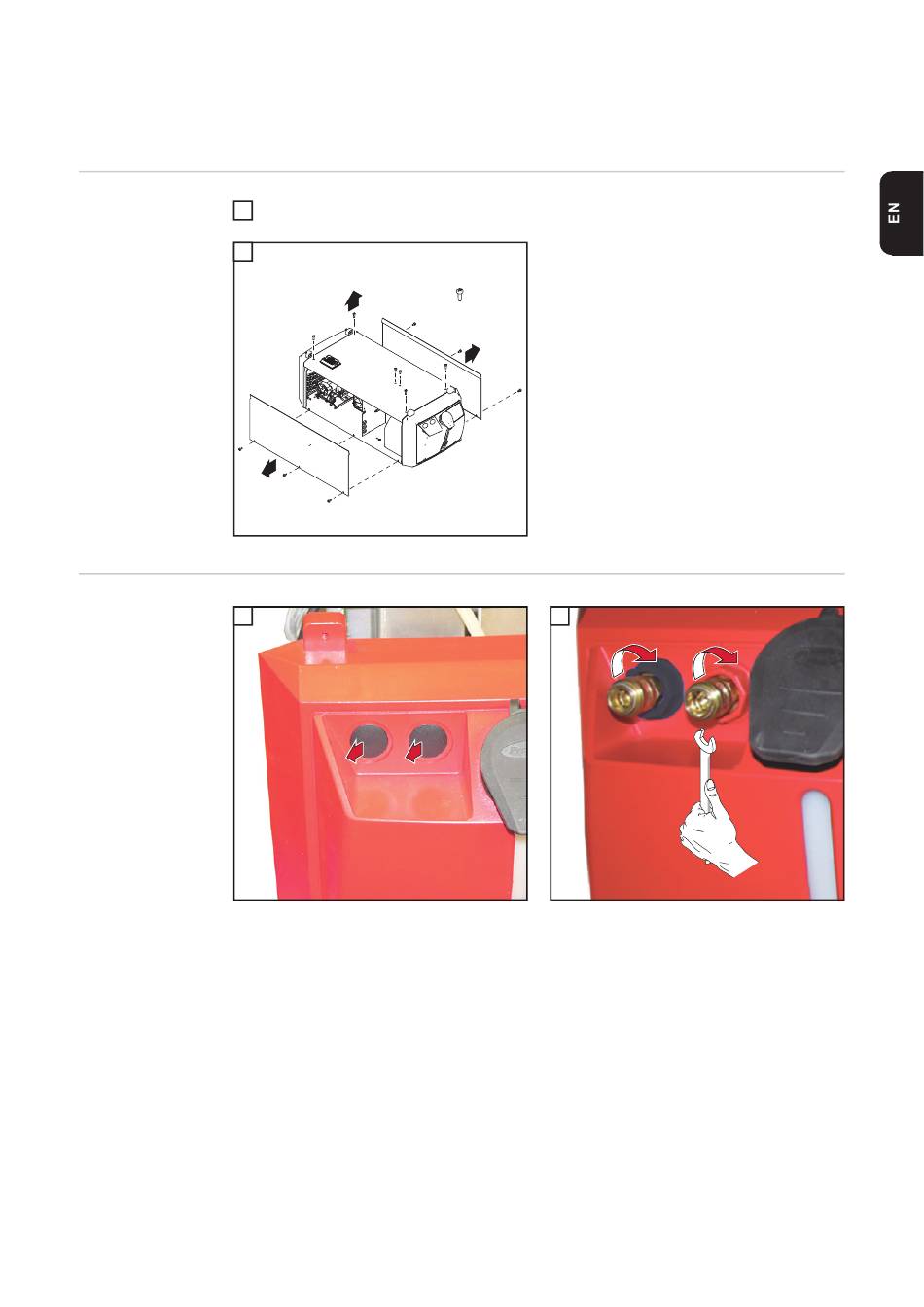

Opening the de-
1
vice
2
2
CU 1400i with
1
1
standard coolant
connections at
the rear: Install-
ing the OPT/i CU
Filter mounting /
Duo
Remove the two blanking covers
Disconnect the cooling unit from all system components (see cooling unit operating
instructions)
*
3
1
1 1
* After undoing the screws, fold the
device lid to one side.
TX 25
2
2
2
2
black
Insert the connections from the inside to the outside
Secure the connections with plastic nuts, left = black,
right = red, 21 mm
2
red
