Fronius OPT/i CU Duo Installationsanleitung Seite 35

3
3
700 mm
3

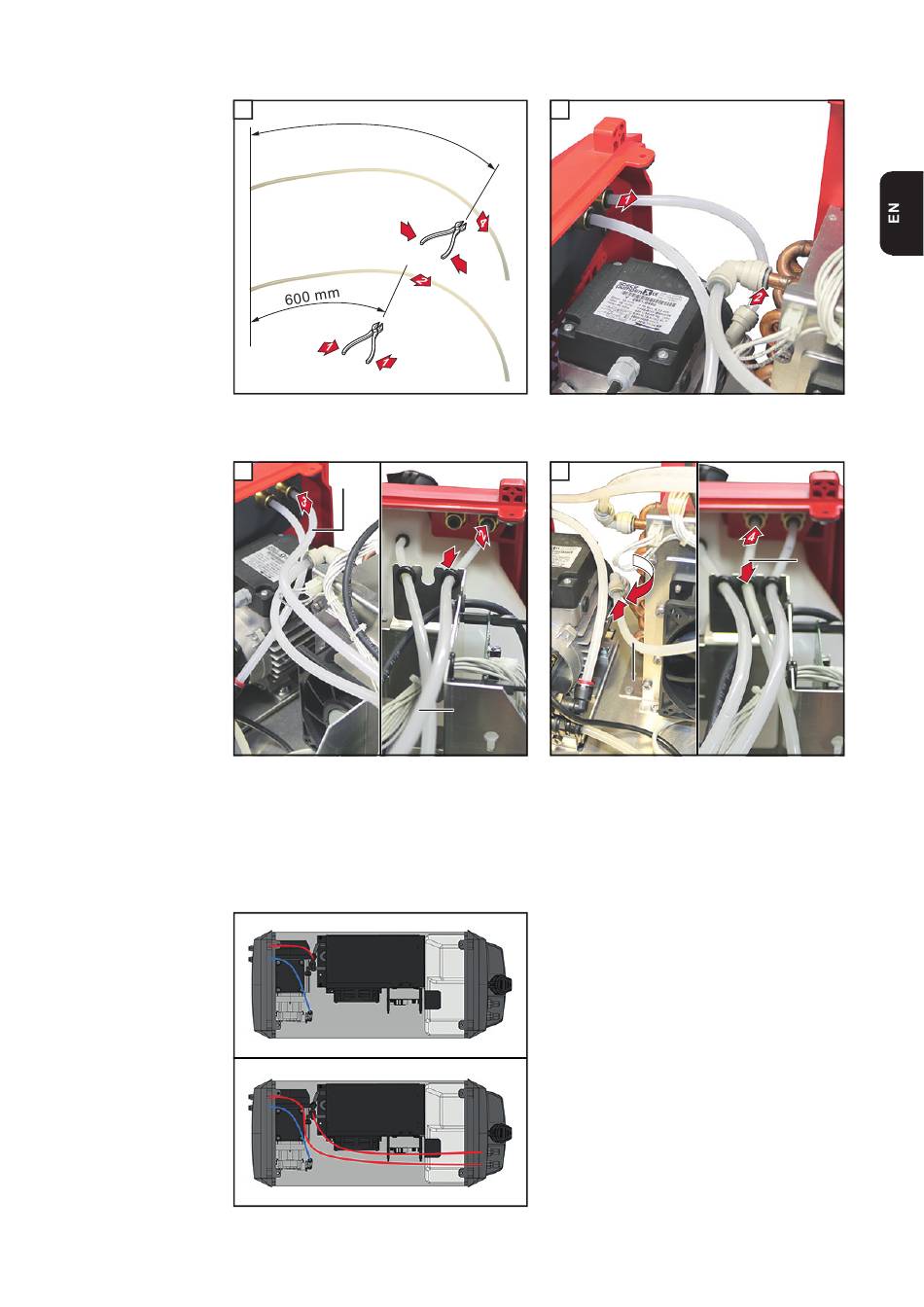

Cut the hoses to length
5
5
700 mm
Position the rubber bushing on the 700 mm hose and
insert the hose into the opening
Connect the 700 mm hose at the front and rear
Arrangement of the coolant hoses before and after installation
4
4
3
Disconnect the return hose from the front and from the
cooler
6
6
1
2
600 mm
700 mm
Swivel the cooler connection towards the front
Connect the 600 mm hose
Position the rubber bushing on the 600 mm hose and
insert the hose into the opening
Connect the 600 mm hose at the front
CU 1100i / FK 5000 with standard coolant
connections at the rear
CU 1100i / FK 5000 with OPT/i CU Filter
mounting / Duo option installed
600 mm
3
1
35
