Scope Of Supply; Fitting The Hose Piece Provided To Free Connections - Fronius OPT/i CU Duo Installationsanleitung

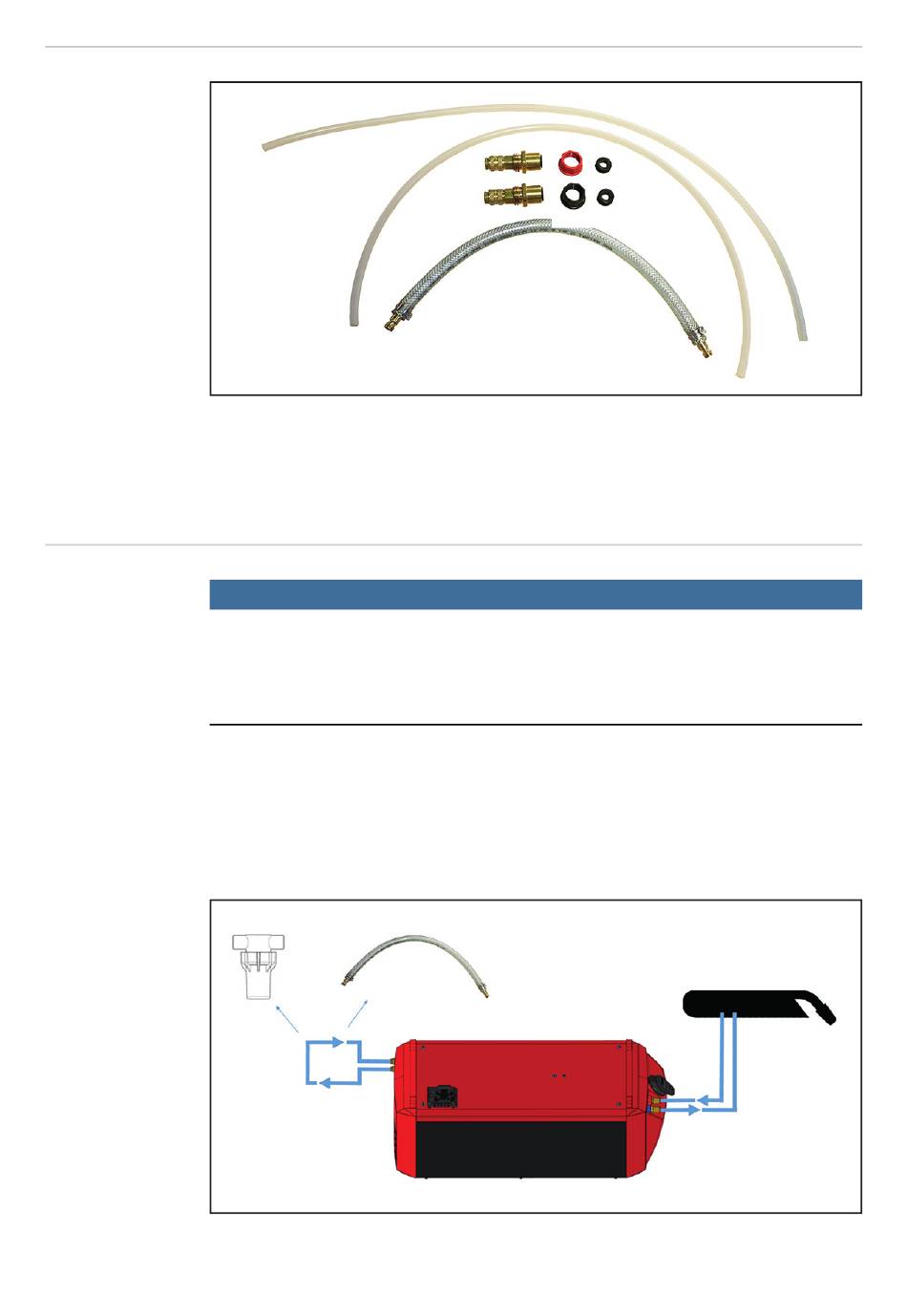

Scope of supply

* Hose piece for bridging free coolant connections
Not shown:
-
-
Fitting the hose
piece provided to
free connections
Risk of overheating of the welding torch.
To ensure sufficient coolant flow, observe the following:
► A hose piece is provided with the OPT/i CU Filter mounting / Duo option.
Free connections can be found:
-
-
-
For example: Compact system with OPT/i CU Filter mounting / Duo on rear
28
1 cable tie
1 set of Installation Instructions
NOTE!
If there are free coolant flow and return connections on the wirefeeder or on the cooling
unit, connect the hose piece to the free connections for coolant flow and return.
On the external wirefeeder if the welding torch was removed from there;
On the front of the cooling unit, if the coolant lines for the welding torch to the power
source were removed from there;
On the rear of the cooling unit, if the coolant lines for the interconnecting hosepack to
the external wirefeeder were removed from there.
red
black
*
