Technical Information

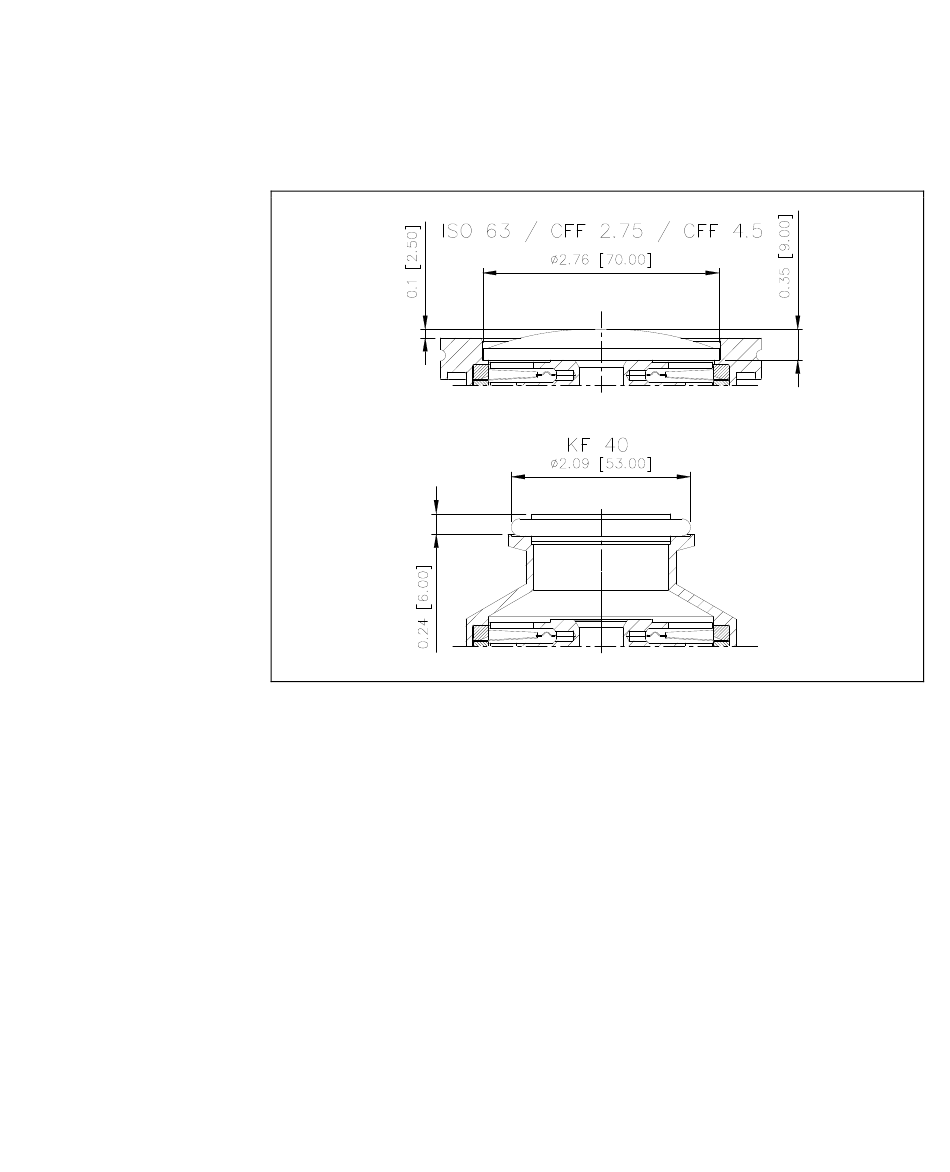

The following figure shows the overall flange dimensions with the
protection screen fitted on pump with ISO flange and pump with CFF
flange (dimensions are in inches [mm]).
Figure 16
