The front panel

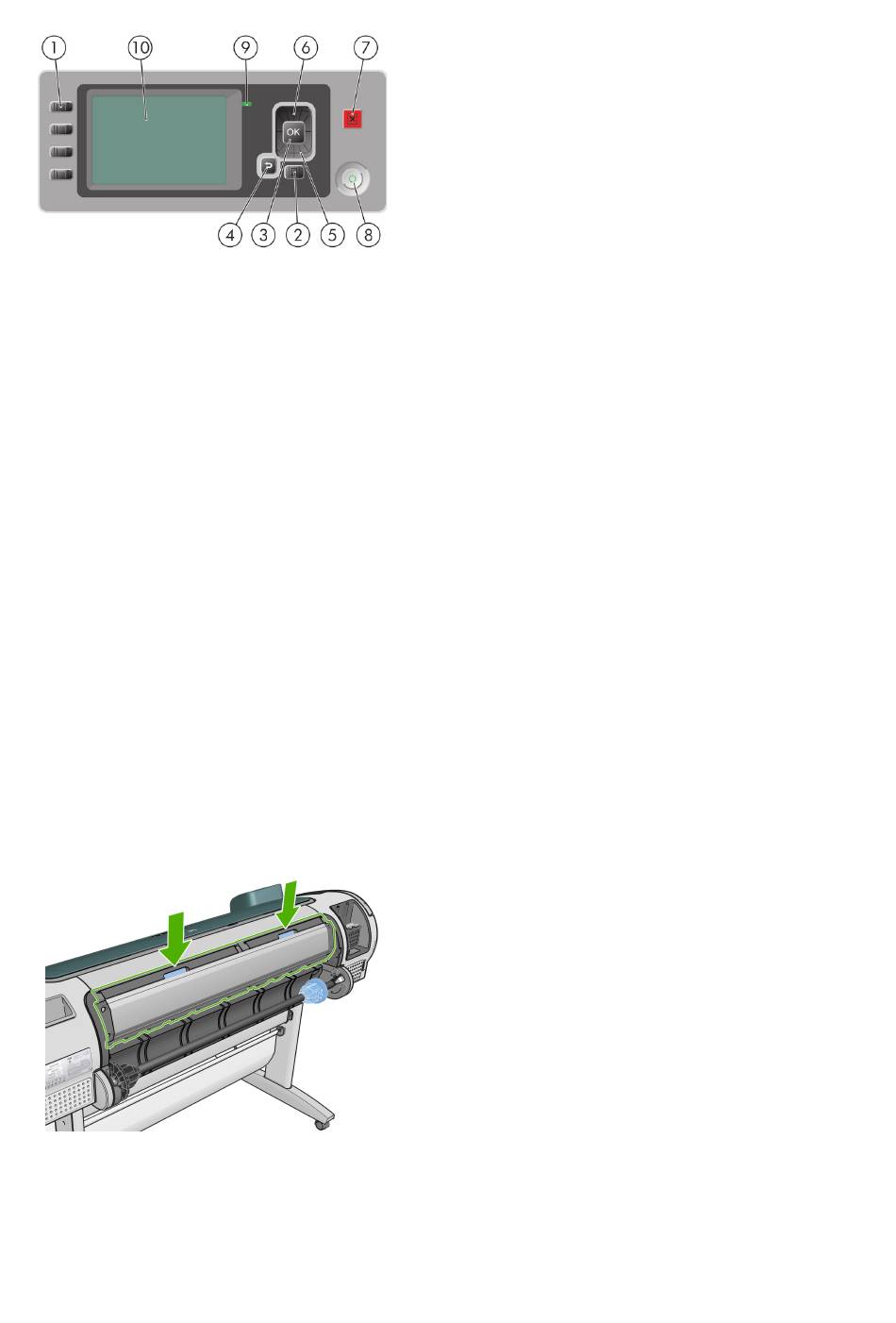

The front panel has the following components:
1. The four direct-access keys:
2. Menu key: Press to return to the main menu of the front-panel display. If you are already on the main menu it will
display the status screen.
3. OK key: To confirm an action while in a procedure or interaction. To enter a submenu. To select a value when
given an option.
4. Back key: To go to the previous step in a procedure or interaction. To go to the upper level, or leave the option
in the menu, or when given an option.
5. Down key: To go down in a menu or option, or to decrease a value, for example when configuring the front-
panel display contrast or the IP address.
6. Up key: To go up in a menu or option, or to increase a value, for example when configuring the front-panel
display contrast or the IP address.
7. Cancel key: To abort a procedure or interaction.
8. Power key: To turn the printer off or on; it also has a light to indicate the printer's status. If the power key light
is off, the printer is off. If the power key light is blinking green, the printer is starting up. If the power key light is
green on, the printer is on. If the power key light is amber on, the printer is in standby. If the power key light is
blinking amber, the printer needs attention.
9. LED light: Indicates the printer's status. If the LED light is solid green, the printer is ready. If it is flashing green,
the printer is busy. If it is solid amber, there is a system error. If it is flashing amber, the printer needs attention.
10. Front-panel display: displays errors, warnings and information on using your printer.
Load a roll onto the spindle
Ensure the sheet tray is closed.
1. Remove the right-hand end of the spindle from the printer, then the other end.
Do not insert your fingers into the spindle supports during the removal process.
View ink levels, View loaded paper, Unload paper, Form feed and cut.
