MULTI PURPOSE TOOL
59G021
CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL
CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.
DETAILED SAFETY REGULATIONS
DETAIL SAFETY RULES (Multi purpose tool)
• During operation hold the tool firmly in closed hand.
• Before switching the tool on make sure it does not touch
processed material.
• Before cutting floor, wall or other surface make sure the cut area is
free from gas or electric installation. Cutting a live wire may cause
electric shock and cutting gas pipe may cause explosion.
• Do not touch moving parts of the tool.
• Do not put the tool aside before it stops completely.
• Hold the tool firmly in your hand before switching it on.
• Do not touch blade and processed material just after the work has
been finished, these pieces may be very hot and may cause burns.
• To replace blade or sanding paper, first switch the tool off with the
switch and wait until it stops working, then disconnect the tool
from mains socket.
• Prior to operation check if there is enough space under processed
material to avoid table or floor damage with the blade.
• Use anti-dust mask. Dust produced during operation is harmful
to health.
• Do not eat, drink or smoke in a room, where paint with lead
compounds is removed with this tool. There should be no
bystanders in the room. Contact with or inhalation of dusts with
lead compounds may be harmful to health.
• Before sanding connect dust extraction system to the tool.
• The tool is not designed for wet operation.
• Keep the power cord away from moving parts of the tool at all
times.
• When you see unusual behaviour of the tool, smoke or hear
strange noises, immediately switch off the tool and remove the
plug from mains socket.
• To ensure proper cooling during tool operation keep the
ventilation holes unobstructed.
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is always a
small risk of injuries at work.
CONSTRUCTION AND USE
Multi purpose tool is driven by single-phase motor whose rotation
is changed to oscillations. Various working tools available for the
tool allows for use in various types of tasks. This type of power tool
is widely used for: cutting wood, wood-based materials, plastics,
non-ferrous metals and joining parts (nails, bolts etc.). It can also be
used to process soft ceramic tiles, sanding and dry scraping small
surfaces. Possibility of processing abovementioned materials in
hardly accessible places and close to edges is an advantage of the
tool.
Range of use covers the following tasks: small model making,
locksmith, woodworking and any work from the scope of individual,
amateur activities (tinkering).
Use the power tool according to the manufacturer's instructions
only. Use the power tool only with original equipment.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
Sanding pad
1.
Switch
2.
Lever for quick-fastening of accessories
3.
Oscillation speed adjustmant dial
4.
* Differences may appear between the product and drawing.

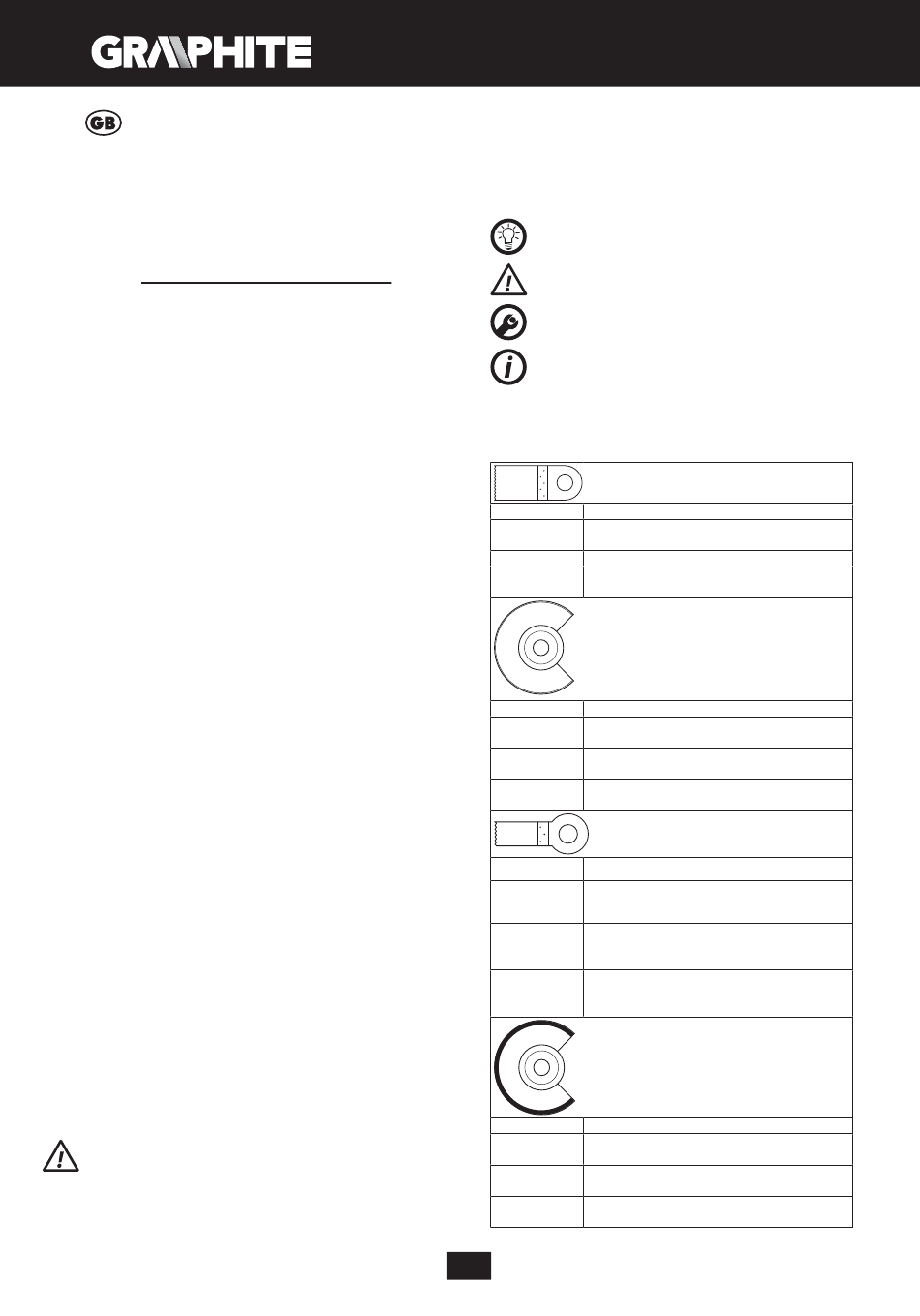

MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY/SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
Various working tips
1.
Sanding paper (80#)
2.
Transport case
3.
Name HSS blade for metal
Type of Metal (e.g. nails, bolts, small sections), non-
material ferrous metals
Intended use Small dividing and plunge cutting
Cutting narrow sections short, cutting joining
Example
elements, e.g. clamps
Name Half-round HCS wheel for wood
Type of Wood, wood-based materials, plastics
material
Dividing and plunge cutting in corners and
Intended use
hardly accessible places, near surface
Narrow plunge cuts in solid wood, e.g. for air
Example
grates
HCS blade for wood
Name
Wood, wood-based materials, plastics
Type of
material
Dividing and plunge cutting in corners and
Intended use hardly accessible places, near surface
Cut outs in furniture boards, cutting cove bases
Example short, plunge cutting for fitting floor panels
Name Half-round wheel with tungsten coat
Type of Cement joints, soft ceramic tiles, hard plastics and
material other materials
Cutting short and cutting off close to edges, in
Intended use
corners and hardly accessible places
Removal of joint, cutting holes in ceramic tiles
Example
and plastics
10
- 6 pcs
- 5 pcs
- 1 pce
