IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Specifications
Weight capacity-DO NOT EXCEED: 45 kg (100 lb.) includes TV and any accessories
Ù
Swivel:
Ù ±90°
Tilt:
Ù +5° to –15°
Level: ±5°
Ù
CAUTION:
Avoid potential personal injuries and property damage!
Do not use this product for any purpose not explicitly specified by manufacturer.
Ù
The wall must be capable of supporting five times the weight of the monitor and mount combined.
Ù
This product is designed for use in wood frame walls only!
Ù
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact
Ù
Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Ù

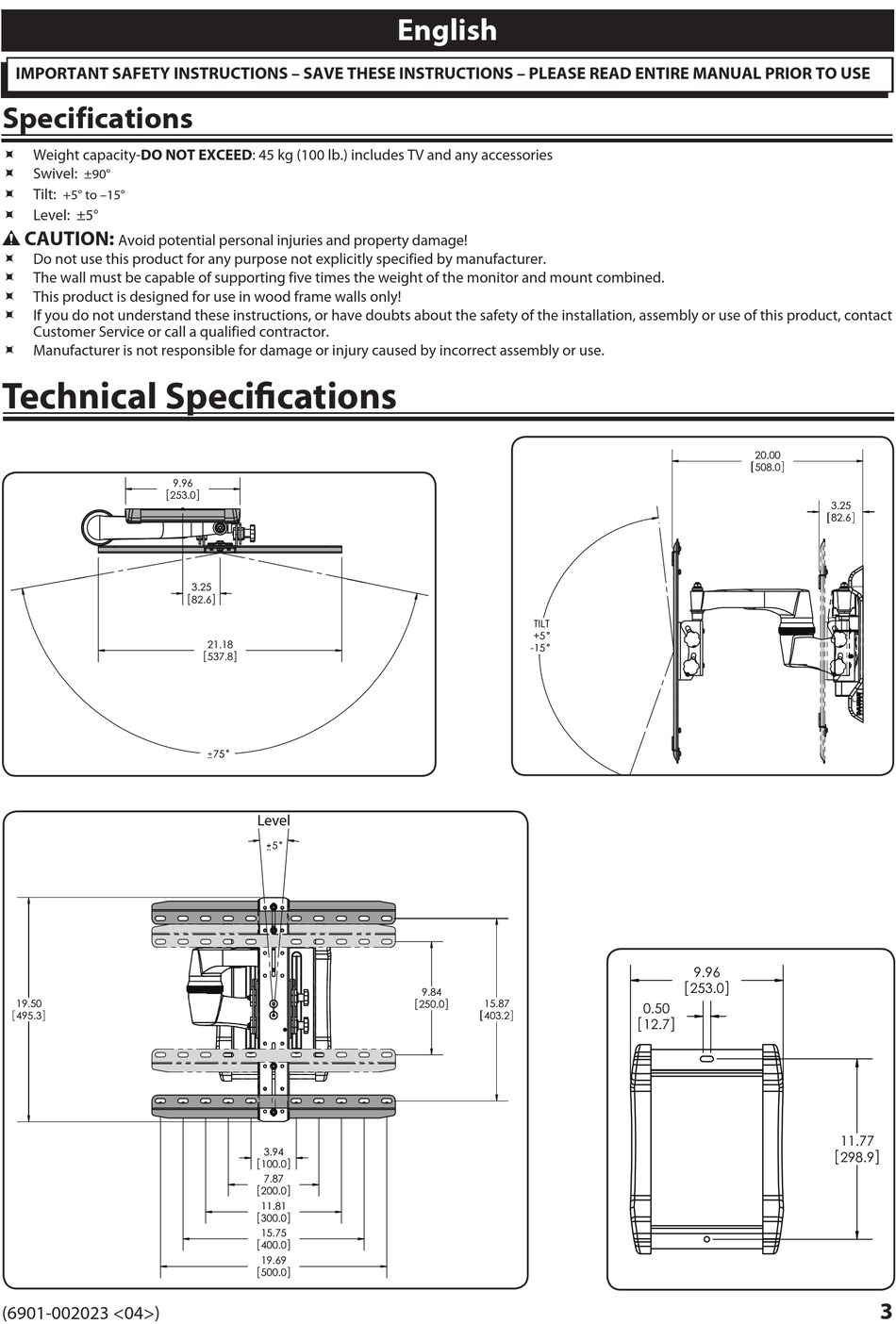

Technical Specifications
