Rear Camera Installation

1. Connect one end of the Mini USB cable into the Mini USB Port (9) on the
dash camera. Connect the other end into the Mini USB Port (16) on the rear
camera.
2. Turn the camera on. The rear-lens view will automatically appear on the
display screen in Dual (PiP) format.
Tip: To view full-screen, press the 'Esc/Menu' button (3) to enter the General
Settings menu. Use the 'Up' and 'Down' buttons (4 & 5) to select the Screen
Display option and press the 'OK/REC' button (6) to confirm. Then select
Rear Camera using 'Up' and 'Down' buttons (4 & 5) and confirm with the
'OK/REC' button (6).
3. Whilst looking at the display screen and without removing the adhesive
backing, find a suitable location for installing your rear-lens camera on your
rear windshield.
4. Having found a suitable location on your rear windshield, peel off the
protective plastic backing from the adhesive mount. Press firmly against your
rear windshield to secure.

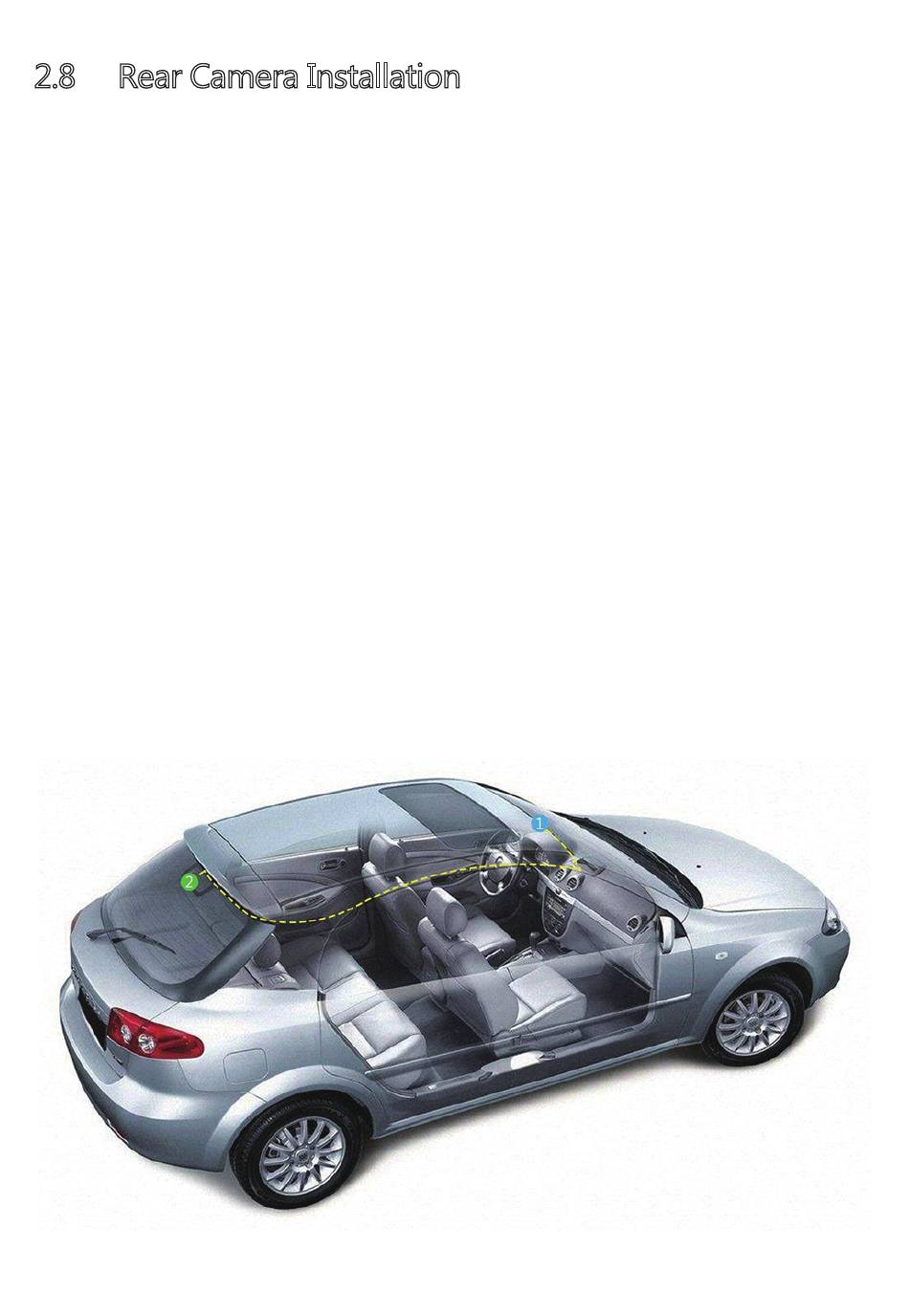

5. For a more organized car environment, the rear camera USB cable can be
routed as indicated by the dashed line in the diagram.
