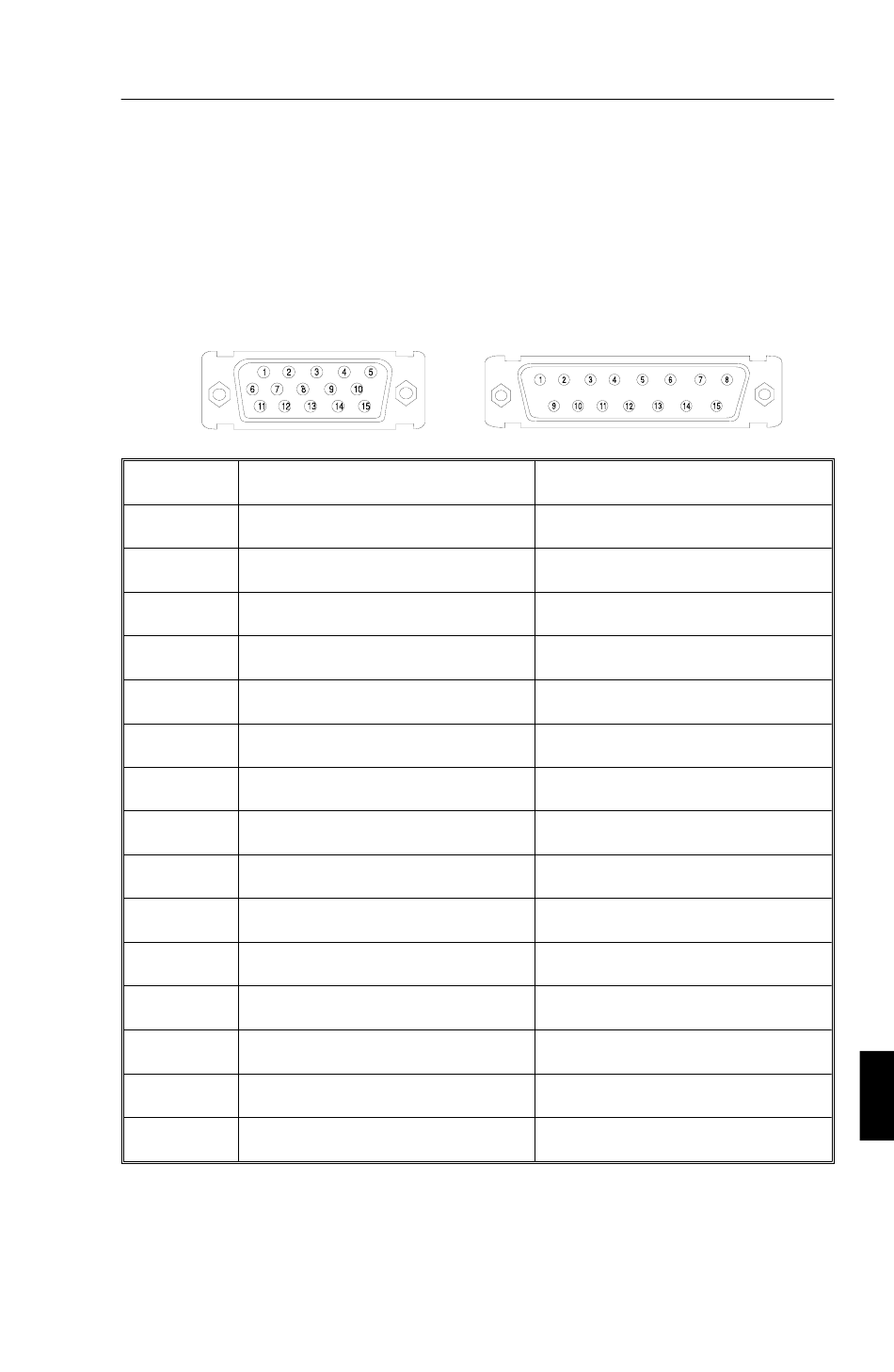

App. A PIN ASSIGNMENTS
App. A PIN ASSIGNMENTS
MINI D-SUB 15 P
Pin No. Mini D-SUB 15P
1 RED
2 GREEN
3 BLUE
4 GROUND
5 GROUND
6 GROUND
7 GROUND
8 GROUND
9 NO-CONNECTION
10 GROUND
11 GROUND
12 SDA
13 H.SYNC, H/V.SYNC
14 V.SYNC
15 SCL
Macintosh with optional Adapter D-SUB 15 P
D-SUB-15P
GROUND
RED
H/V COMP. SYNC
SENSE 0
GREEN
GROUND
SENSE 1
NO-CONNECTION
BLUE
SENSE 2
GROUND
NO-CONNECTION
GROUND
GROUND
NO-CONNECTION
A - 1
