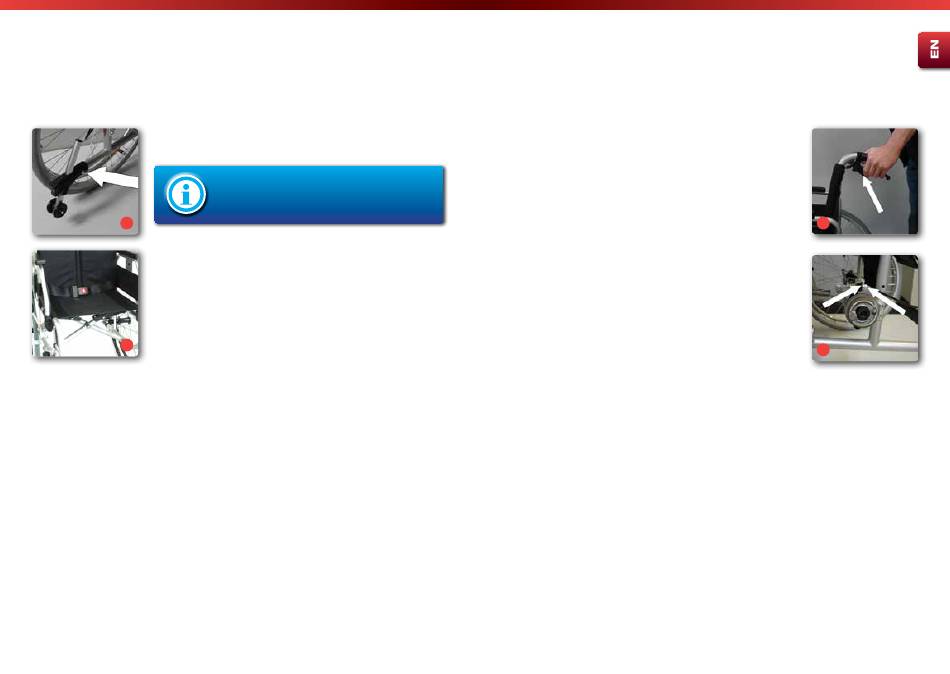

5. Accessories

5.1. Tip protection and anti-tip
wheels
28
To fit the tip protection, please proceed as follows:
• Pull the rubber profiles off the tip assist.
• Push the round profile for the tip protection onto the side frame
tube at the bottom.
• Fix the tip protection with the M6x35 bolt and M6 self-locking nut
in the hole in the frame provided (Fig. 28).
The tip protection can also be used to assist tipping when the anti-tip
29
wheels are raised.

5.2. Safety belt

If required, a safety belt is available as an accessory. This is fitted onto
the side frame of the wheelchair with the side part either temporarily
removed or swung away (see fig. 29). Take the open end of the belt
once around the side frame tube and then fix it with the belt buckle.
You also use the belt buckle to adjust the length of the belt. Adjust the
belt length so that the belt is tight, but does not apply pressure.
25
| Lightweight wheelchair
Always use the anti-tip wheels in pairs.
Lightweight wheelchair |

5.3. Drum brake

As an option, the Pyro Start Plus can be equipped with a drum brake,
which should only be operated by an accompanying person via the
brake lever on the push handles.
To achieve optimum braking efficiency, the braking power is set by
using the adjusting screw (see fig. 31). The braking power is increased
by unscrewing the adjusting screw and reduced by tightening it.
• Please unscrew the adjusting screw until you notice friction noises
on the wheel when it is turning.
• Then tighten the adjusting screw until the friction noises disappear.
The wheel then runs freely.
• After completing the setting, the adjusting screw is fixed by
tightening the locknut.
