3.10. EP WiFi Settings

To configure the WiFi properties of WiFi EP device.

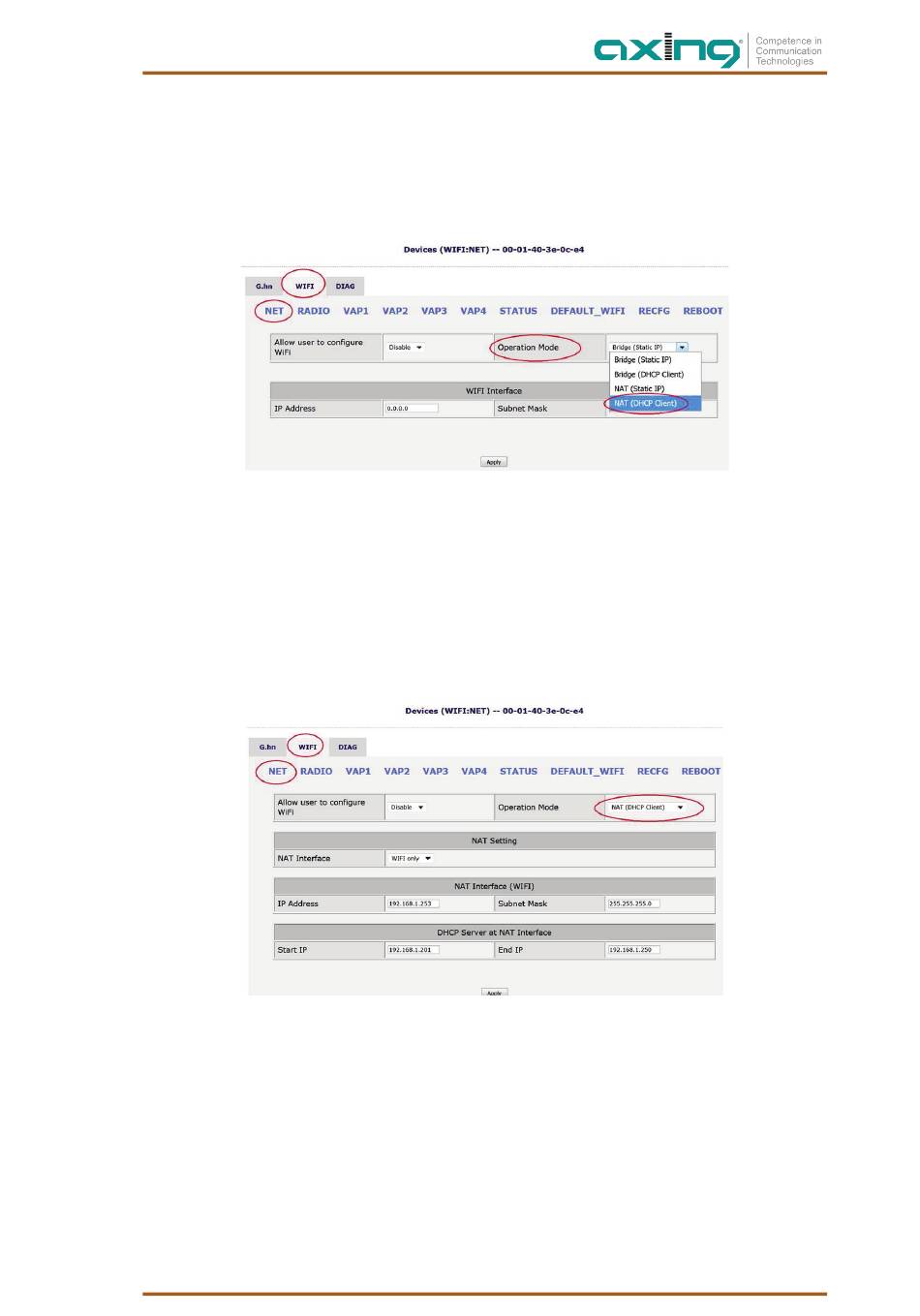

3.10.1. Network TCP/IP Setup (WIFI:NET)

Configure TCP/IP properties.
Operation mode: Bridge (Static IP)
Default is Bridge mode and EP has null IP Address (0.0.0.0). EP works as WLAN Access Point (AP) Bridge. May
assign IP/Subnet Mask to WiFi interface if preferred.
Operation mode: Bridge (DHCP Client)
The EP obtains its IP address via DHCP.
Operation mode: NAT (Static IP)
The IP addresses are assigned statically.
Operation mode: NAT (DHCP Client)
For the WLAN, a start IP and an end IP is set. In this address range, the DHCP server assigns the IP addresses to
the WLAN users.
If all IP addresses have been assigned in the address area (from Start IP to End IP), then no further WLAN users
will be accepted.
