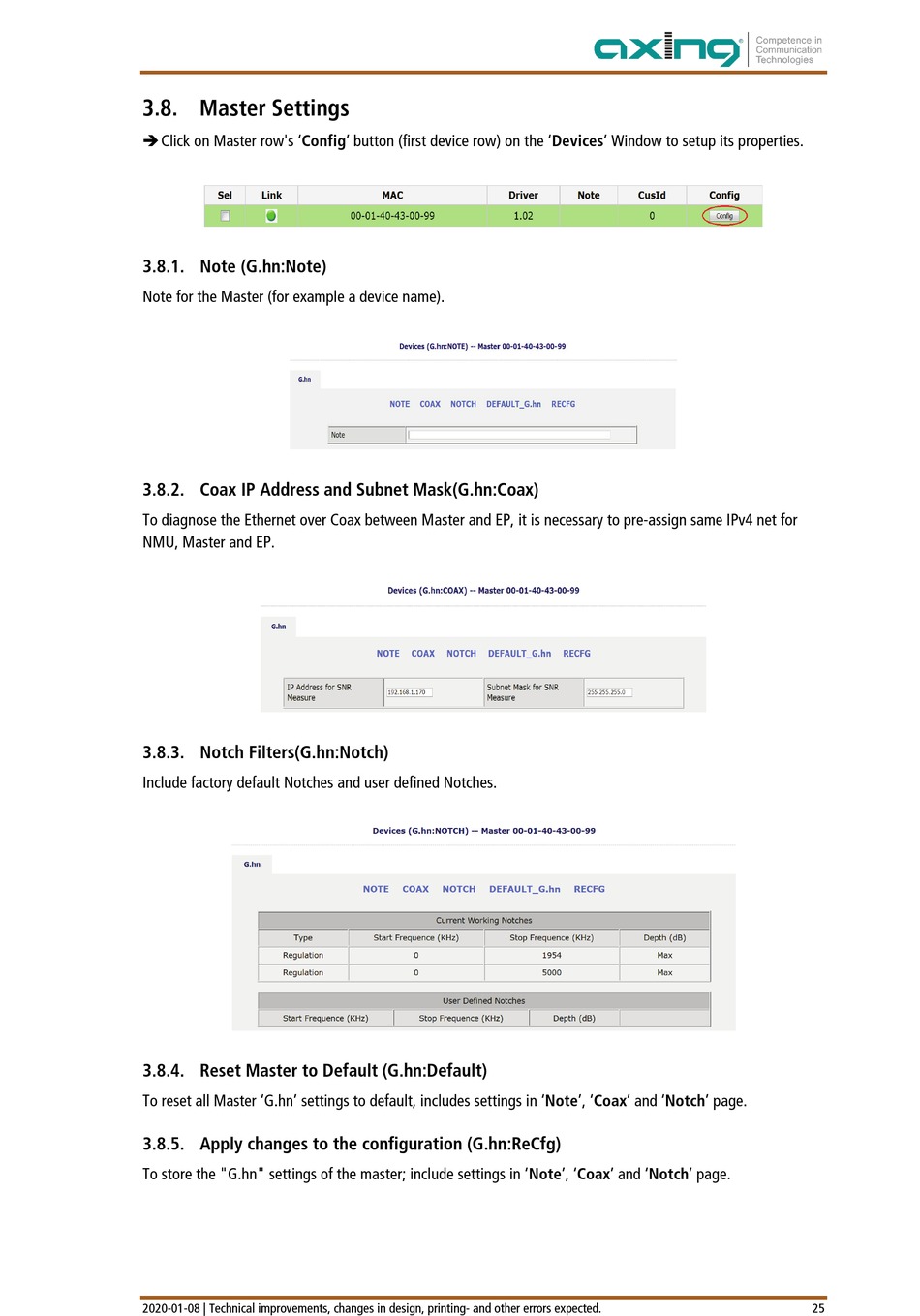

3.8. Master Settings

 Click on Master row's 'Config' button (first device row) on the 'Devices' Window to setup its properties.

3.8.1. Note (G.hn:Note)

Note for the Master (for example a device name).

3.8.2. Coax IP Address and Subnet Mask(G.hn:Coax)

To diagnose the Ethernet over Coax between Master and EP, it is necessary to pre-assign same IPv4 net for
NMU, Master and EP.

3.8.3. Notch Filters(G.hn:Notch)

Include factory default Notches and user defined Notches.

3.8.4. Reset Master to Default (G.hn:Default)

To reset all Master 'G.hn' settings to default, includes settings in 'Note', 'Coax' and 'Notch' page.

3.8.5. Apply changes to the configuration (G.hn:ReCfg)

To store the "G.hn" settings of the master; include settings in 'Note', 'Coax' and 'Notch' page.
