EN
Brush
adapter
Slit adapter
MOUNTING THE MULTI-PURPOSE ADAPTER
Before use, check the arrow directions on the adapter
this side up - SUCTION.
Make sure that the suction side is up when using the device as a vacuum cleaner, and the blowing side is up
when using it for blowing.
USING THE ACCESSORY PARTS - VACUUMING

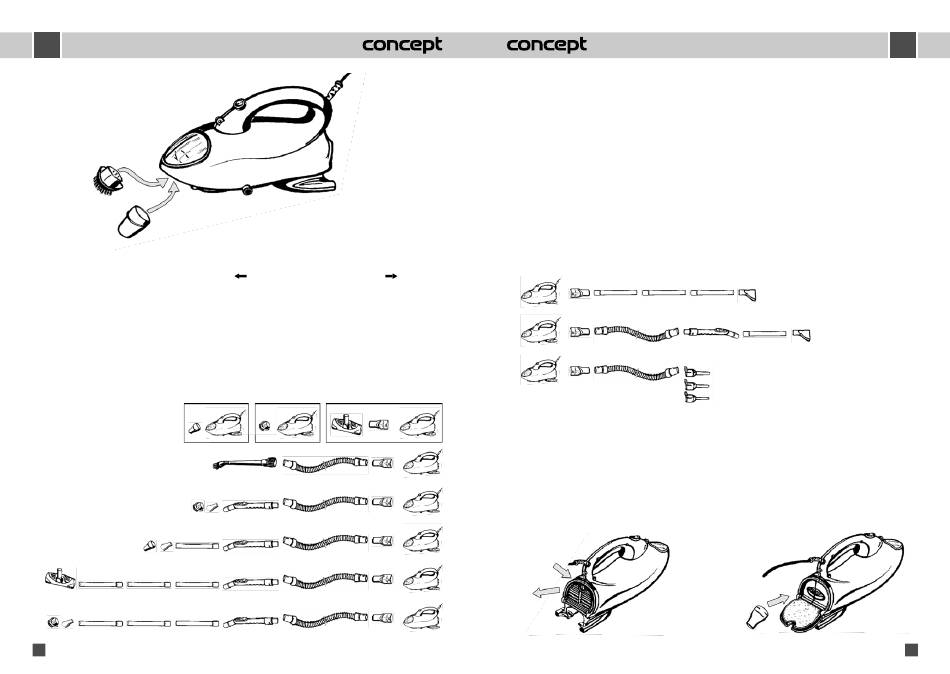

The delivered accessory parts can be used in various combinations depending on the method of use - see the
figure for assembly of the accessory parts for different applications (For parts numbering see the Accessory
parts chapter).
6
5 14
6 14 4
8
4 4 4
5 14
4 4 4
46
(BLOW) - this side up BLOWING, and (SUCK) -
5 8 1
12 1
2
1
3
2
1
3
2
1
3
2
1
3
2
VP 1000
The floor brush (8) has two working positions depending on the type of floor:
1. position for carpets and mats without brush
2. position for smooth floors with brush.
Note: Before use, make sure that the accessory parts are safely assembled.
USING THE ACCESSORY PARTS - BLOWING
WARNING: Always wear safety goggles when using the device for blowing and inflating. Clean the
vacuum cleaner before using it for blowing or inflating.
Before use, make sure that the accessory parts are safely assembled. If using the
hose for blowing or inflating, hold the end of hose safely while turning the device on
and during operation.
The delivered accessory parts can be used in various combinations depending on the method of use see the
figure for assembly of the accessory parts for different applications (for parts numbering see the Accessory
parts chapter).
4 4
1
1 2
1
2
The figure shows two typical arrangements of accessory parts, one for blowing and one for inflating. To
increase flexibility during blowing you can put the pipes on the end of hose (for parts numbering see the
Accessory parts chapter).
BLOWING
1. Attach the blowing adapter; open the rear port by pulling the upper indent, see Fig. 1.
2. Insert the multi-purpose adapter into the opening, see Fig. 2.
3. Put the inflating adapter on the hose so the loop fits in the opening in the hose.
4. Press the adapter in the direction of arrow until it snaps in.
5. During inflating, you can adjust the air stream and pressure by blocking the hole by your thumb.
1
2
Fig. 1.
VP 1000
4 7
3 4 7
9, 10, 11
EN
Fig. 2.
