5. Cylinder Pressure Temperature Display
Installation
Cylinder Pressure Temperature Display Kit
Item
1.
2.
Confirm that all items listed above are in the Cylinder Pressure Temperature Display
Kit.
NOTE: The Cylinder Pressure Temperature Display Unit must be installed on the
same CCS–200 that the Cylinder Pressure Regulator is on.
1. The CCS–200 top console area must be cleaned with the provided isopropyl
alcohol wipe before mounting the Temperature Display Unit.
CAUTION: You only have one opportunity to attach the Cylinder Pressure
Temperature Display Unit properly. Confirm the proper placement and alignment
before removing the red tape liner from the bottom of the Cylinder Pressure
Temperature Display Unit.
2. Remove the adhesive backing of the Velcro pad from the Cylinder Pressure
Temperature Display Unit.

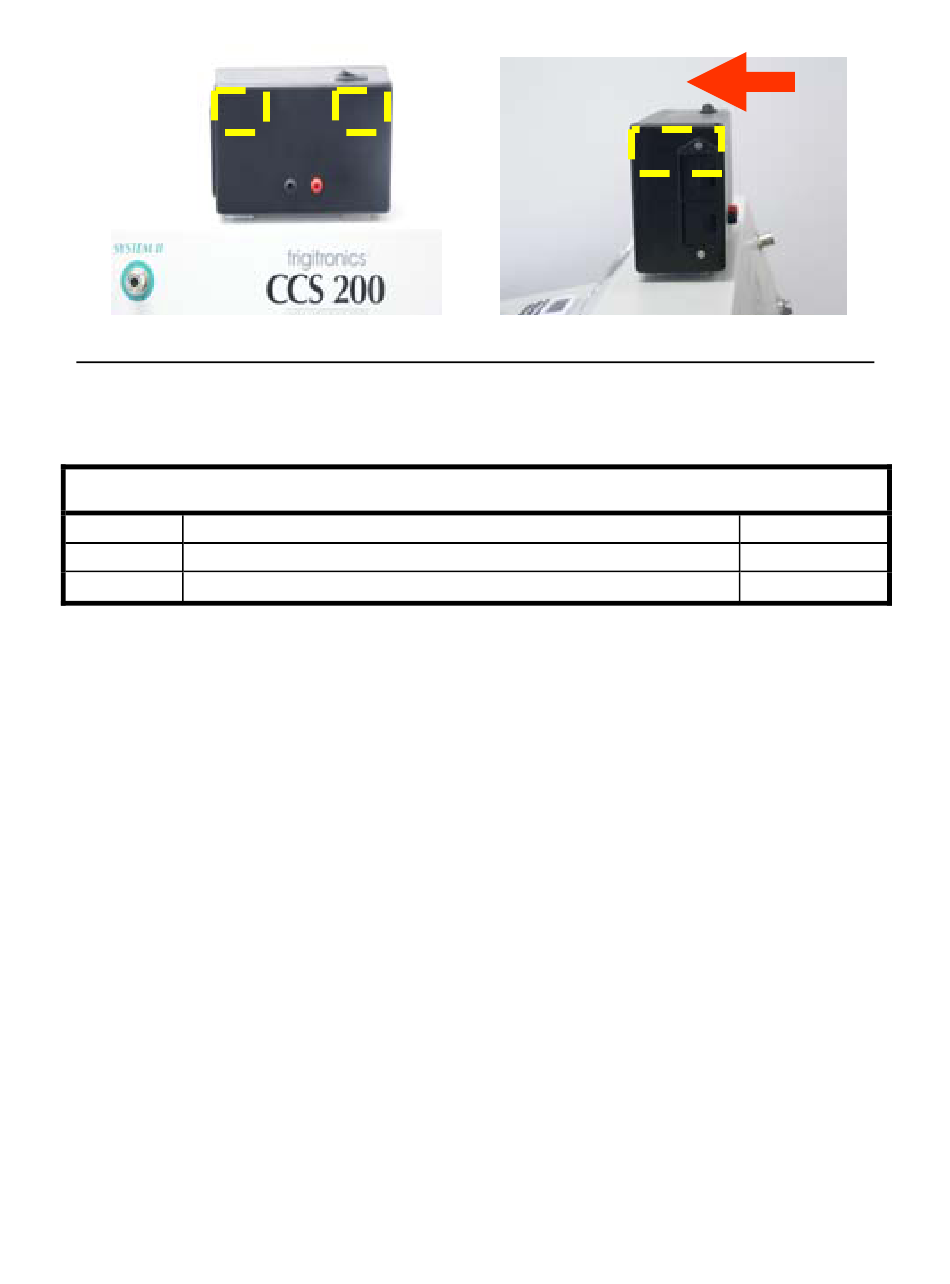

3. Locate the center of the CCS–200 console, approximately in line with the Tissue
Temperature input connector locale.
Description
Temperature Display (with velcro pads)
Alcohol Wipe Pad
5 of 56
Quantity
1
1
