P1 2

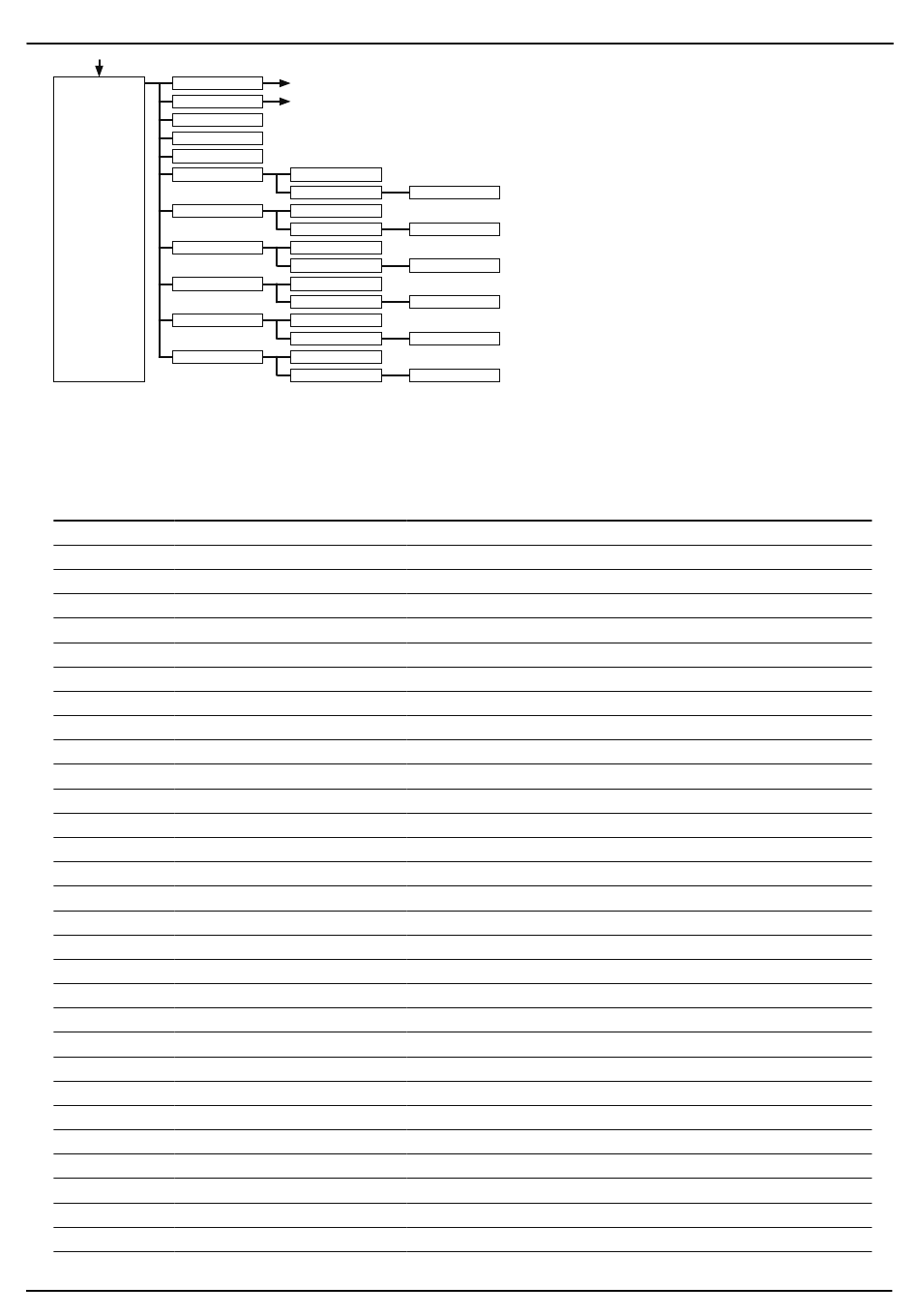

SOFTWARE VER.
INFO
FIXTURE ID
TOT OP. TIME
TOT LAMP TIME
TOT BAT CHARGE T.
TEMP BASE LCD
TEMP BASE PS
TEMP HEAD MAIN
TEMP HEAD DRV
TEMP HEAD LED
TEMP HEAD AMB.

5.0 Channel assignment P12

5.1 Overview DMX channels P12 Profile

The P12 Profile offers 2 different channel modes. Menu PERSONALITY -> DMX MODE you can
select your mode. The used mode will be displayed in the main menu.
Mode 1(M1)
Channel 1 Pan
Channel 2 Pan fine
Channel 3 Tilt
Channel 4 Tilt fine
Channel 5 Control channel
Channel 6 Shutter
Channel 7 Dimmer
Channel 8 Focus
Channel 9 Zoom
Channel 10 Autofocus distance
Channel 11 Autofocus balancing
Channel 12 Iris
Channel 13 Gobo 1
Channel 14 Gobo 1 rotation
Channel 15 Gobo 2
Channel 16 Gobo 2 rotation
Channel 17 Aperture 1a
Channel 18 Aperture 1b
Channel 19 Aperture 2a
Channel 20 Aperture 2b
Channel 21 Aperture 3a
Channel 22 Aperture 3b
Channel 23 Aperture 4a
Channel 24 Aperture 4b
Channel 25 Aperture rotation
Channel 26 Colour wheel
Channel 27 Cyan
Channel 28 Magenta
Channel 29 Yellow
Channel 30 CTO
- 26 -
ACTUAL
MAX RESET?
ACTUAL
MAX RESET?
ACTUAL
MAX RESET?
ACTUAL
MAX RESET?
ACTUAL
MAX RESET?
ACTUAL
MAX RESET?
Mode 2 (M2)
Pan
Pan fine
Tilt
Tilt fine
Control channel
Shutter
Dimmer
Fine dimmer
Focus
Fine focus
Zoom
Fine zoom
Autofocus distance
Autofocus balancing
Iris
Fine iris
Gobo 1
Gobo 1 rotation
Gobo 1 fine rotation
Gobo 2
Gobo 2 rotation
Gobo 2 fine rotation
Aperture 1a
Aperture 1a fine
Aperture 1b
Aperture 1b fine
Aperture 2a
Aperture 2a fine
Aperture 2b
Aperture 2b fine
