Type 6518/6519

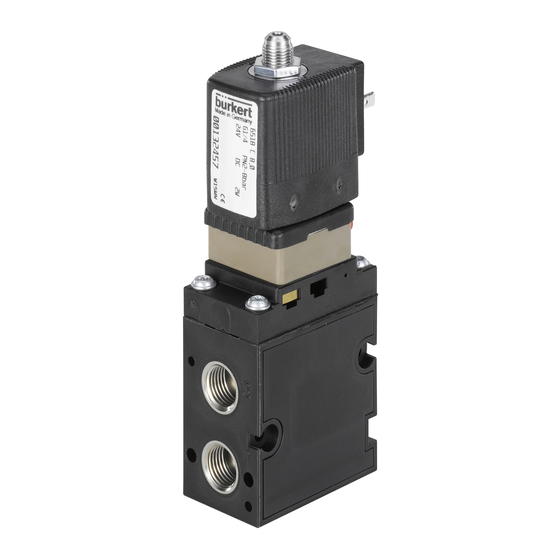

3/2-, 5/2- bzw. 5/3-Wege-Magnetventil
3/2, 5/2 or 5/3 way solenoid valve
Èlectrovanne 3/2, 5/2 ou 5/3 voies
Válvula magnética de 3/2, 5/2 o 5/3 pasos
Fluid Control Systems
Sicherheit
Bestimmungsgemäße Verwendung
Bitte beachten Sie die Hinweise dieser Betriebsanleitung
sowie die Einsatzbedingungen und zulässigen Daten ge-
mäß Datenblatt Typ 6518/6519, damit das Gerät einwandfrei
funktioniert und lange einsatzfähig bleibt. Bei Nichtbeachtung
dieser Hinweise sowie bei unzulässigen Eingriffen in das Gerät
entfällt jegliche Haftung unsererseits, ebenso erlischt die Garantie
auf Geräte u. Zubehörteile! Das Gerät dient ausschließlich als 3/
2-, 5/2- bzw. 5/3- Wege-Magnetventil für die lt. Datenblatt
zulässigen Medien. Eine andere oder darüber hinausgehende
Benutzung gilt als nicht bestimmungsgemäß . Für hieraus
resultierende Schäden haftet Bürkert nicht. Das Risiko trägt allein
der Anwender.
ACHTUNG!
• Halten Sie sich bei Einsatzplanung und Betrieb des
Gerätes an die einschlägigen allgemein anerkannten
sicherheitstechnischen Regeln.
• Treffen Sie geeignete Maßnahmen, um unbeabsichtig-
tes Betätigen oder unzulässige Beeinträchtigungen
auszuschließen.
• Beachten Sie, daß in Systemen, die unter Druck
stehen, Leitungen und Ventile nicht gelöst werden
dürfen. Schalten Sie vor Eingriffen in das System in
jedem Fall die Spannung ab!
• Achten Sie auf den einwandfreien Sitz der Dichtung
beim Verschrauben der Spule mit der Geräte-
steckdose.
• Verstellen Sie auf keinen Fall die mit roter Farbe
gesicherten Schrauben!
• Bei Ausführungen mit Explosionsschutz sind zusätz-
lich die Angaben der Konformitätsbescheinigung zu
beachten.
WARNUNG!
• Verletzungsgefahr! Bei Dauerbetrieb kann die Spule
sehr heiß werden.
Safety
Proper Usage
To ensure the proper function of the device and promote
long service lift, you must comply with the information in
these Operating Instructions and the application conditions and
specifications provided in the Type 6518/6519 Data Sheet. Usage
of the device in a manner that is contrary to these Operating
Instructions or the application conditions and specifications
provided in the Type 6518/6519 Data Sheet is improper and will
void your warranty.
This device serves exclusively as a 3/2, 5/2 or 5/3 way solenoid
valve for the media stated to be permissible on the data sheet.
Any other use is considered improper use. Bürkert will not be
responsible for any improper use of the device.
ATTENTION!
• Be sure to observe generally accepted safety rules
when planning, installing and using this device. For
example, take suitable measures to prevent
unintentional operations of the device.
• Do not impair the operation of the device.
• Do not attemp to detach or unscrew any lines or
valves in the system that are under pressure, and
always be sure to switch off the voltage supply before
working on the system.
• When attaching the coil to the plug socket, be sure
the seal is properly seated.
• Never adjust the screws which are sealed with red
paint, for any reason!
• For explosion-proof models, data from the conformity
certificate must also be complied with!
WARNING!
• Do not touch the coil during use as it becomes very
hot.
