S TEP 6

Level adjustment

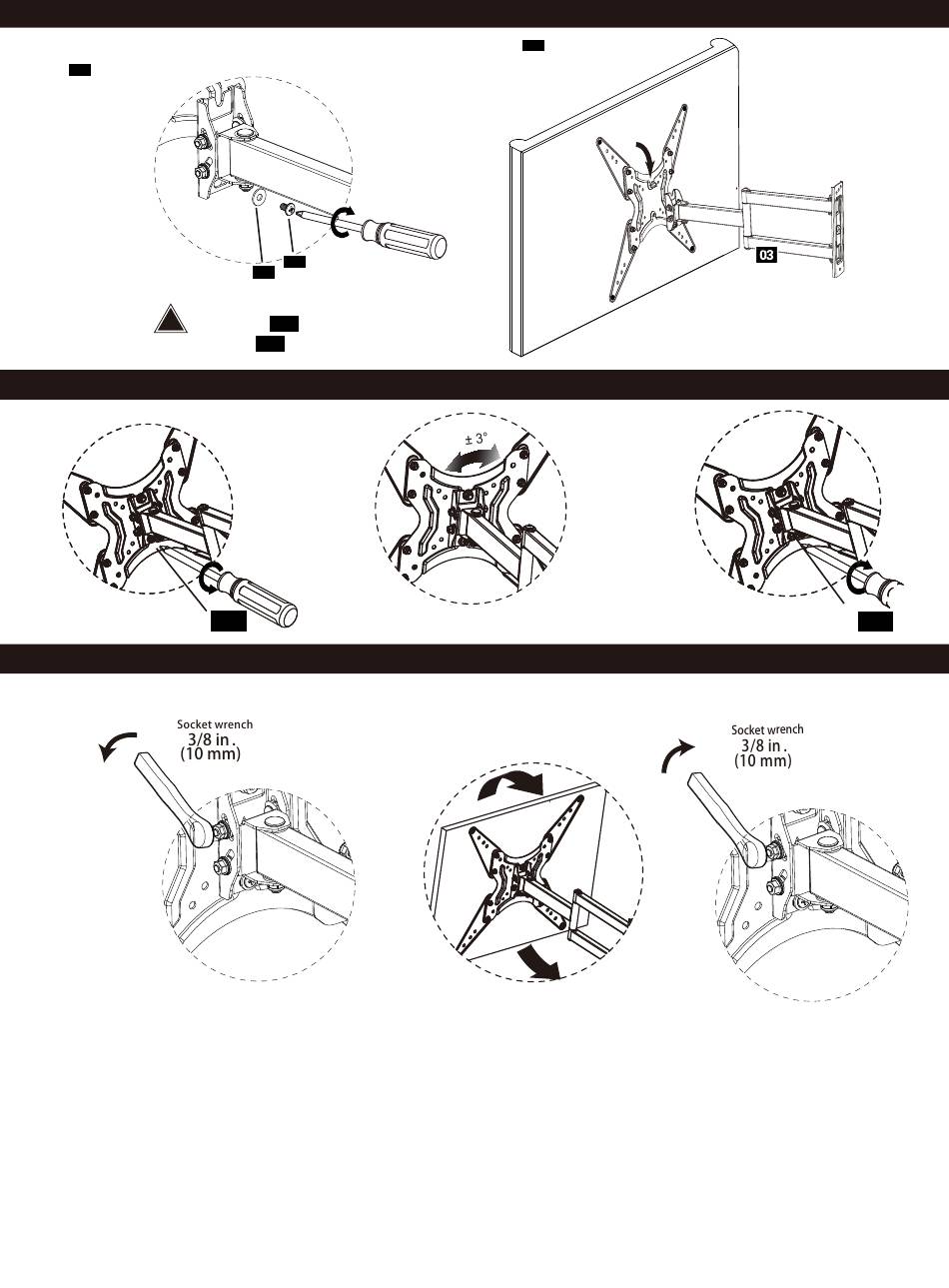

Place assembled part with TV onto arm and using Screwdriver, secure with screws
.
washers S2 saved from Step 1
!
Post Installation Level
If needed, the TV can be leveled +/- 3 degrees.
Loosen screw [S1]

Tilt adjustment

S TEP 7
Loosen four nuts on the head of the bracket, Adjust the TV to the desired tilting angle, then fasten the nuts to hold the tiltin g angle of the TV.
Loosen the nuts on both side
4
[S]
S1
[S]
S2
DO NOT forget to use
the screw [s1 ] and the
S1
washers [S2]
S2
S1
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
hesitate to contact us.
support@perlegear.de
S1 and
Level the TV
Tilt : +6.3°/-16.6°
4
4
Adjust the tilting angle
Tighten 2 screws [S1]
S1
se don't
