2. Description of preassembled systems with
AQC-D13
Esc

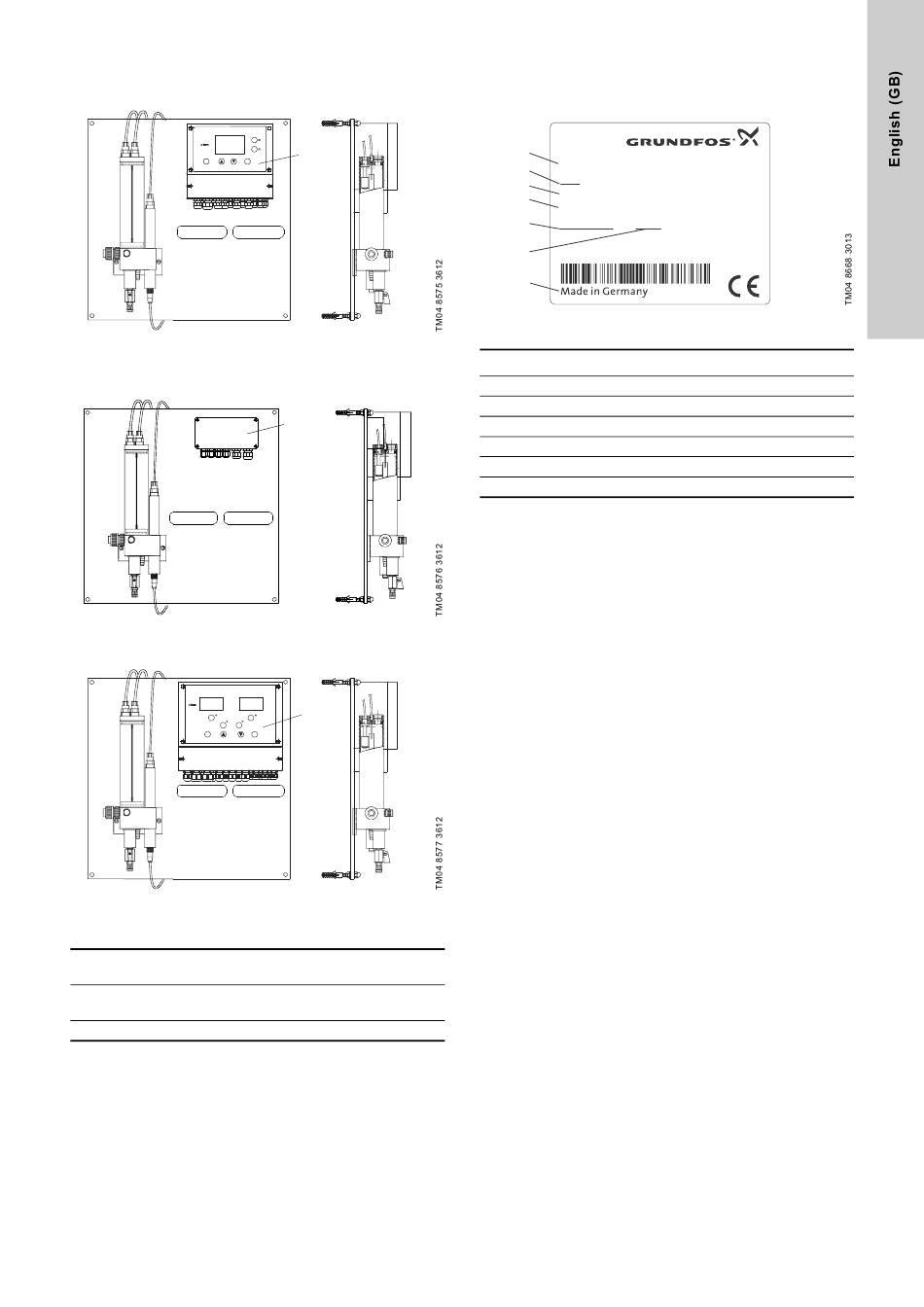

Fig. 1 AQC-D13 measuring cell with Conex DIA / DIS
measuring amplifier and controller
Fig. 2 AQC-D13 measuring cell with sensor interface
DIP
Select
Man Cal
Esc
Fig. 3 AQC-D13 measuring cell with DIP measuring amplifier
and controller
Conex DIA-1, Conex DIA-2, Conex DIA-2Q, Conex DIS-D
1
measuring amplifier and controller
Sensor interface for Conex DIA-1, Conex DIA-2, Conex
2
DIA-2Q, for panel-mounting
3 DIP measuring amplifier and controller
Man
Cal
1
OK
2
3
Select
OK

3. Identification

3.1 Nameplate, AquaCell

1
AQC-D11, P-AU-PCB-RCB, QS-T, H
2
314-306-10048
3
S/N: 07/44888
4
3,00 bar
95737669P11124563516
5
6
7
Fig. 4 Nameplate, AquaCell
Pos. Description
1 Type designation
2 Model
3 Serial number
5 Product number
6 Year and week code
7 Country of origin
5
