1.4 M.2_SSD (NGFF) Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2
Socket (M2_1) supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
Installing the M.2_SSD (NGFF) Module
B
No.
Nut Location
PCB Length
Module Type
14
2
1
A
1
2
A
B
6cm
8cm
Type2260
Type 2280

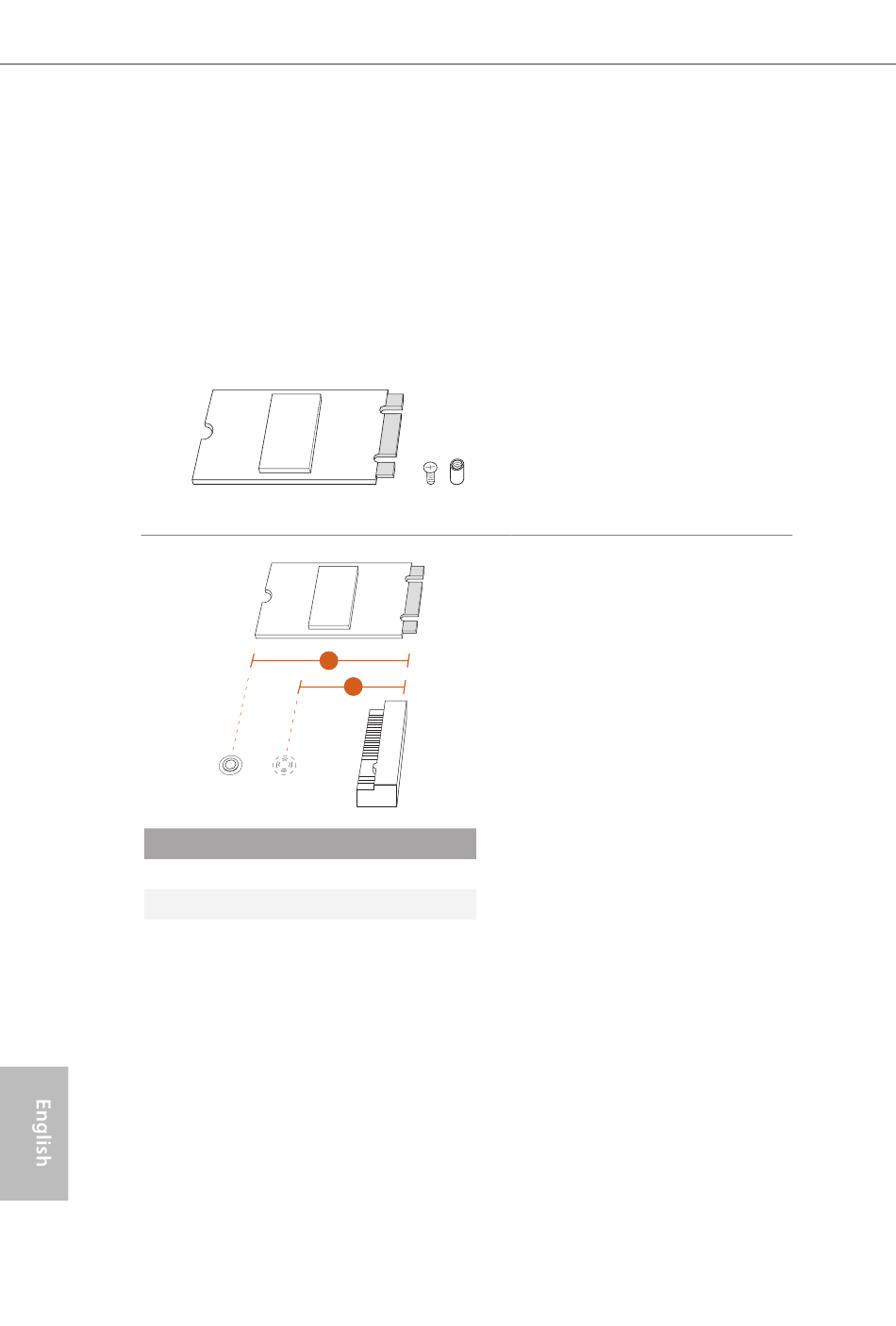

Step 1
This motherboard supports M.2_SSD
(NGFF) module type 2260 and 2280
only. Prepare a proper PCB lenth of
module, the screw and the standoff.
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
