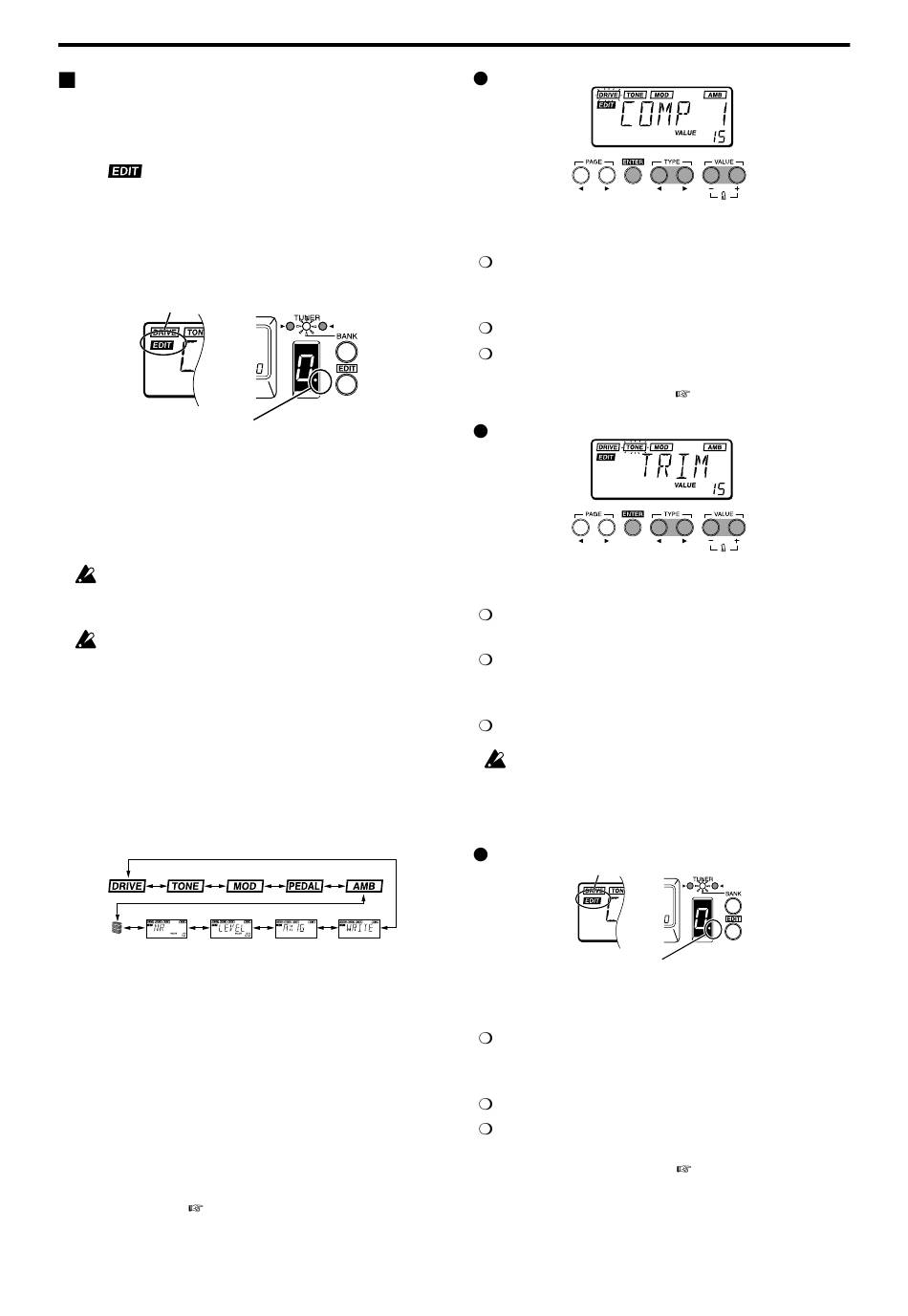

Edit mode

Edit mode
In Edit mode you can make detailed settings for each
effect, and modify the program name.
Press the EDIT/EXIT key and the LCD will indi-
cate " " showing that the AX1B is in Edit mode.
Press the EDIT/EXIT key once again and you will re-
turn to Play mode. You can edit the on/off setting of
each effect, and its parameters. When you edit a pro-
gram, the "." (decimal point) of the PROGRAM/NOTE
display will light.
lit in Edit mode
lit when you edit a Program
Edited programs will be lost if you change programs
or turn the power off before writing the edited pro-
gram. While editing, be sure to write your changes
frequently. For the Write procedure, refer to p.16
"WRITE".
It is not possible to switch modes when the unit
is bypassed (or muted). Defeat bypass (or
mute), and then switch the mode.
If you bypass (or mute) the AX1B in Edit mode,
it is not possible to perform editing operations.
Defeat bypass (or mute) before you continue
editing.

1. Selecting the parameter to edit

Use the PAGE [√ √ √ √ √ ] or [® ® ® ® ® ] key to select the
parameter that you wish to edit.
You can select effects and other parameter in
the order shown by the diagram below.
The currently selected effect display will blink.
Effects which are turned off cannot be edited. To
edit an effect which is turned off, use the PAGE
[√] or [®] key to select the effect, and then press
the ENTER key to turn on the effect.

2. Editing effect parameters

To edit a program, you can select an effect type Drive,
Tone, Modulation, Pedal, or Ambiance, and modify the
value of the parameter assigned to each effect type.
For the type of effects which can be selected and the
available values of the parameters, refer to the Effect
Parameter table (
14
p.50).

DRIVE

This provides effects which process the tonal char-
acter, such as compressor, overdrive, and distortion.
ENTER key: Turn the effect on/off (the type name
is displayed when on, and "OFF" when
off)
TYPE [√]/[®] keys: Select the effect type
VALUE [-]/[+] keys: Specify the value of the param-
eter assigned to each effect
type (

TONE

This is a five-band graphic equalizer used to adjust
the tonal character.
ENTER key: Equalizer on/off (the type name is dis-
played when on, and "OFF" when off)
TYPE [√]/[®] keys: Switch between TRIM (vol-
ume adjustment for the en-
tire equalizer) and frequency
VALUE [-]/[+] keys: Set the level or gain
Depending on the settings, the output volume
may be too low, or the sound may distort (clip).
If this occurs, adjust TRIM to an appropriate
volume level.

MOD

lit in Edit mode
lit when you edit a Program
This provides modulation-type effects such as cho-
rus, flanger, and phaser.
ENTER key: Turn the effect on/off (the type name
is displayed when on, and "OFF" when
off)
TYPE [√]/[®] keys: Select the effect type
VALUE [-]/[+] keys: Specify the value of the param-
eter assigned to each effect
type (
p.50)
p.51–52)
