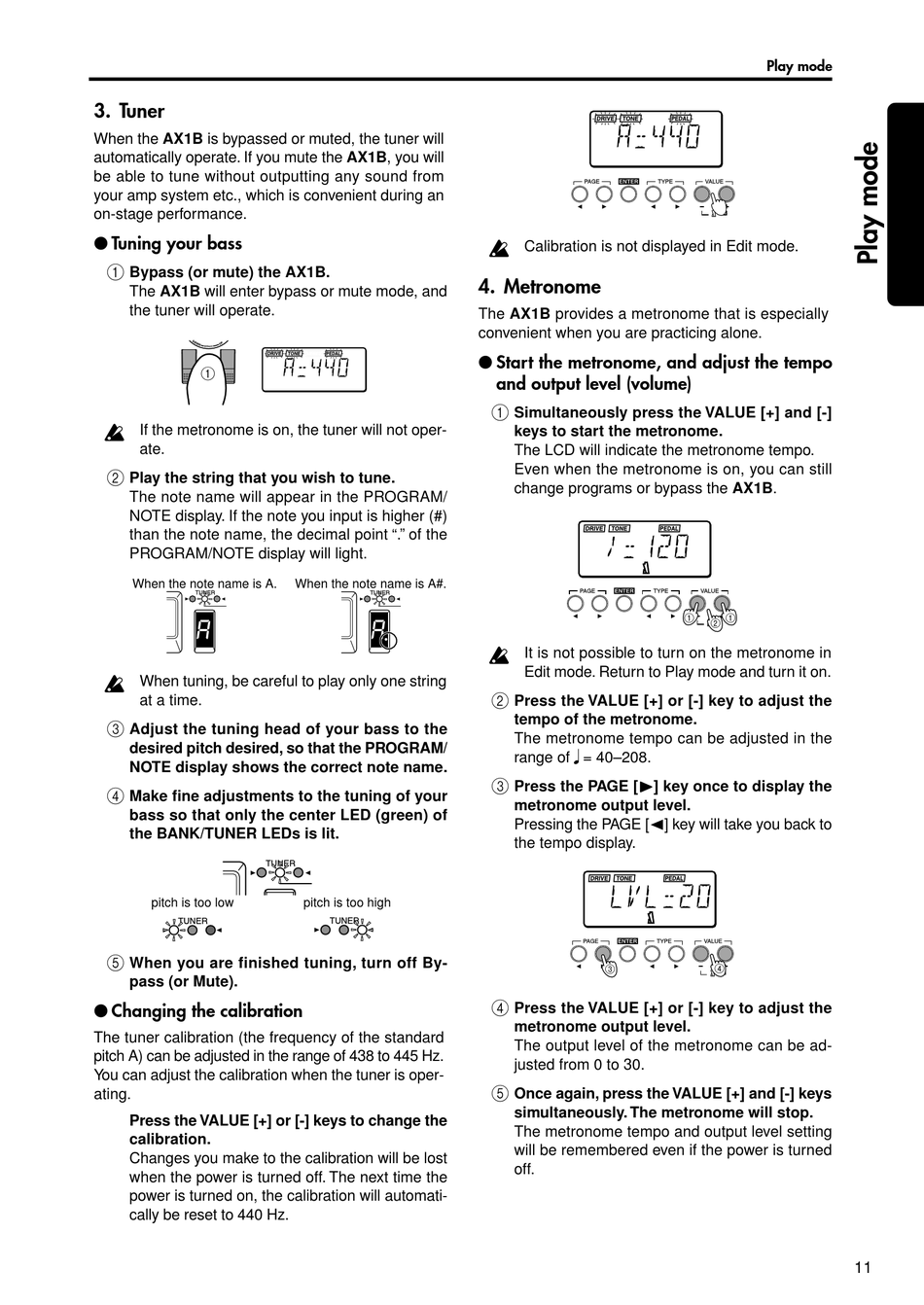

3. Tuner
When the AX1B is bypassed or muted, the tuner will
automatically operate. If you mute the AX1B, you will
be able to tune without outputting any sound from
your amp system etc., which is convenient during an
on-stage performance.
Tuning your bass
1
Bypass (or mute) the AX1B.
The AX1B will enter bypass or mute mode, and
the tuner will operate.
1
If the metronome is on, the tuner will not oper-
ate.
2
Play the string that you wish to tune.
The note name will appear in the PROGRAM/
NOTE display. If the note you input is higher (#)
than the note name, the decimal point "." of the
PROGRAM/NOTE display will light.
When the note name is A.
When tuning, be careful to play only one string
at a time.
3
Adjust the tuning head of your bass to the
desired pitch desired, so that the PROGRAM/
NOTE display shows the correct note name.
4
Make fine adjustments to the tuning of your
bass so that only the center LED (green) of
the BANK/TUNER LEDs is lit.
pitch is too low
5
When you are finished tuning, turn off By-
pass (or Mute).
Changing the calibration
The tuner calibration (the frequency of the standard
pitch A) can be adjusted in the range of 438 to 445 Hz.
You can adjust the calibration when the tuner is oper-
ating.
Press the VALUE [+] or [-] keys to change the
calibration.
Changes you make to the calibration will be lost
when the power is turned off. The next time the
power is turned on, the calibration will automati-
cally be reset to 440 Hz.
When the note name is A#.
pitch is too high
Calibration is not displayed in Edit mode.
4. Metronome
The AX1B provides a metronome that is especially
convenient when you are practicing alone.
Start the metronome, and adjust the tempo
and output level (volume)
1
Simultaneously press the VALUE [+] and [-]
keys to start the metronome.
The LCD will indicate the metronome tempo.
Even when the metronome is on, you can still
change programs or bypass the AX1B.
It is not possible to turn on the metronome in
Edit mode. Return to Play mode and turn it on.
2
Press the VALUE [+] or [-] key to adjust the
tempo of the metronome.
The metronome tempo can be adjusted in the
range of = 40–208.
3
Press the PAGE [® ® ® ® ® ] key once to display the
metronome output level.
Pressing the PAGE [√] key will take you back to
the tempo display.
3
4
Press the VALUE [+] or [-] key to adjust the
metronome output level.
The output level of the metronome can be ad-
justed from 0 to 30.
5
Once again, press the VALUE [+] and [-] keys
simultaneously. The metronome will stop.
The metronome tempo and output level setting
will be remembered even if the power is turned
off.
Play mode
1
1
2
4
11
