EN
ASSEMBLY
ATTENTION!
Pull the power cord out of the socket before assembling or disassembling the unit.
The fan may only be used with the front and rear protective mesh attached (1), (5).
1. Using parts (9, 10), assemble the stand support. Use four screws (included) to attach the telescopic support (7).
Use the plastic hood (8) to cover the connection.
2. Mount the unit body unit onto the support stand, use fixing screw (15) to fix the assembly.
3. Position the rear protective mesh (5) onto the drive unit so that the pins on the unit correspond with the holes in the
mesh.
Use the attachment nut (4) to secure the assembly.
4. Slide the fan (3) onto the motor shaft by positioning the grooves in the fan hub against the shaft tongues.
5. Turn the nut (2) counter-clockwise to fasten the fan.
6. Position the front wire mesh onto the rear mesh and slide on the fastening ring (14) so that
the mesh edges fit into the grooves on the inside of the ring.
7. Tighten the fastening ring with the screw.
OPERATING INSTRUCTIONS
Prior to using the unit verify the power cord is intact.
1. Place the unit on the floor securely so it cannot tip over.
2. Uncoil the power cord.
3. Tilt the fan as required (Fig. 1). You will hear several clicks that lock the fan in individual positions.
4. Adjust the desired height of the fan by loosening the stand nut (12) and extending the telescopic support (7) (Fig. 2).
5. Connect the power cord plug to the wall socket.
6. Use the mode selector to choose the required speed –
0 – OFF, 1 – LOW, 2 – MEDIUM, 3 – HIGH.
7. To turn fan oscillation off while the unit is running, pull out the oscillation selector (Fig. 3t). Pushing the selector in turns
oscillation on.
8. After use, turn the mode selector to 0 and unplug the unit from the mains.

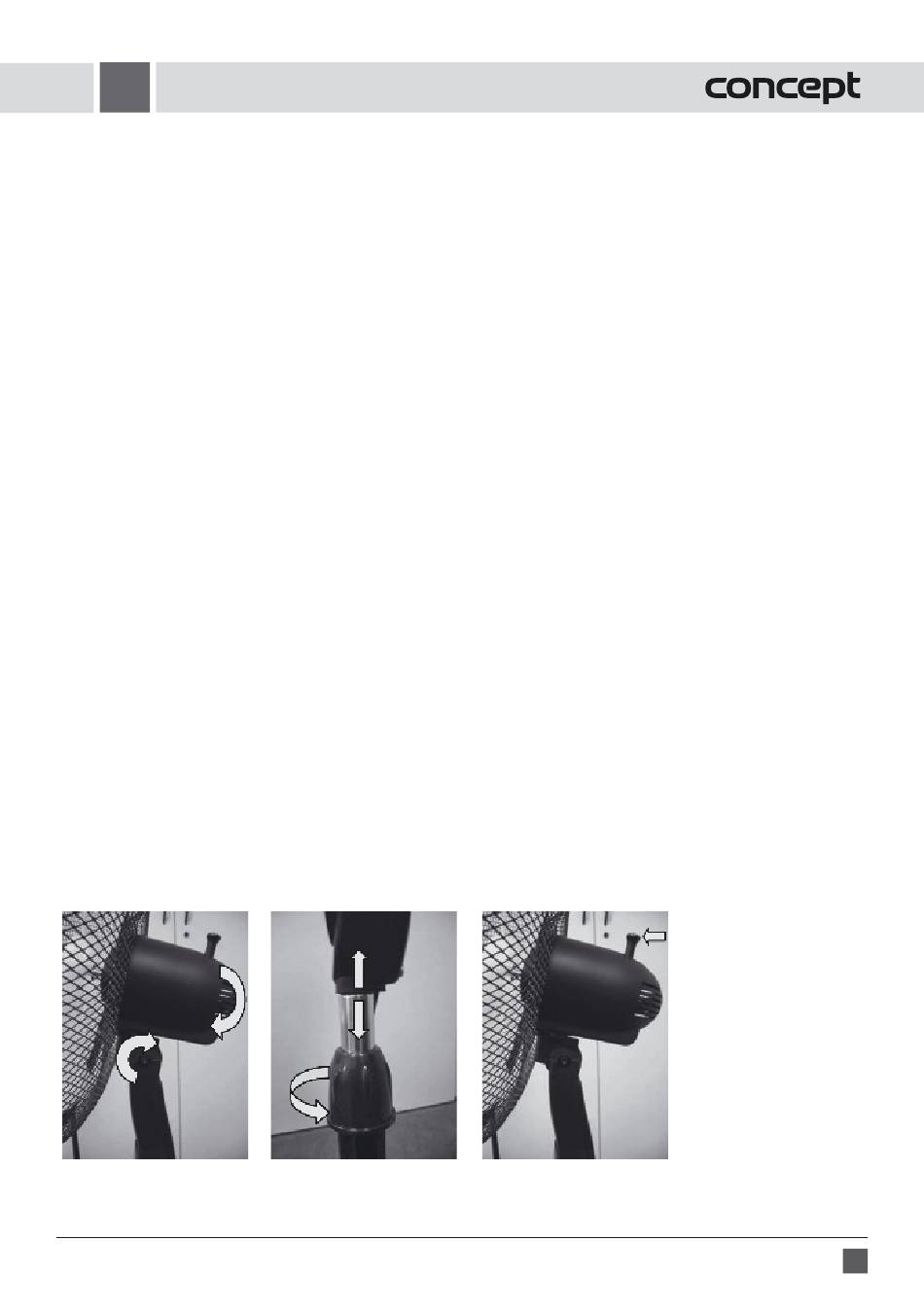

Fig. 1
VS5013
Fig. 2 Fig. 3
19
