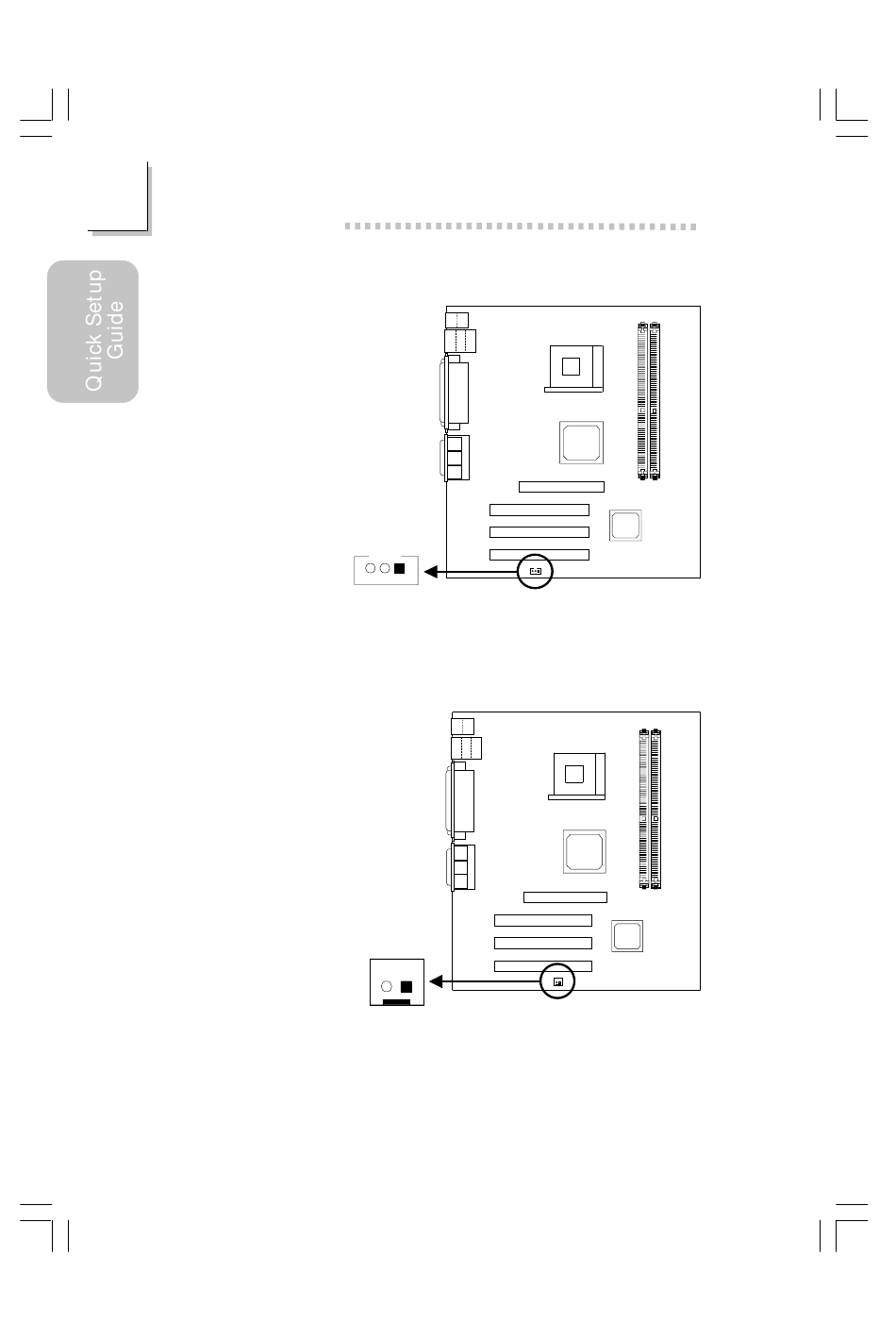

1.3.12 Wake-On-LAN Connector
1 +5VSB
2 Ground
3 WOL
The 5VSB power source of
your power supply must
support ≥720mA.
1.3.13 Wake-On-Ring Connector
1 Ground
2 RI#
If you are using a modem
add-in card, the 5VSB
power source of your
power supply
support ≥720mA.
18
3 2 1
Wake-On-LAN
(J5)
must
2 1
Wake-On-Ring
(J7)
