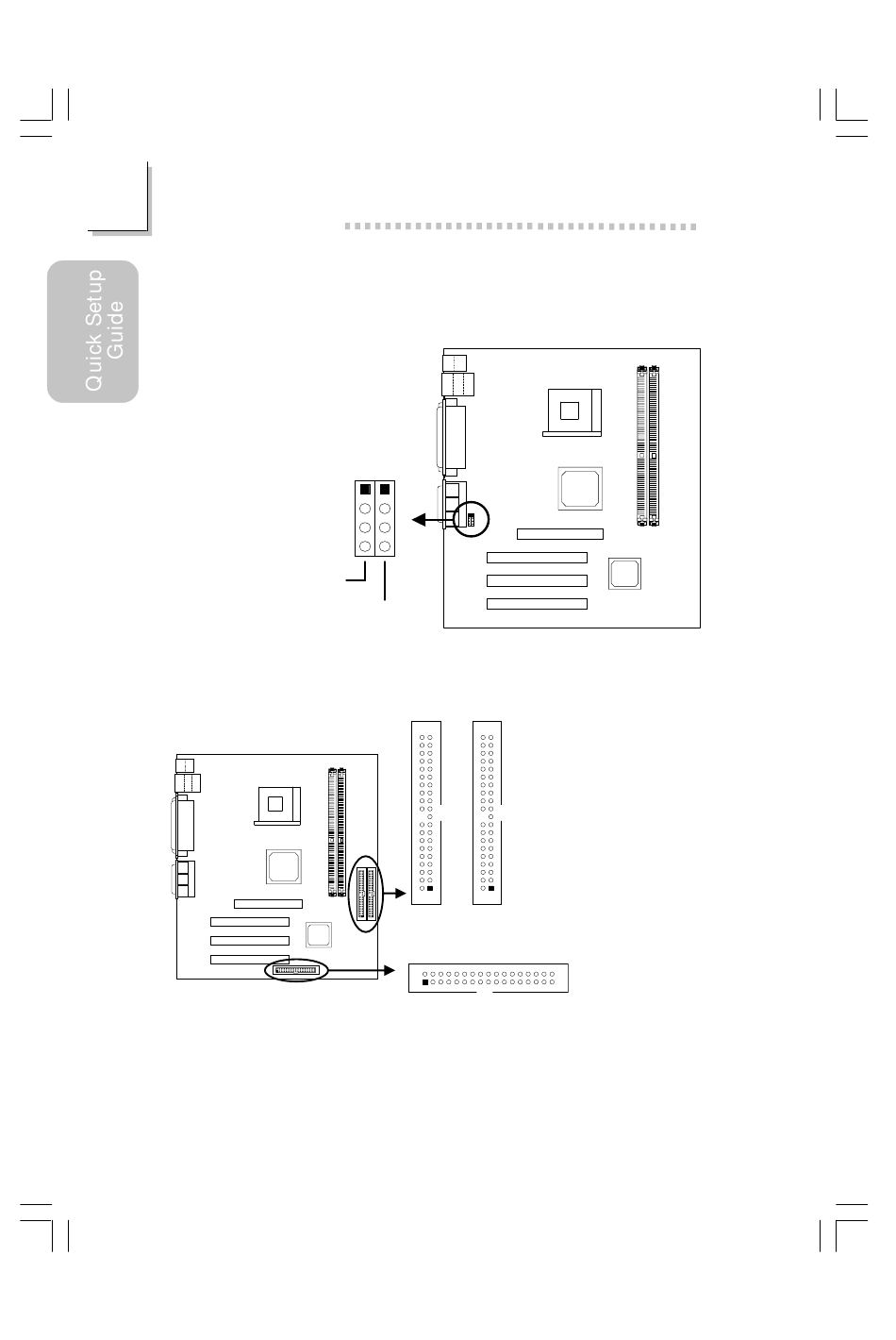

1.4 I/O Connectors
1.4.1 Internal Audio Connectors
AUX-in / CD-in
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
1.4.2 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
16
1
2
3
4
CD-in
(J19)
AUX-in
(J18)
40 39 40
2 1 2
IDE 1
(J1)
2
1
FDD (J6)
39
1
IDE 2
(J2)
34
33
