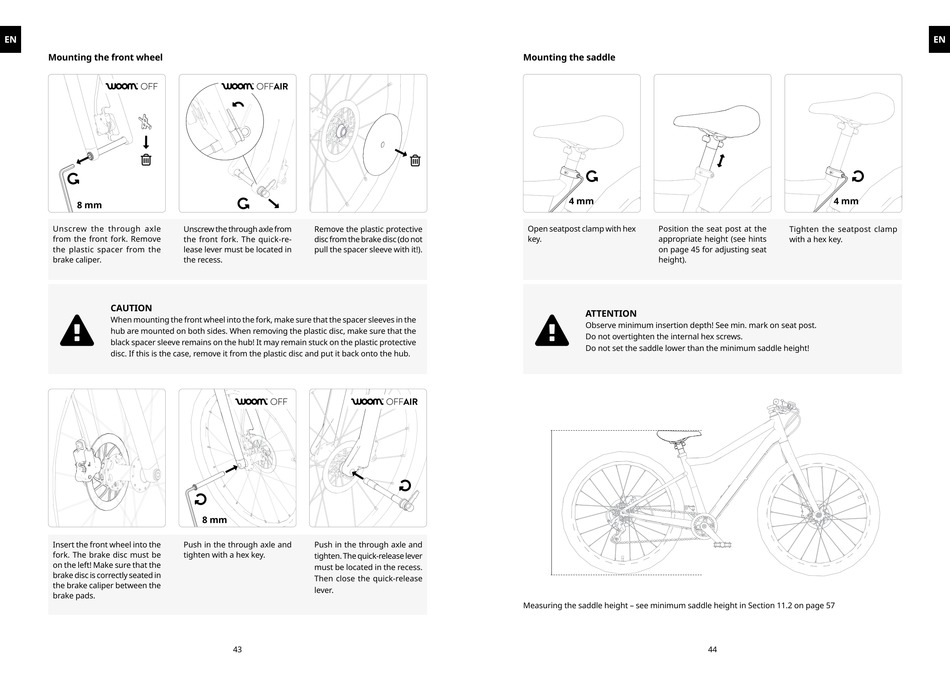

Mounting the front wheel

8 mm
Unscrew the through axle Unscrew the through axle from
from the front fork. Remove the front fork. The quick-re-
the plastic spacer from the lease lever must be located in
brake caliper. the recess.
CAUTION
 When mounting the front wheel into the fork, make sure that the spacer sleeves in the
hub are mounted on both sides. When removing the plastic disc, make sure that the
black spacer sleeve remains on the hub! It may remain stuck on the plastic protective
disc. If this is the case, remove it from the plastic disc and put it back onto the hub.
8 mm
Insert the front wheel into the Push in the through axle and
fork. The brake disc must be tighten with a hex key.
on the left! Make sure that the
brake disc is correctly seated in
the brake caliper between the
brake pads.
Remove the plastic protective
disc from the brake disc (do not
pull the spacer sleeve with it!).
Push in the through axle and
tighten. The quick-release lever
must be located in the recess.
Then close the quick-release
lever.
43

Mounting the saddle

4 mm
Open seatpost clamp with hex Position the seat post at the
key. appropriate height (see hints
on page 45 for adjusting seat
height).
ATTENTION

Observe minimum insertion depth! See min. mark on seat post.
Do not overtighten the internal hex screws.
Do not set the saddle lower than the minimum saddle height!
Measuring the saddle height – see minimum saddle height in Section 11.2 on page 57
4 mm
Tighten the seatpost clamp
with a hex key.
44
