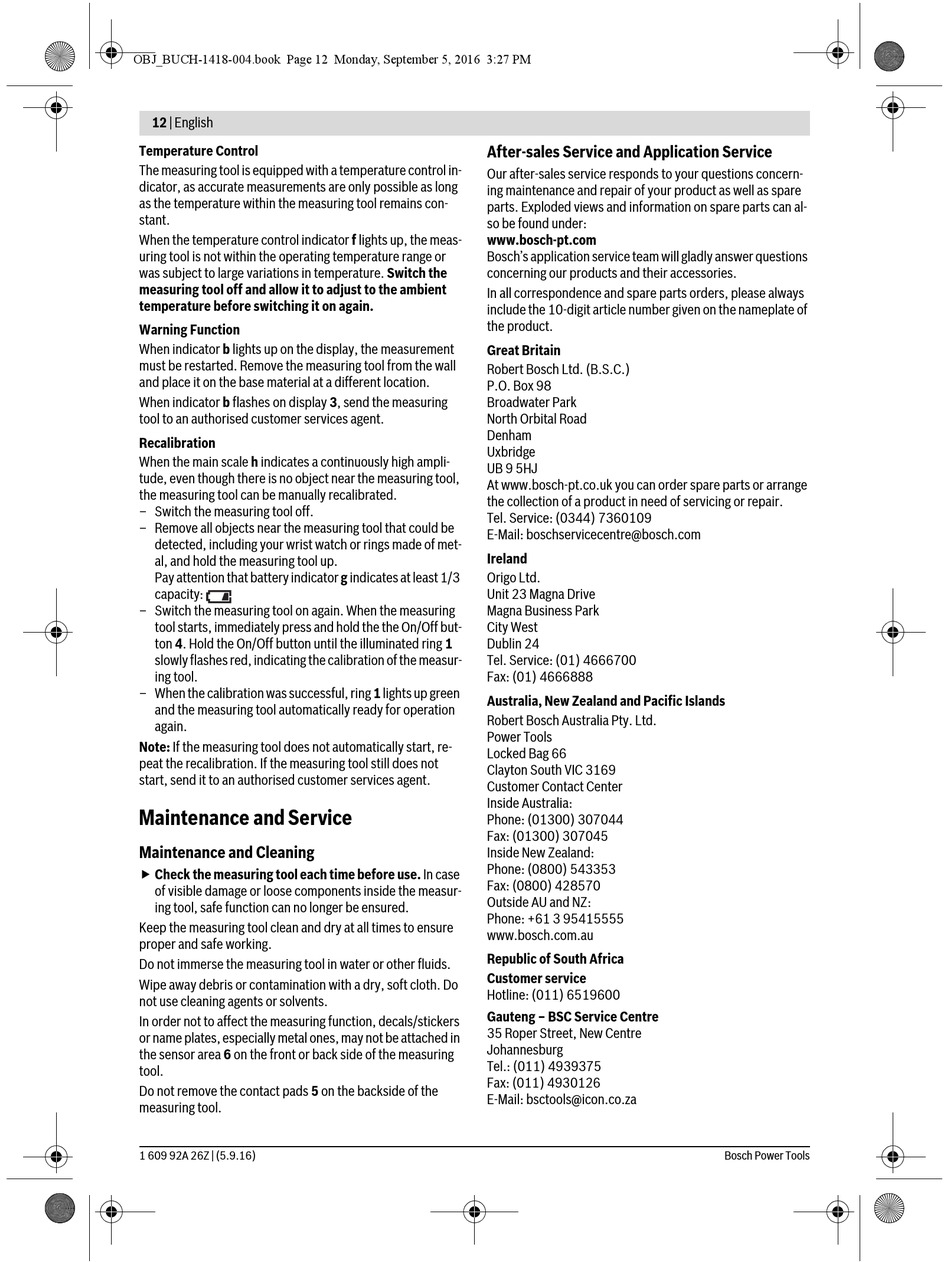

12 | English
Temperature Control
The measuring tool is equipped with a temperature control in-
dicator, as accurate measurements are only possible as long
as the temperature within the measuring tool remains con-
stant.
When the temperature control indicator f lights up, the meas-
uring tool is not within the operating temperature range or
was subject to large variations in temperature. Switch the
measuring tool off and allow it to adjust to the ambient
temperature before switching it on again.
Warning Function
When indicator b lights up on the display, the measurement
must be restarted. Remove the measuring tool from the wall
and place it on the base material at a different location.
When indicator b flashes on display 3, send the measuring
tool to an authorised customer services agent.
Recalibration
When the main scale h indicates a continuously high ampli-
tude, even though there is no object near the measuring tool,
the measuring tool can be manually recalibrated.
– Switch the measuring tool off.
– Remove all objects near the measuring tool that could be
detected, including your wrist watch or rings made of met-
al, and hold the measuring tool up.
Pay attention that battery indicator g indicates at least 1/3
capacity:
– Switch the measuring tool on again. When the measuring
tool starts, immediately press and hold the the On/Off but-
ton 4. Hold the On/Off button until the illuminated ring 1
slowly flashes red, indicating the calibration of the measur-
ing tool.
– When the calibration was successful, ring 1 lights up green
and the measuring tool automatically ready for operation
again.
Note: If the measuring tool does not automatically start, re-
peat the recalibration. If the measuring tool still does not
start, send it to an authorised customer services agent.

Maintenance and Service

Maintenance and Cleaning

 Check the measuring tool each time before use. In case
of visible damage or loose components inside the measur-
ing tool, safe function can no longer be ensured.
Keep the measuring tool clean and dry at all times to ensure
proper and safe working.
Do not immerse the measuring tool in water or other fluids.
Wipe away debris or contamination with a dry, soft cloth. Do
not use cleaning agents or solvents.
In order not to affect the measuring function, decals/stickers
or name plates, especially metal ones, may not be attached in
the sensor area 6 on the front or back side of the measuring
tool.
Do not remove the contact pads 5 on the backside of the
measuring tool.
1 609 92A 26Z | (5.9.16)

After-sales Service and Application Service

Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Bosch's application service team will gladly answer questions
concerning our products and their accessories.
In all correspondence and spare parts orders, please always
include the 10-digit article number given on the nameplate of
the product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
