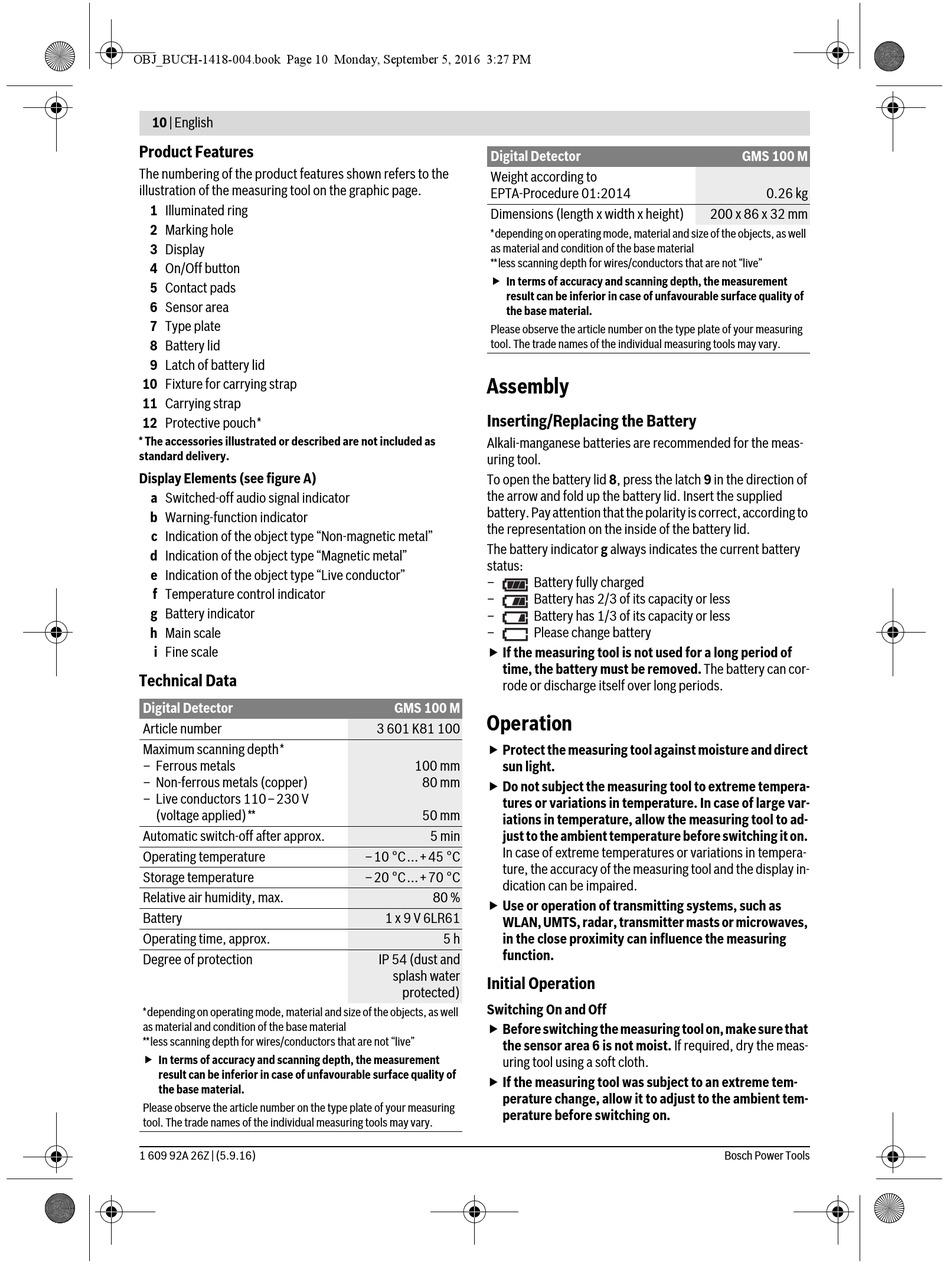

10 | English
Product Features
The numbering of the product features shown refers to the
illustration of the measuring tool on the graphic page.
1 Illuminated ring
2 Marking hole
3 Display
4 On/Off button
5 Contact pads
6 Sensor area
7 Type plate
8 Battery lid
9 Latch of battery lid
10 Fixture for carrying strap
11 Carrying strap
12 Protective pouch*
* The accessories illustrated or described are not included as
standard delivery.
Display Elements (see figure A)
a Switched-off audio signal indicator
b Warning-function indicator
c Indication of the object type "Non-magnetic metal"
d Indication of the object type "Magnetic metal"
e Indication of the object type "Live conductor"
f Temperature control indicator
g Battery indicator
h Main scale
i Fine scale
Technical Data
Digital Detector
Article number
Maximum scanning depth*
– Ferrous metals
– Non-ferrous metals (copper)
– Live conductors 110–230 V
(voltage applied)**
Automatic switch-off after approx.
Operating temperature
Storage temperature
Relative air humidity, max.
Battery
Operating time, approx.
Degree of protection
*depending on operating mode, material and size of the objects, as well
as material and condition of the base material
**less scanning depth for wires/conductors that are not "live"
 In terms of accuracy and scanning depth, the measurement
result can be inferior in case of unfavourable surface quality of
the base material.
Please observe the article number on the type plate of your measuring
tool. The trade names of the individual measuring tools may vary.
1 609 92A 26Z | (5.9.16)
Digital Detector
Weight according to
EPTA-Procedure 01:2014
Dimensions (length x width x height)
*depending on operating mode, material and size of the objects, as well
as material and condition of the base material
**less scanning depth for wires/conductors that are not "live"
 In terms of accuracy and scanning depth, the measurement
result can be inferior in case of unfavourable surface quality of
the base material.
Please observe the article number on the type plate of your measuring
tool. The trade names of the individual measuring tools may vary.
Assembly
Inserting/Replacing the Battery
Alkali-manganese batteries are recommended for the meas-
uring tool.
To open the battery lid 8, press the latch 9 in the direction of
the arrow and fold up the battery lid. Insert the supplied
battery. Pay attention that the polarity is correct, according to
the representation on the inside of the battery lid.
The battery indicator g always indicates the current battery
status:
– Battery fully charged
– Battery has 2/3 of its capacity or less
– Battery has 1/3 of its capacity or less
– Please change battery
 If the measuring tool is not used for a long period of
time, the battery must be removed. The battery can cor-
rode or discharge itself over long periods.
GMS 100 M
Operation
3 601 K81 100
 Protect the measuring tool against moisture and direct
sun light.
100 mm
80 mm
 Do not subject the measuring tool to extreme tempera-
tures or variations in temperature. In case of large var-
50 mm
iations in temperature, allow the measuring tool to ad-
just to the ambient temperature before switching it on.
5 min
In case of extreme temperatures or variations in tempera-
–10 °C...+45 °C
ture, the accuracy of the measuring tool and the display in-
–20 °C...+70 °C
dication can be impaired.
80 %
 Use or operation of transmitting systems, such as
1 x 9 V 6LR61
WLAN, UMTS, radar, transmitter masts or microwaves,
in the close proximity can influence the measuring
5 h
function.
IP 54 (dust and
splash water
Initial Operation
protected)
Switching On and Off
 Before switching the measuring tool on, make sure that
the sensor area 6 is not moist. If required, dry the meas-
uring tool using a soft cloth.
 If the measuring tool was subject to an extreme tem-
perature change, allow it to adjust to the ambient tem-
perature before switching on.
GMS 100 M
0.26 kg
200 x 86 x 32 mm
