assembly (Bell/Crank Handle and Sliding Tray) and operation. The RollModel
Machine will cut multiple sheets of material at a time from a wide variety of
products. See the Materials Guide (pages 11 and 12) for specifics. The RollModel
Machine applies the necessary pressure to steel-rule dies that cut through the
material. The sharp cutting blade of the die is surrounded by rubber to protect
fingers and to eject the material that has been cut. When not in use, place the dies
(decorative shapes, letters and numbers sold separately) in the Die Storage Racks
(sold separately). See Helps and Hints for a suggested storage method (page 7).

Machine Placement

Lift the RollModel Machine by its molded handholds. Place the machine on a
clean, flat, sturdy, non-skid surface at a height and position that are comfortable
for the user. No part of the machine should hang over the edge of the work
surface.
Setting Up RollModel Machine

Parts included:

Item:
(1) Bell/Crank Handle
(2) Lock Washer
(3) Screw
(4) Screw Cap Cover
(5) Sliding Tray

Introduction

Machine arrives with all tools and parts necessary for full
Qty:
1
5
6
4
1
Square Roller Shaft
Tools required:
3mm Allen Wrench (Included)

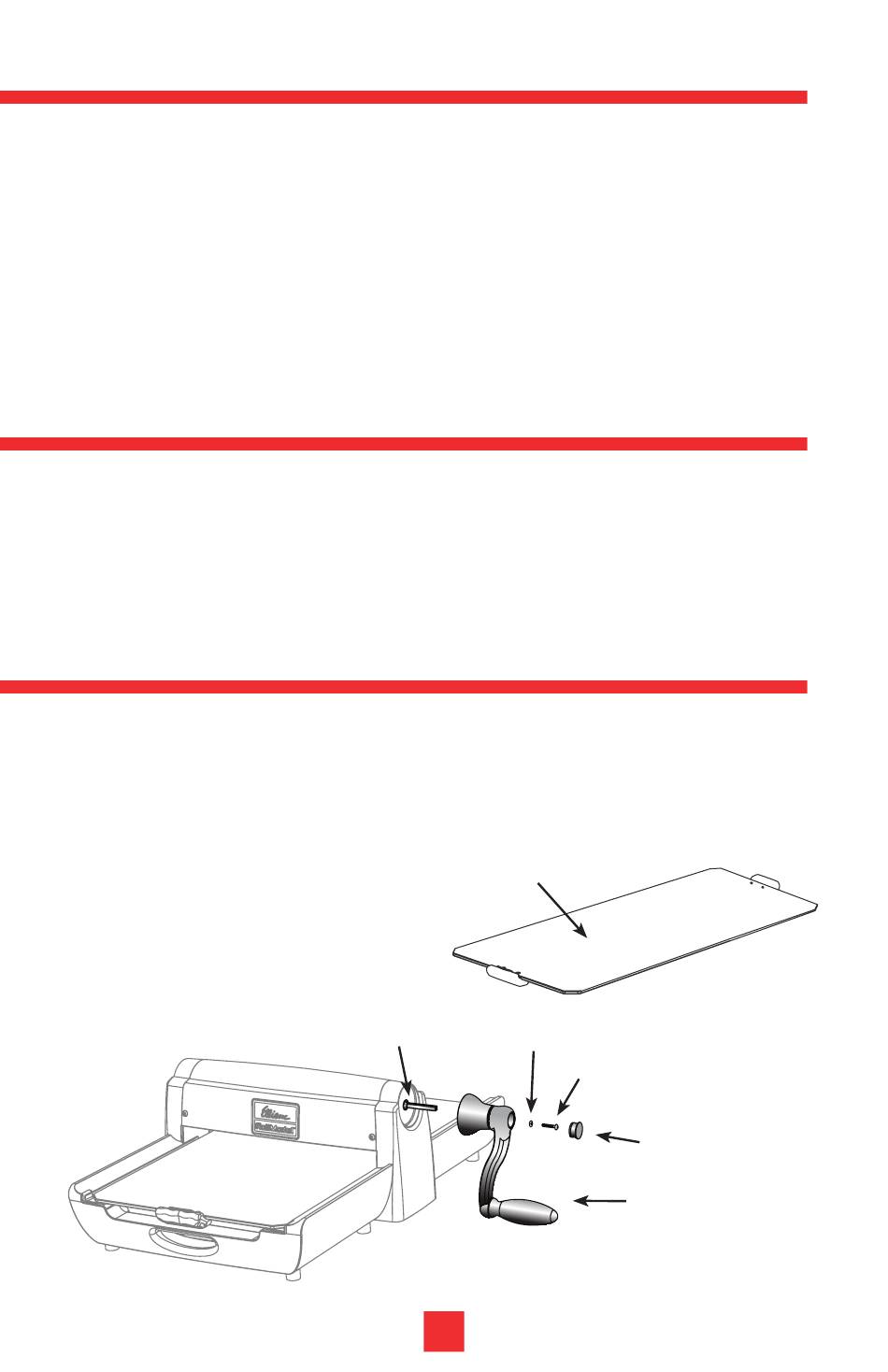

(5) Sliding Tray
Lock Washer (2)
Screw (3)
4
Screw Cap Cover (4)
Bell/Crank Handle (1)
