Installation Instructions

INSTALL WALL PLATE

Select one of the following options to install the wall
plate:

• Lag Bolt Installation Instructions (Option A)

• Concrete Installation Instructions (Option B)
• Steel Stud Wall Installation Instructions (Option C)
Lag Bolt Installation Instructions (Option A)
Install the wall plate as follows:
WARNING: It is the responsibility of the installer to verify
that the structure to which the mount is
anchored will safely support five times the
combined load of all attached components and
equipment.
1. Determine a suitable mounting location and lift the wall
plate (10) into place (refer to "WALL MOUNT PLATE
PARTS" on page 3).
2. Using a small nail or screw (not provided) in the center
hole, lightly support the wall plate at the mounting loca-
tion.
3. Level the wall plate (10) and drill pilot holes for anchoring
the wall plate. If drilling into wood studs, use a 15/64"
drill bit.
4. Using four 5/16" lag bolts (80) and 5/16" washers (90),
install the wall plate on the wall.
5. Slide the latches to the outside.

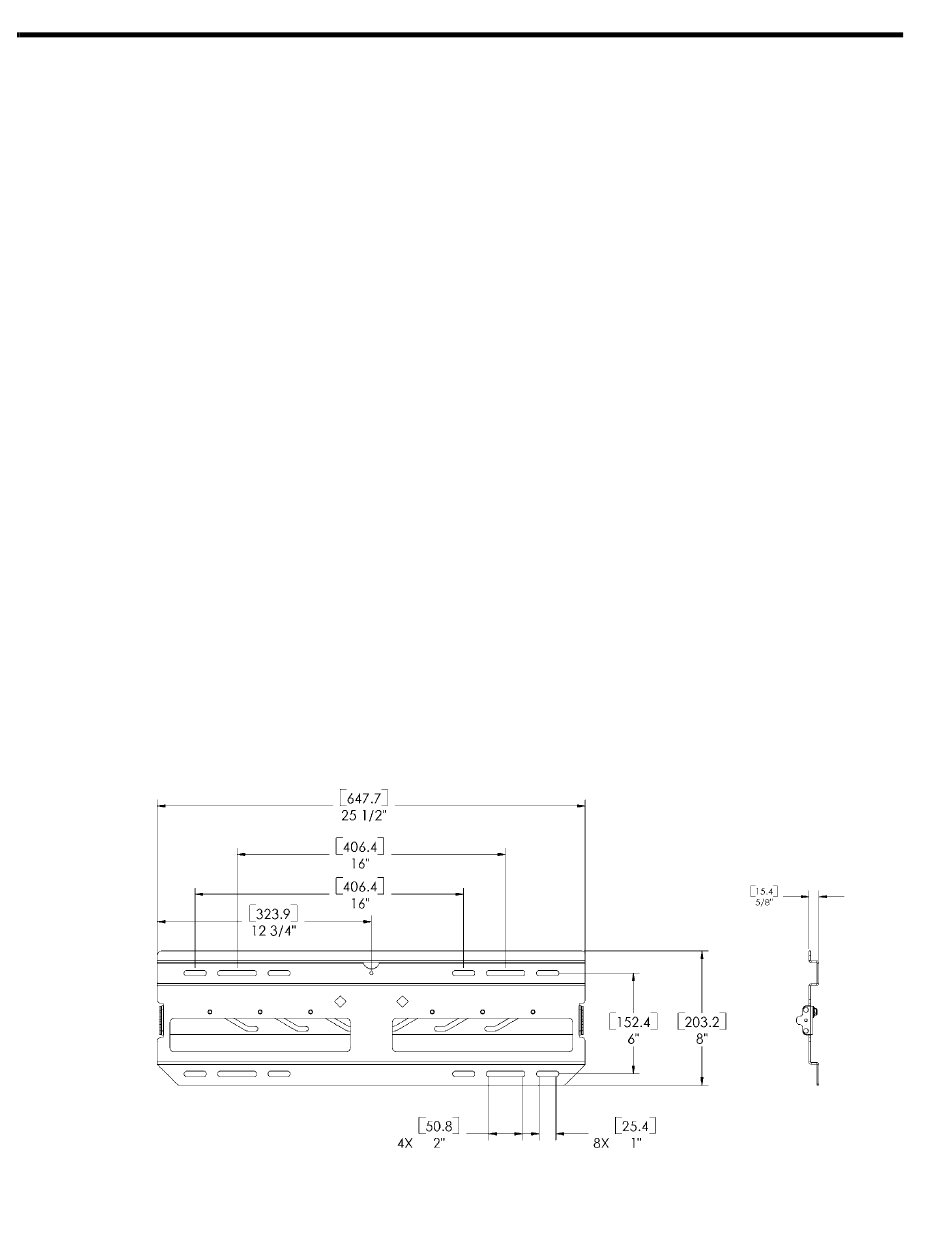

Figure 3. Lag Bolt Installation
