LSA1U/MSP-DCCLSA1U/MSP-DCCLSA2

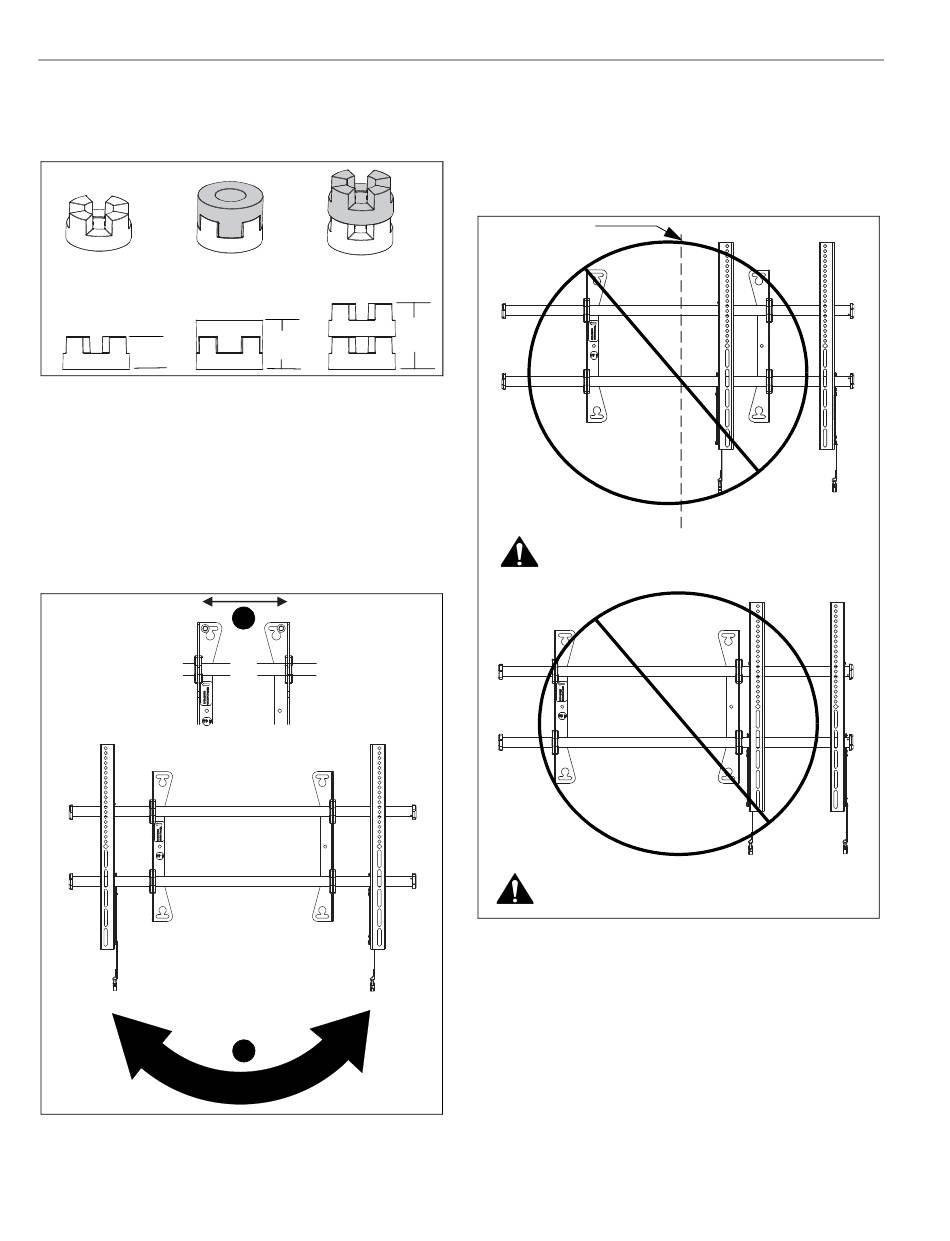

NOTE:
The nesting spacers (MA) may be used separately, or
put two together in different configurations to create
different size spacers. (See Figure 5)
(Nested)
(Single)
0.375
[9.5]

Figure 5

Switching Interface Brackets (Optional)

If an installation situation makes adjusting the location of
interface brackets necessary, there are several options.
1. The wall brackets may be adjusted side to side at the point
of attachment. (See Figure 6)
2. The location of the left and right interface brackets (T and U)
may be switched. (See Figure 6)
Figure 6
8
(Stacked)
0.750
0.563
[19.1]
[14.3]
1
2

Attaching Screen to Wall Mount

NOTE:
NEVER place both interface brackets (T and U) to one

side of the wall mount center line! (See Figure 7)

NOTE:
Do NOT allow both interface brackets (T and U) to be

located on same side of wall bracket. (See Figure 7)

Center Line (CL)
NEVER place both interface brackets to one
side of the wall mount center line (CL)!
Both interface brackets must NEVER be located
to one side of the wall brackets!
Figure 7
Installation Instructions
