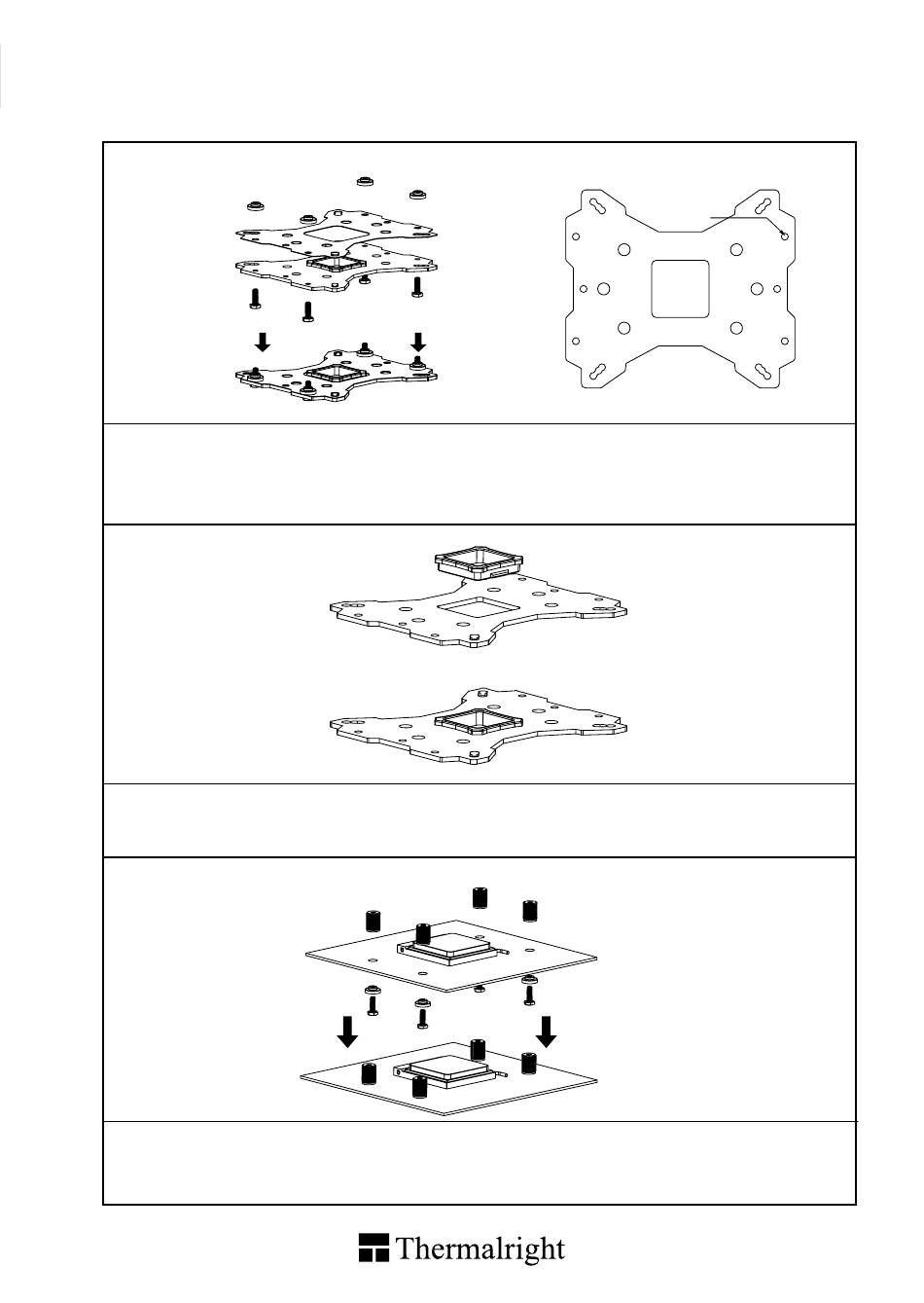

Installation Instructions:
Step 1:
Step 1 : Backplate Installation
Choose the platform (AMD) you are in use. Make four M3L10 Screw Pillars go through the Metal Back
Plate and the Mylar film from bottom towards top. And then place the Metal Back Plate on the table. Put
the four Washers (for AMD) around the Screw Pillars.
Step 2:
Step 2 : Back Plate Cap
Note: When installing on an AMD platform, please first insert the Back Plate Cap into the opening on
the Metal Back plate, make sure you have the Cap facing downwards.
Step 3:
Step 1 : Install the four screw pillars.
Take one M3L10 screw and put one washer for AMD around the screw pillar. Snap it through one of
holes around CPU socket from bottom towards top. Cap the screw pillar with the screw nut included and
then tighten up. Now repeat this installation for the other three screw pillars in a criss-cross pattern.
7
4
2
1
3
AMD
