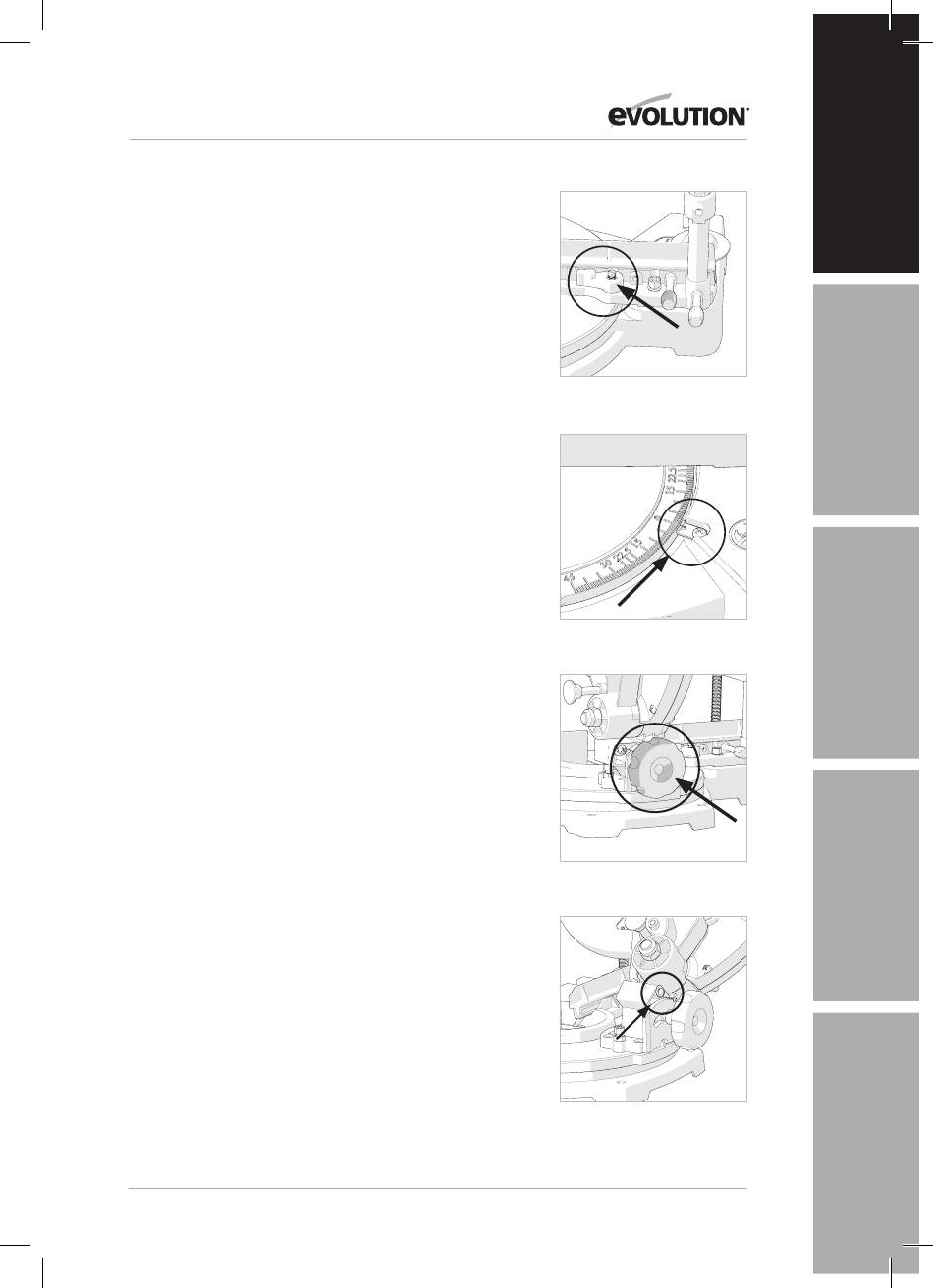

• Loosen the Mitre Locking Screw (Fig. 19) by turning
it anti-clockwise.
• Turn the rotary table to the desired angle. A mitre angle
protractor scale is incorporated into the rotary table
to aid setting.
• Tighten the Mitre Locking Screw when the desired
angle is achieved.
Note: It is important to tighten the Mitre Locking
Screw even if a Positive Stop has been selected.
Note: The Mitre Locking Screw has a sprung loaded
repositionable lever. Repositioning may be necessary
to avoid interference with other parts of the machine
when certain mitre angles are selected.
To reposition:
• Lift up the lever and turn to a convenient position.
• Release the lever.
BEVEL CUTTING TILTING THE CUTTING HEAD
A bevel cut (Fig. 20) is made with the rotary table set at 0
Note: It may be necessary to adjust the upper section of
the Fence to provide clearance for the moving Cutting Head.
The Cutting Head can be tilted from the normal 0
(perpendicular position) to a maximum angle of 45
from the perpendicular to the left hand side only.
To tilt the Cutting Head to the left:
• Loosen the bevel locking screw. (Fig. 21a)
• Tilt the Cutting Head to the required angle. A protractor scale
is provided as an aid to setting. (Fig 21b)
• Tighten the bevel locking screw when the desired angle has
been selected.
Fig. 19
Fig. 20
mitre.
0
0
0
Fig. 21A
Fig. 21B
